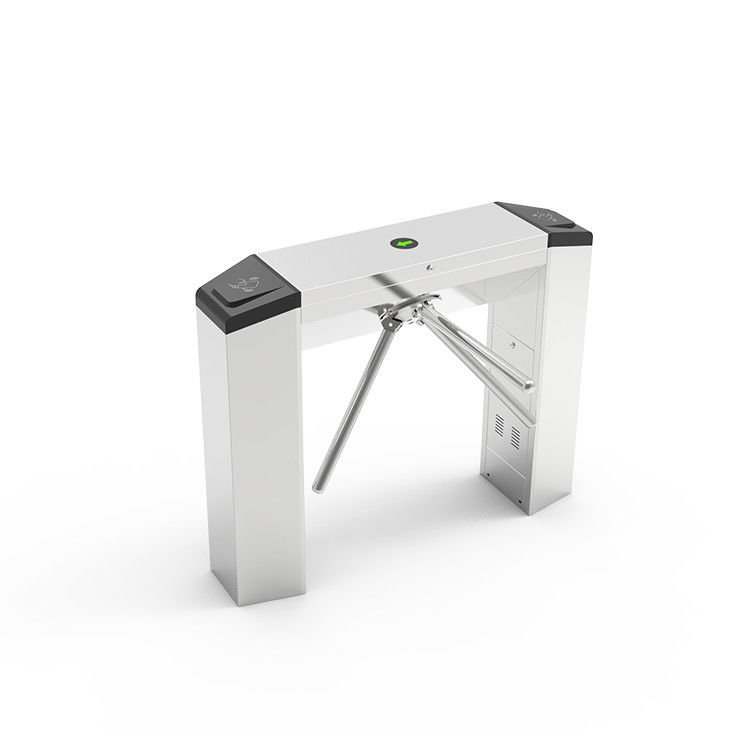

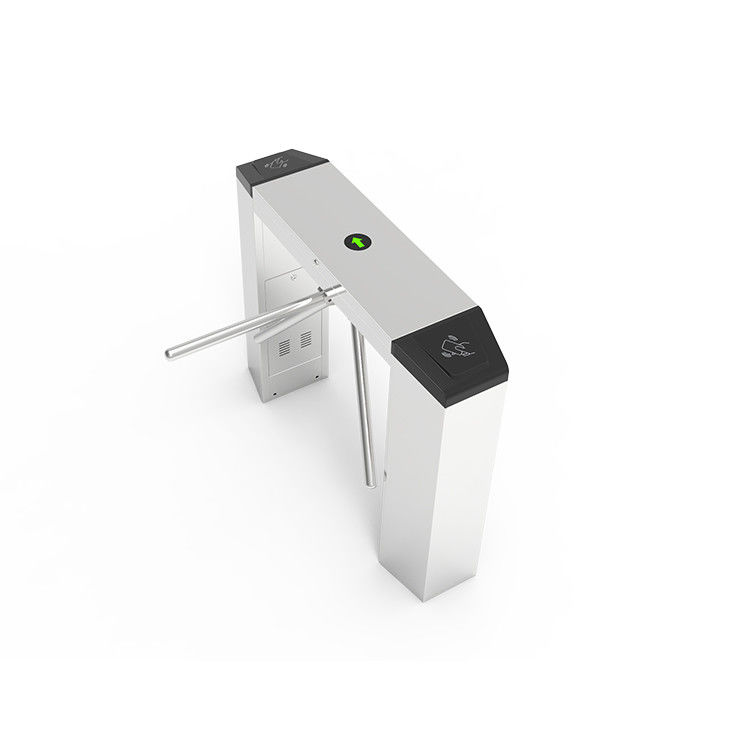

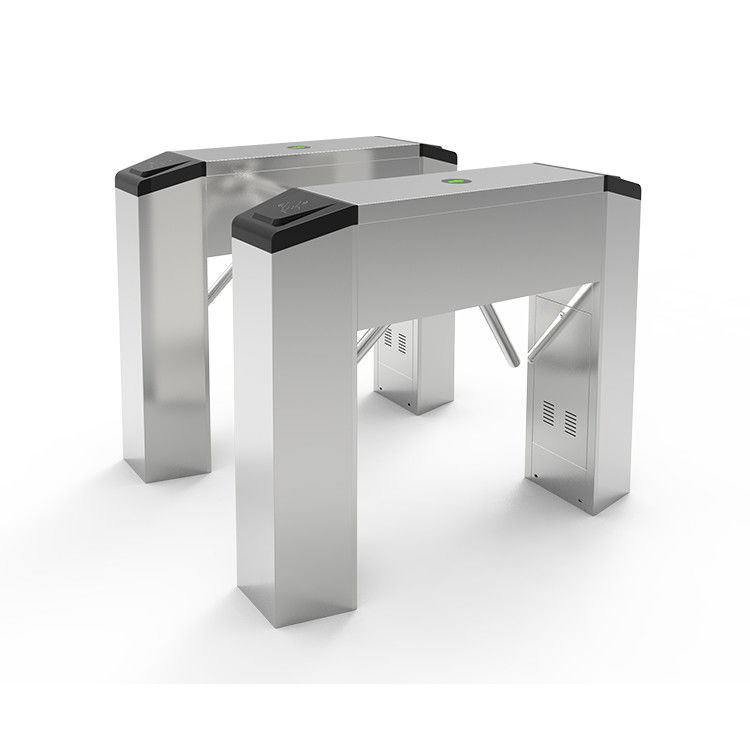

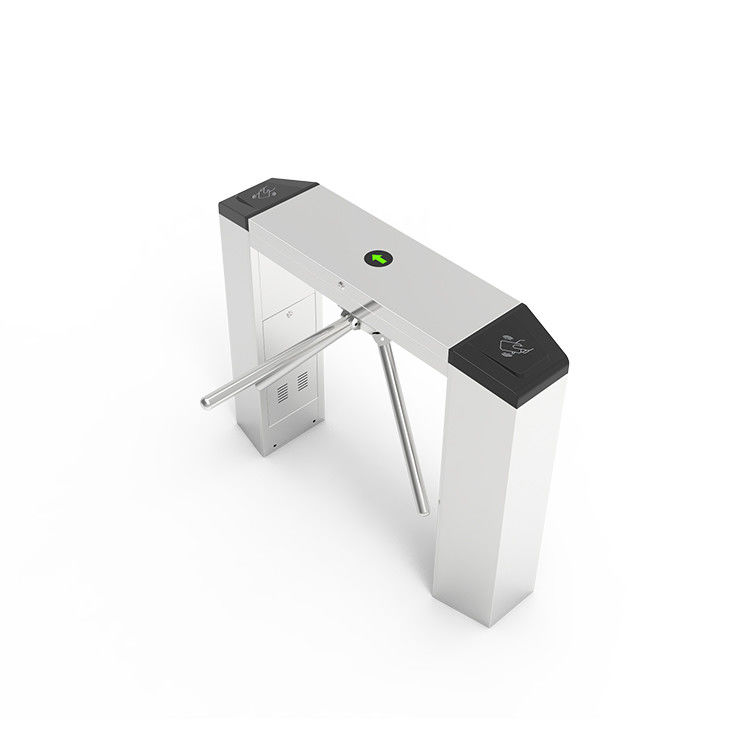

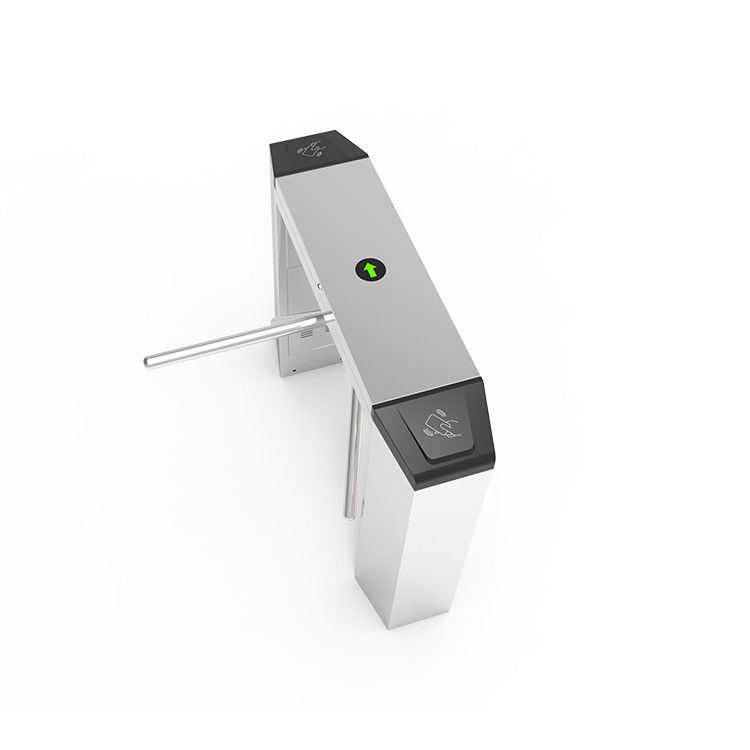

AG-PX11122802 Automatic Tripod Turnstile Entrance Gates Tripod Barrier
AG-PX11122802 304 stainless steel tripod turnstile is an innovative access control system frequently used in places like subway stations, bus terminals, airports, picturesque locations, and other places that need reliable access control. One person may pass through the turnstile at a time thanks to its three arms' ability to rotate a full 120 degrees.
The turnstile is constructed of 304 stainless steel, which is highly resistant to corrosion and durable in harsh outdoor conditions. It has a bi-directional control mechanism that can easily block unwanted entry while offering dependable access management. Moreover, the turnstile contains an anti-tailgating feature that can successfully stop numerous people from passing through with the same access card.
The turnstile is powered by a high-precision mechanism that can function without interruption for an extended period of time and recognize valid access cards or tickets swiftly and correctly. A number of access control systems, including IC card, ID card, barcode, and fingerprint recognition systems, can be linked to the turnstile.
The turnstile also includes a user-friendly interface that is both functional and aesthetically beautiful. The turnstile is equipped with a range of LED indicators that may display the turnstile's status in real-time and give users clear instructions.
The 304 stainless steel tripod turnstile is an excellent access control device that offers secure and effective entry control for a variety of public locations. It is the perfect option for access control systems due to its high performance, robustness, and attractive design.
Please check in this youtube link for turnstile video: https://youtube.com/shorts/tOEEtEs1pFE?feature=share
Specification
| Specification | |
| Product Size | 1200*280*980mm |
| Material | SUS 304 stainless steel |
| Thickness | Top:1.2mm+body1.0mm |
| Pass Width | 550mm |
| Passage Direction | Single directional/Bi-directional |
| Throughput Rate | 30p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 3A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Driving Mode | Semi-auto |
| Indication | LED direction indication |
Details
Functionality
AG-PX11122802 Tripod Turnstile
1, which is a gate that can be used both inside and outside.
2, The gate is compatible with face recognition technology, IC readers, RFID readers, and QR readers.
3, There are options for stainless steel in various thicknesses.
4, There are options for manual tripod turnstile too.
5. A customized turnstile gate service is offered.
Projects
Customization Available
In order to make the gate more appropriate for your projects, we may also change its settings or design to fit various circumstances for you. Our sales team is always available to you.
