Office Building Speed Gate Turnstile

Place of Origin China
Brand Name HPT
Certification FCC; CE; ISO
Model Number AG-TX68162302
Minimum Order Quantity 1
Packaging Details film + EPE + Carton + Wooden Case
Supply Ability 1~10 units, 3~7 working days; 10~30 units, 10~15 working days; 30~50+ 15~20 working days.

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fast Speed Lane Gate Dimension Single Core:1600*231*980mm; Dual Core: 1600*312*980mm
Material 1.2mm Thickess Stainless Steel Driving Motor Brushless Servo Motor
Passage Width 600 (standard) ~1200mm Sensors 5 Pairs Of IR Sensors
Communication Dry Contact; RS485; RS232 Power Supply AC110~AC220 +/- 10%
Application Environment Inddoor/Outdoor
High Light

Inddoor Speed Gate Turnstile

,

Office Building Speed Gate Turnstile

,

FCC Speedlane Turnstile

Leave a Message
Product Description

Latest Appearance Design Patent Speed Gate Pedestrian Management Turnstile



Please see product video in youtube link: https://youtu.be/Nl-ZSDA8pNg



Product Description



HPT Sirius series turnstile gate is one of the latested appearance design from HPT Technology. Speed gate AG-TX68162302 is one of the fatest operation speed and longest service life model.



It has sharp appearance and also has extrodinary performance when it is used in different projects.



The gate applies brushless servo motor which allows it to operate with passage width reaches 1200mm, acrylic wing height reaches 1600mm and MCBF larger than 100 Million times. The body of the speed gate also applies different surface treatment to make its apperance more sophisticated. Part of the color treatment is stoving and part is electroplating.



The LEDs and card reader cover are all private toolings HPT designed. According to different projects, we also give customer advices to do customization on this gate.





Specification

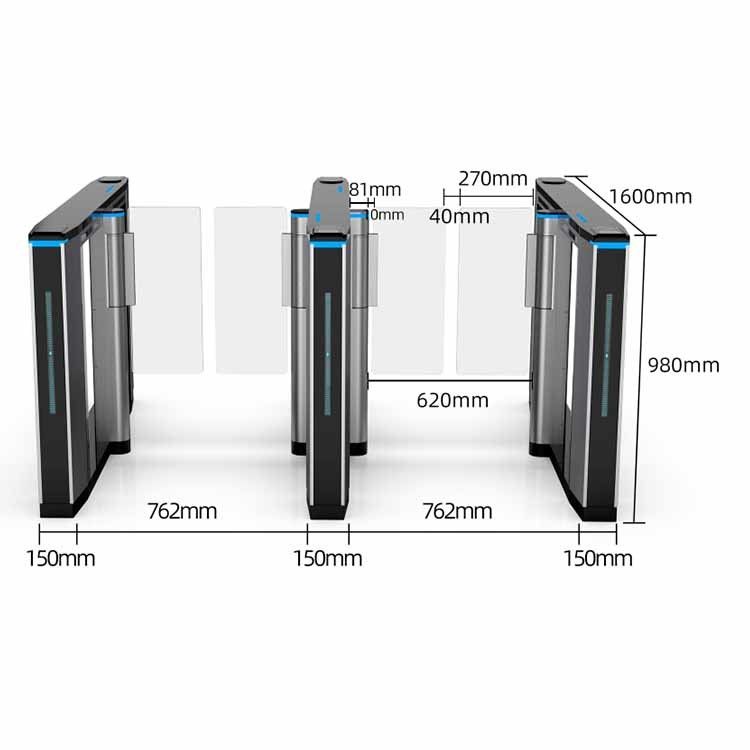

Product Size single wing:1600*231*980mm
dual wing: 1600*312*980mm
Material SUS 304 stainless steel + SPCC
Thinkness Top:1.2mm+body1.2mm
Passage Direction Single directional/Bi-directional
Standard Channel Width 600mm (≤900mm optional)
Sensor 5 pairs of active infrared intrusion detector
Throughput Rate 40~60 p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless Servo Motor
Acoustic Alarm Buzzer Alarm
LED Triple Color LED





Functionality



1, The gate can be integrated with different access control devices including RFID reader, ID reader, face recognition device and fingerprinte recognition etc.

2, It is equipped with light and acoustic alarm when someone wants to break in without authorization .

3, The system will automatically cancel the passing rights if visitor did not pass within setting time.

3, If visitor was caught by the turnstile wings, the turnstile wings will open to avoid people get hurt.

4, The turnstile is equipped with protection mechanism to protect its driving motor and wings when someone bump into the turnstile arms.

5, The turnstile motherboard has fire protection port.





Customization Avaible

To do changes on gate appearance and settings or passage width to adapt to different projects, or if you are looking for a OEM factory to realize your speed gate design, you are always welcome.



Projects



This gate is specially designed for high end places like museum, exhibition hall, hotel,  campus, office building, residential community and parks etc.



Office Building Speed Gate Turnstile 0Office Building Speed Gate Turnstile 1



HPT Technology



Shenzhen HPT Intelligent Technology Co., Ltd is a high-tech enterprise integrated R&D, production and sales of the turnstile and face recognition devices and system located in shenzhen city, China
