600mm Wide Speed Gate Turnstile with ≤95% Humidity

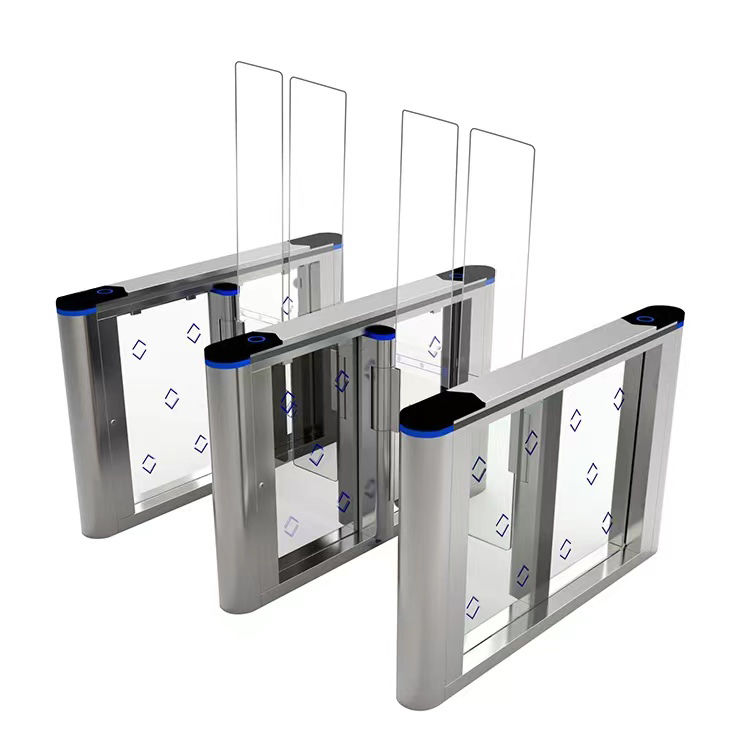

600mm Wide Speed Gate Turnstile with ≤95% Humidity

Place of Origin:


Brand Name:



CE, ISO9001, Rose, SGS

Model Number:


Contact Us

Request A Quote
Product Details
1 Year
Stainless Steel
Passage Width:
Passage Speed:
30 Persons/minute
Communication Interface:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Carton box
Delivery Time
Payment Terms
T/T, AliPay, PayPal
Supply Ability
1000 pcs/day
Product Description

Product Description:

HPT Sirius Series Turnstile Gate

High-Performance Turnstiles (HPT) presents one of their newest outside designs, the Sirius Series Turnstile Gate. One of their most popular models is the AG-TX68162302 which has a very fast operational speed and is very durable.

The AG-TX68162302 has a great look and amazing performance. An brushless servo motor enables it to run with a passage width of up to 1200mm, an acrylic wing height of up to 1600mm, and an MCBF more than 100,000,000. The surface treatment helps show its upscale appearance, which includes stoving and electroplating for its delightful color.

In addition, HPT designed their own LEDs and card reader lid. This unique turnstile can also be customized according to different projects.


Different access control devices, such as RFID readers, ID readers, facial recognition technology, and fingerprint readers, can be combined with the gate. To provide an extra layer of security, it has a light and audible warning which will activate if someone attempts to enter without permission. Once activated, they will have a predetermined amount of time to pass before the system automatically invalidates their rights.

To prevent physical injury, the turnstile wings will open if the visitor is accidentally caught by them. In addition, a protection device is installed to ensure the driving motor and wings of the turnstile will not be damaged if someone bumps into it. Moreover, the motherboard for the turnstile even has a fire protection port which can detect fire and activate the sprinklers.

Technical Parameters:

Parameter Value
Product Name Speed Gate Turnstile
Power 100W
Humidity ≤95%
Material Stainless Steel
Size 1400*280*980mm
Protection Level IP54
Weight 90Kg
Voltage AC220V/110V
Passage Width 600mm
Communication Interface RS485
High Speed Barrier Gate Yes
Automatic Entry Turnstile Yes
Automatic Entry Turnstile Gate Yes


The Speed Gate Turnstile, model AG-TX68162302 from HPT is an ideal choice for access control and security management. This product features a stainless steel construction, IP54 protection level, and AC220V/110V voltage. It also has a communication interface of RS485. The product is certified with CE, ISO9001, Rose, and SGS, and comes with a minimum order quantity of one. It is packed in a carton box, with a delivery time of 20 days and payment terms of T/T, AliPay, and PayPal. The product is capable of producing a supply of 1000 pcs/day.

The Speed Gate Turnstile is perfect for use in any high-security access control environment. This fast entrance turnstile is designed for fast and efficient movement of people, and is suitable for controlling pedestrian access in commercial buildings, office buildings, factories, and other places where access control is needed. The product is also ideal for use in areas that require high-speed passage, such as airports, railway stations, and other busy public spaces. With its robust construction and reliable performance, the Speed Gate Turnstile is an excellent choice for any access control and security management system.

Support and Services:

Speed Gate Turnstile Technical Support and Service

We provide technical support and service for our Speed Gate Turnstile. Our technical support staff is trained to diagnose and solve problems quickly and effectively.

If you require technical support, please call us at 1-800-555-1234. Our technical support team is available 24 hours a day, 7 days a week.

If you need physical repairs or replacements for your Speed Gate Turnstile, please contact us for more information. We offer repair and replacement services at competitive rates.

We also offer regular maintenance services for Speed Gate Turnstiles. Our maintenance services are designed to keep your turnstiles in good working condition and help prevent costly repairs down the line.


Q. What is the brand name of the Speed Gate Turnstile?
A. The brand name is HPT.
Q. What is the model number of the Speed Gate Turnstile?
A. The model number is AG-TX68162302.
Q. Where is the Speed Gate Turnstile manufactured?
A. The Speed Gate Turnstile is manufactured in China.
Q. What certifications does the Speed Gate Turnstile have?
A. The Speed Gate Turnstile has CE, ISO9001, Rose, and SGS certifications.
Q. What is the minimum order quantity for the Speed Gate Turnstile?
A. The minimum order quantity for the Speed Gate Turnstile is 1.
