30p/M Vertical Tripod Turnstile Gate Entrance For Pedestrian Management

30p/M Vertical Tripod Turnstile Gate Entrance For Pedestrian Management

Vertical Tripod Turnstile

Tripod Turnstile Gate Entrance

30p/M Pedestrian Turnstile Gate

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Tripod Security Gates
Product Size:
SUS 304 Stainless Steel
Throughput Rate:
Pass Width:
Driving Voltage:
DC24V 3A
Payment & Shipping Terms
Product Description

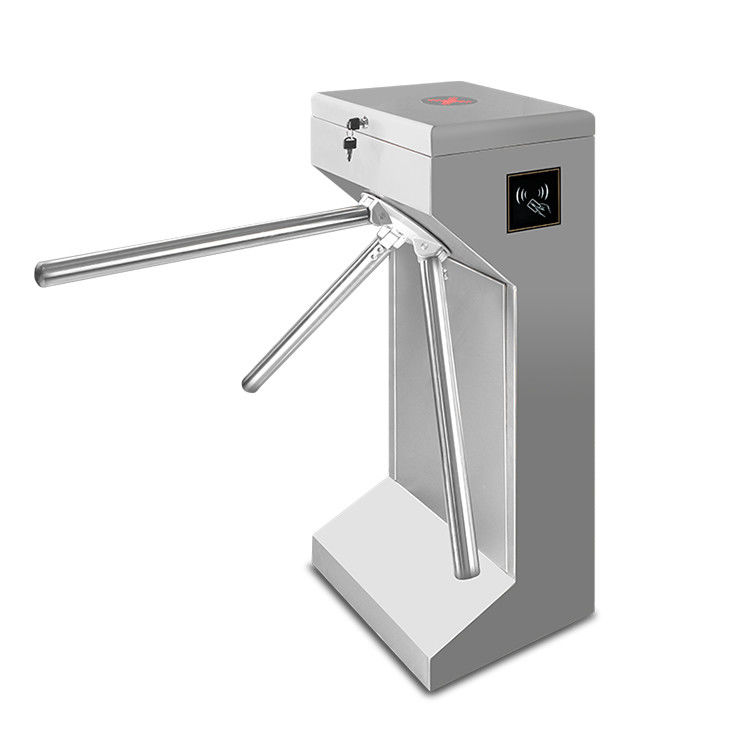

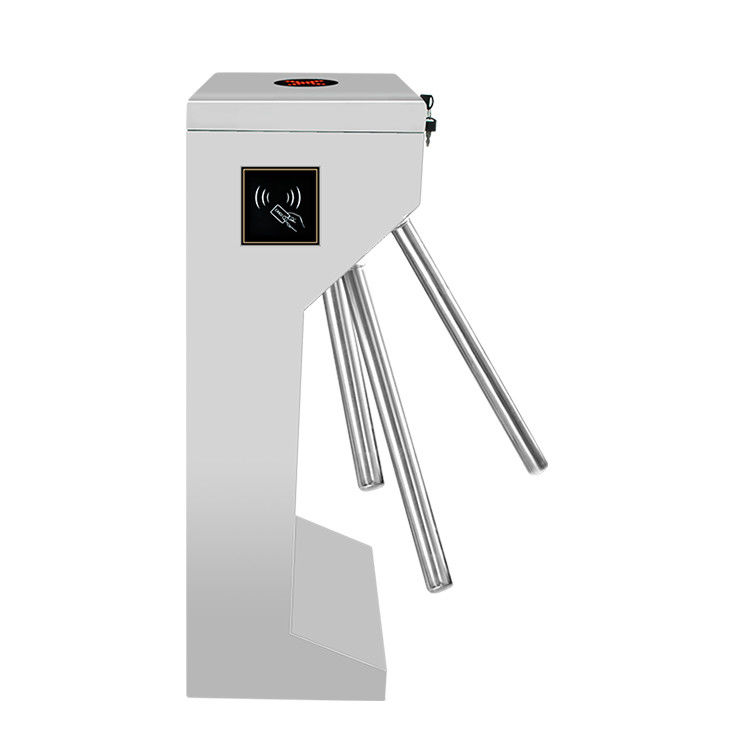

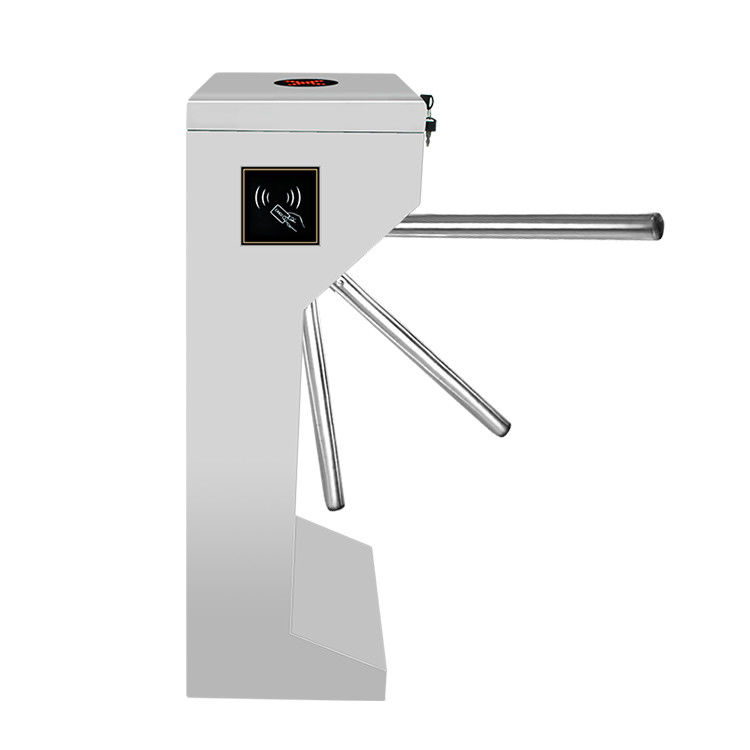

Vertical Tripod Turnstile Outdoor Turnstile Gate For Pedestrian Management


AG-PX13423302 vertical tripod turnstile is one of the most common tripod turnstile you will see in public for entrance management. Because it is low cost, wide application scenarios, multiple accessing ways. Though it is one of the most common turnstile gate you see, HPT still make make efforts on this product. Even and shiny surface of the stainless steel, quite stable and powerful mechanism, rubber strip seal on turnstile opening for waterproof -- all this makes it a beautiful, durable and useful turnstile gate management system for many occasions indoor and outdoor. If you are going to need to mange a construction site, a tripod turnstile can always be one of the best choice as it works fine and long indoor and outdoor.


30p/M Vertical Tripod Turnstile Gate Entrance For Pedestrian Management 0

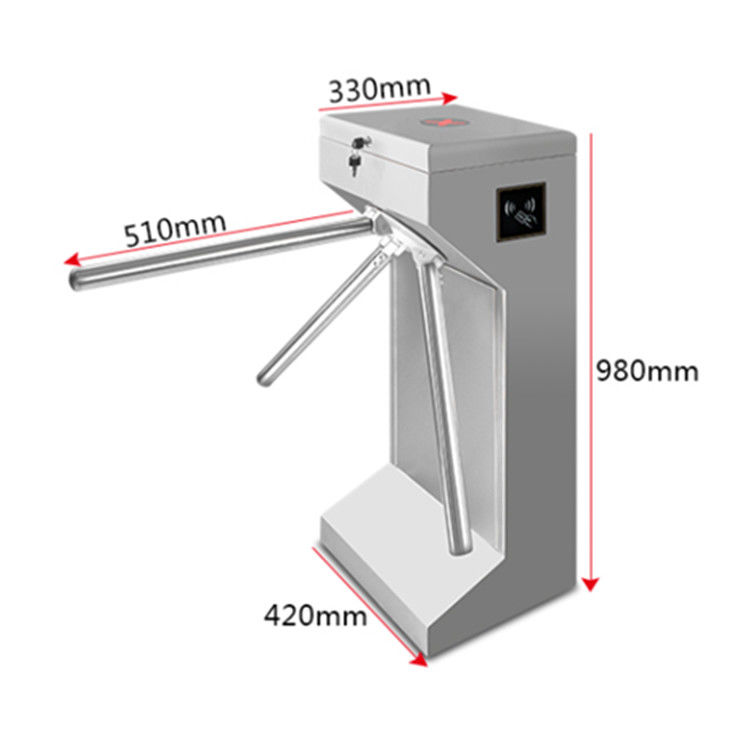

Product Size 420*330*980mm
Material SUS 304 stainless steel
Material Thickness Top:1.2mm+body1.0mm
Throughput Rate 30p/m
Pass Width 550mm
Passage Direction Single directional/Bi-directional
Throughput Rate 30p/m
Driving Voltage DC24V 3A
Power Input AC110~220V±10%
Working Temperature ·-20~+70
Driving Mode Semi-auto
Indication LED direction indication



1) The entire system runs smoothly with small noise and little mechanical impact.

4) It has failure self-detect function.

5) Single-directional/bidirectional (Entering/Exiting) accessing optional.

6) Turnstile arms automatic fall down : the turnstile barriers will fall down when power is off, and need to install back manually when power on.

7) It has anti-trailing function: Only one person with authorization can pass each time. if someone is trailing, the arms will automatically lock.

8) The tripod turnstile also “anti-reversal”: turnstile barrier will stop when someone tried to pass the turnstile from a false direction.

9) It is anti-collision: After the tripods forcefully open, you can pull the three arms to the original position by hand or swipe card or power off, then the arms can return to the original position, and the operation is very convenient.

10)The tripod gate turnstile has a unified, standard interfaces which connect to a variety of readers and devices to receive relay signal to integrate with access control systems.

11)The tripod turnstile also has different operation modes: It can be connected to control signal or button or remote control to achieve single-way or double-way control. “two-way limited access”, “one-way limited access”. The working mode can be set on control board.



30p/M Vertical Tripod Turnstile Gate Entrance For Pedestrian Management 1


Customization Available

In order to make the gate more appropriate for your projects, we may also change its settings or design to fit various circumstances for you. Our sales team is always available to you.
