Durable Exit Turnstile Access Control Tripod Barriers For Access Control

Durable Exit Turnstile Access Control Tripod Barriers For Access Control

Durable Exit Turnstile

Exit Turnstile Access Control

Tripod Barriers For Access Control

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Size:
SUS 304 Stainless Steel +SPCC
Passage Direction:
Standard Channel Width:
Throughput Rate:
Power Input:
Driving Mode:
Dual Color LED
Payment & Shipping Terms
Minimum Order Quantity
Product Description

AG-TX18162402 Semi-Automatic Drop Arm Turnstile Tripod Gate For Hotel



Product Video, please find in this youtube link:


Product Description

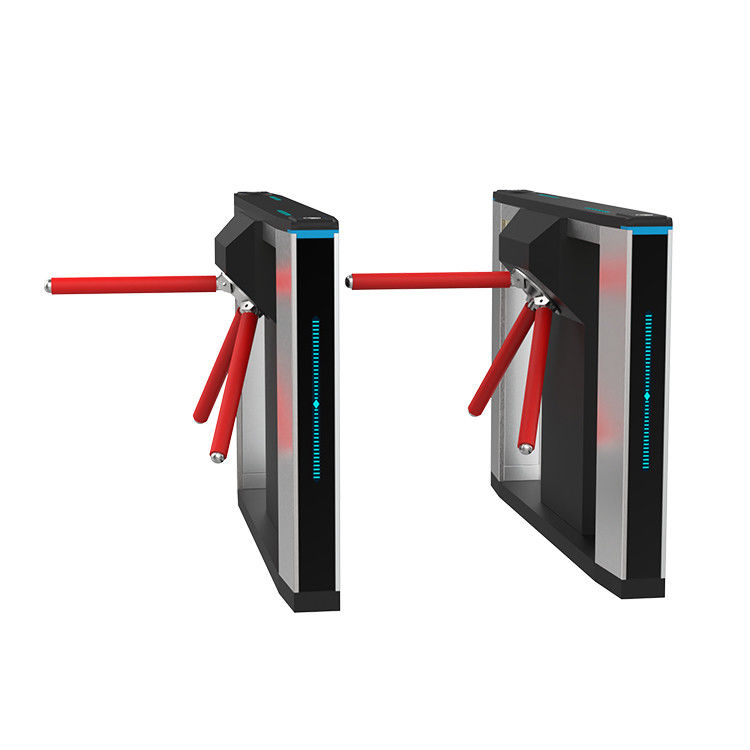

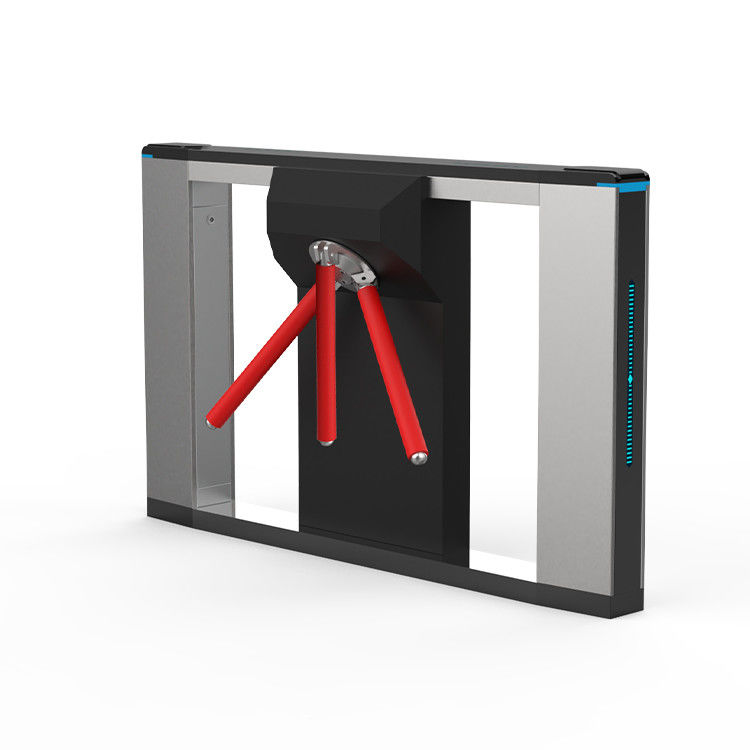

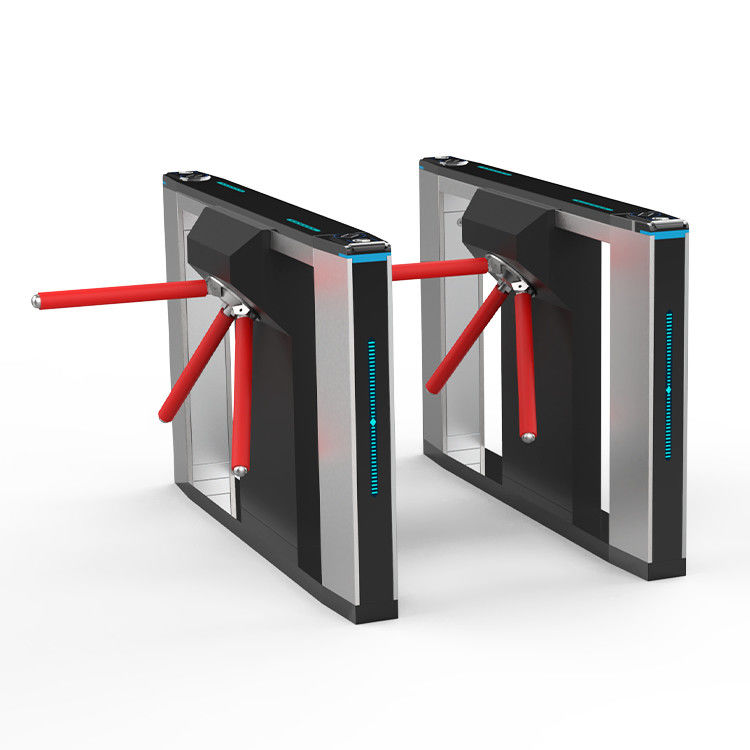

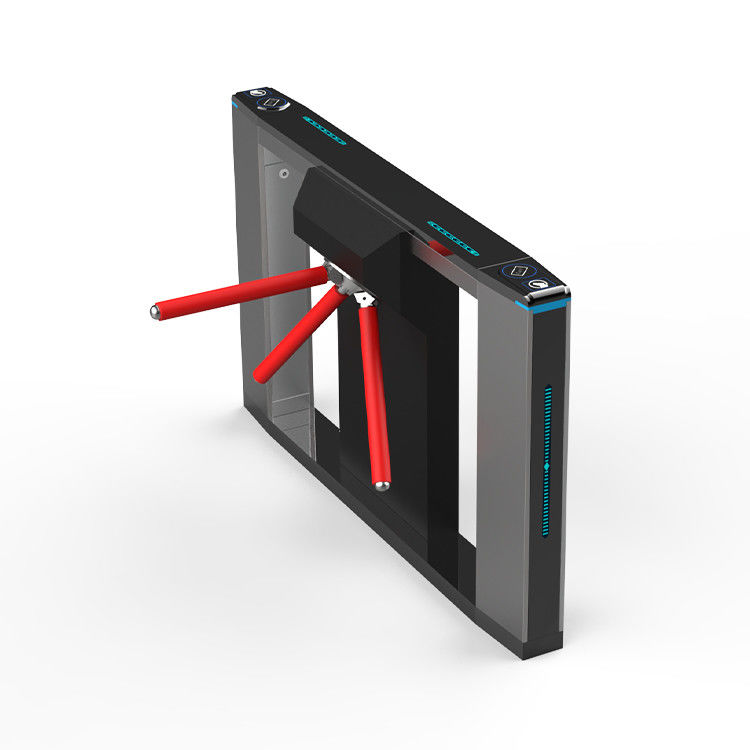

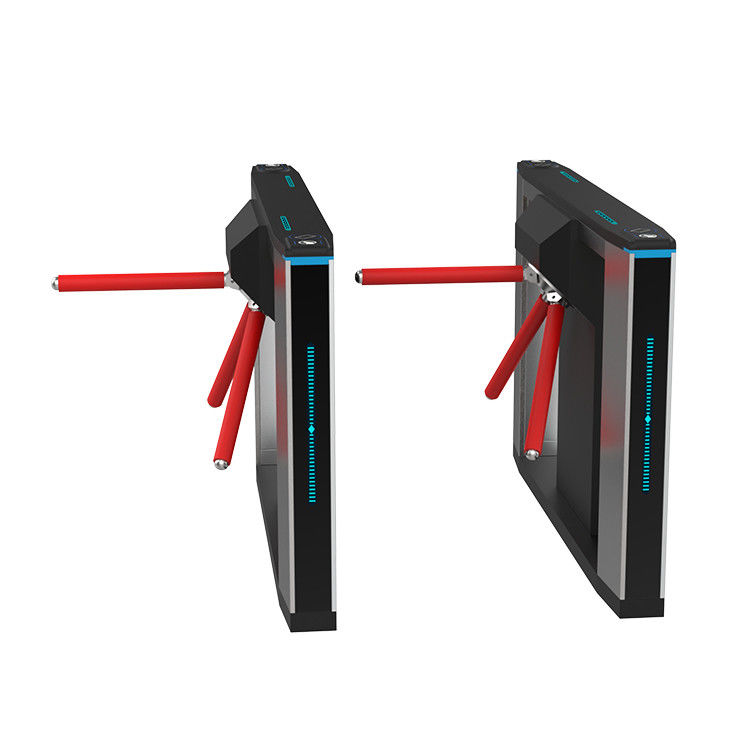

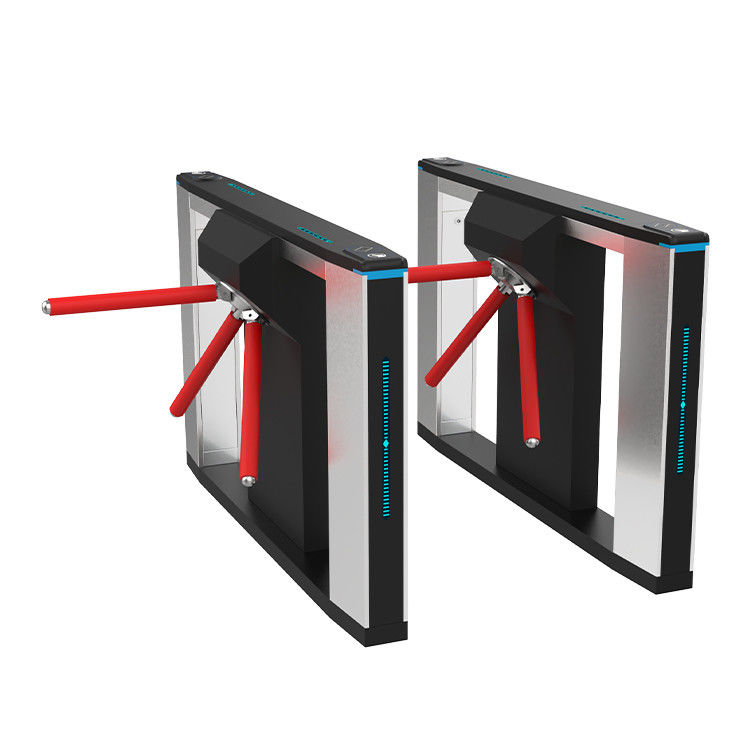

HPT Sirius AG-TX18162402 tripod turnstile gate, an advanced gate system designed for industrial and commercial uses. This turnstile gate is made of durable and reliable stainless steel, which ensures its high-performance function in outdoor and indoor applications. It can be quickly opened and closed with access control system, and is easy to maintain with a minimum of manual intervention.


It is convenient and secure, and can reduce the risk of break-in of unauthorized personal . With its sophisticated design, the gate can accommodate wide entrance openings and fit perfectly in any type of construction.


Additionally, this security gate system offers high speed operation thanks to its motor-driven design. It also boasts an advanced motor control system that responds quickly and accurately to changes in opening or closing directions. It also has a powerful electric eye for long-distance detection and an automatic break-in warning for deterrence of unauthorized persons.


In short, the tripod gate turnstile is an ideal choice for those who need top-level security performance. The device is proven to be highly convenient and secure, and it brings added value to any property.




Product Size 1600*245*980MM
Material SUS 304 stainless steel +SPCC
Passage Direction Single-directional/Bi-directional
Standard Channel Width 550mm
Throughput Rate 30p/m
Driving Voltage DC24V 3A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Thickenss 1.2mm
Driving Mode Semi-auto
LED Dual color LED




1, If the visitors don't pass through in the allowed period, the turnstile locks itself.

2. The turnstile entrance gates can work with dual or single directions accessing.

3. Upon power failure, the turnstile arm will automatically lower.

The turnstile locks itself if no visitor pass through in the allotted time.

4. After a visitor passed through the turnstile, the barrier will automatically lock.

5. This access control turnstile gates have LED passing arrows that can show which direction a passenger should move.

6. The common dry contact interface on the motherboard makes it simple to connect to various readers that can send relay signals.


Customization Avaible

To do changes on the turnsitle gate to make it a more unique deisgn for you or if you are looking for a OEM factory to realize your own deisgn, customization is available.



Durable Exit Turnstile Access Control Tripod Barriers For Access Control 0

About Us


Shenzhen HPT Intelligent Technology Co., Ltd is a high-tech enterprise integrated R&D, production and sales of the turnstile gate system located in shenzhen city, China

Our company now have nearly 200 employees and a R&D team with20 members , 20 patents and national software copyright, I O S 9 0 0 1, CE and F C C certificates. More than 100 tests before products delivery to control quality.
