Reliable Waist High Turnstile Gate , Employee Turnstiles Restaurant

Reliable Waist High Turnstile Gate , Employee Turnstiles Restaurant

Reliable Waist High Turnstile

Waist High Turnstile Gate

Employee Turnstiles Restaurant

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Tripod Turnstile Gate Entrance
Product Size:
Passage Direction:
Power Input:
Driving Mode:
Throughput Rate:
SUS 304 Stainless Steel +SPCC
Standard Channel Width:
Dual Color LED
Payment & Shipping Terms
Minimum Order Quantity
Product Description

AG-TX18162402 Access Control Turnstile Gate Tripod Access System



Product Video, please find in this youtube link:





1, If the visitors don't pass through in the allowed period, the turnstile locks itself.

2. The turnstile entrance gates can work with dual or single directions accessing.

3. Upon power failure, the turnstile arm will automatically lower.

The turnstile locks itself if no visitor pass through in the allotted time.

4. After a visitor passed through the turnstile, the barrier will automatically lock.

5. This access control turnstile gates have LED passing arrows that can show which direction a passenger should move.

6. The common dry contact interface on the motherboard makes it simple to connect to various readers that can send relay signals.


Customization Avaible

To do changes on the turnsitle gate to make it a more unique deisgn for you or if you are looking for a OEM factory to realize your own deisgn, customization is available.


Product Description

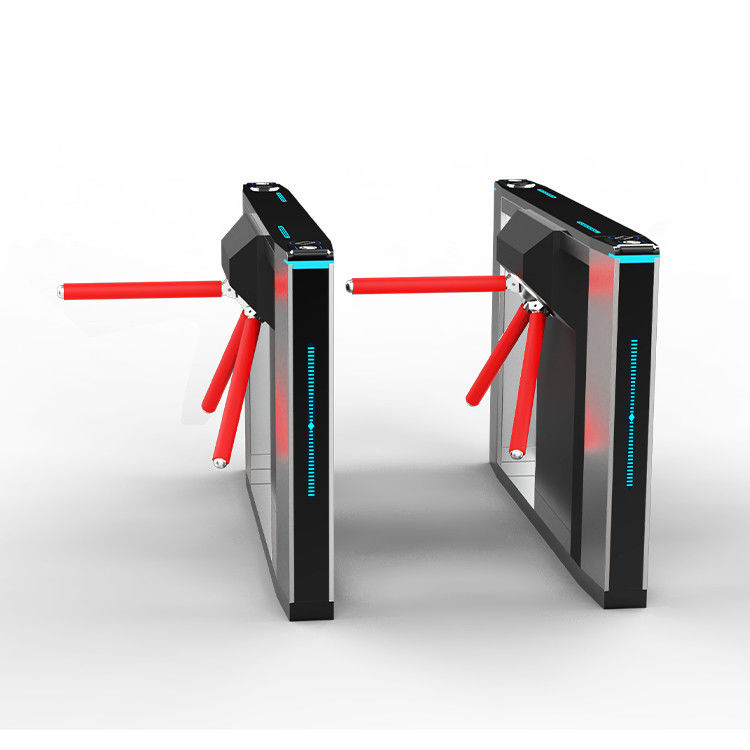

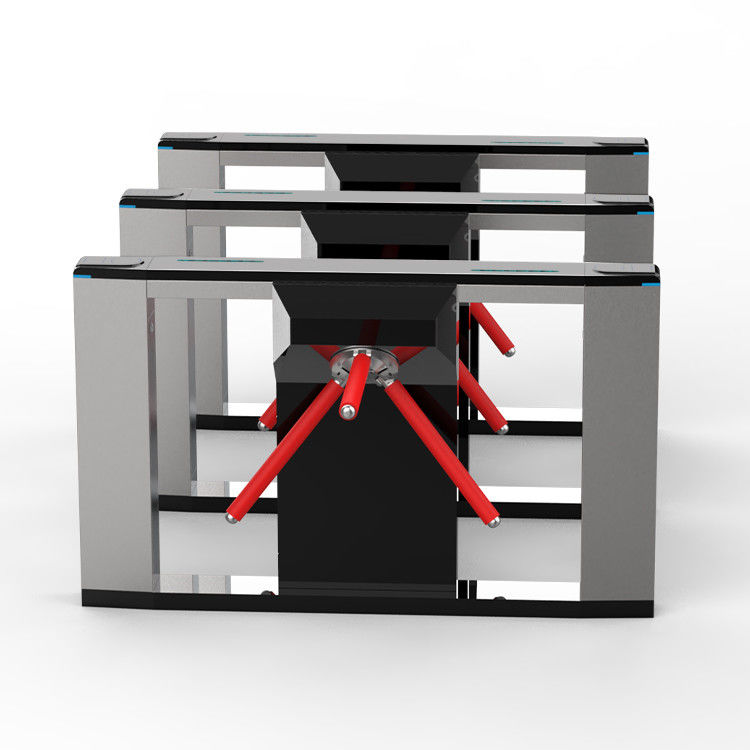

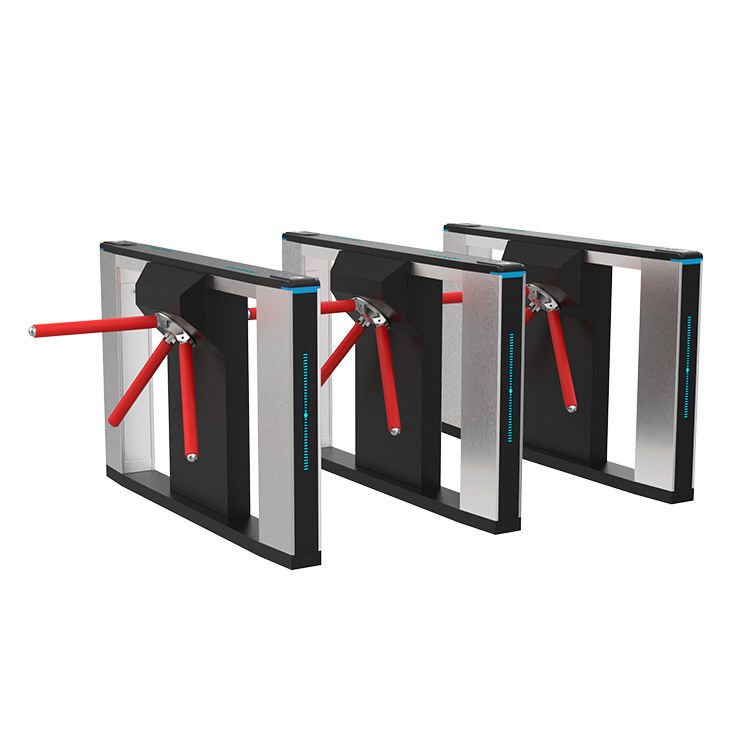

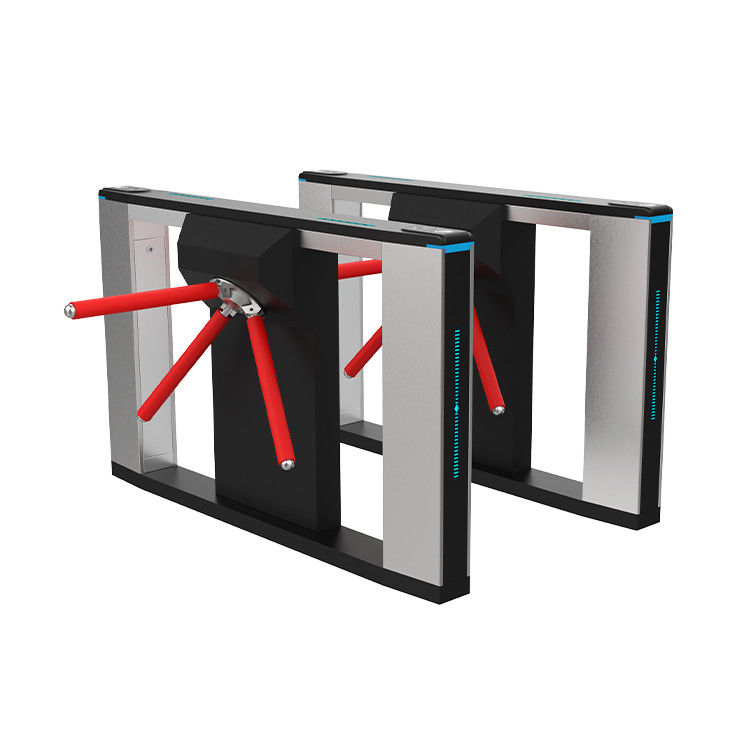

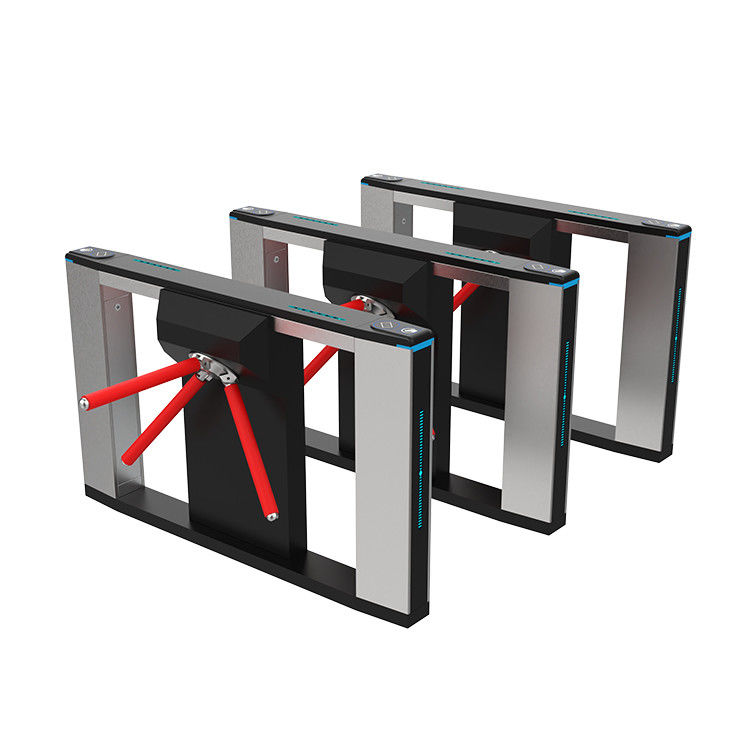

HPT Sirius series tripod turnstile AG-TX18162402 is a high-end gate product used as security for buildings and office complexes. It consists of three interlocking horizontal rolls that are mounted vertically onto a robust steel frame. The gate rolls inward and outwards quickly, giving facility managers a secure protection option while also allowing easy access for personnel. Moreover, the turnstile gate is equipped with an array of safety features. It also has an emergency release switch in case of power failure. The tripod gate turnsitle is highly durable, made of wear-resistant steel and coated with a premium paint finish that guarantees long lasting protection against environmental factors. Besides, its automated system is designed to minimize the need for manual operation, thus creating a safe workplace for those in the building. This tripod turnstile gate is one of the most effective gate products for buildings and office complexes, providing the highest level of security for those entering and exiting.




Product Size 1600*245*980MM
Material SUS 304 stainless steel +SPCC
Passage Direction Single-directional/Bi-directional
Standard Channel Width 550mm
Throughput Rate 30p/m
Driving Voltage DC24V 3A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Thickenss 1.2mm
Driving Mode Semi-auto
LED Dual color LED





Reliable Waist High Turnstile Gate , Employee Turnstiles Restaurant 0

About Us


Shenzhen HPT Intelligent Technology Co., Ltd is a high-tech enterprise integrated R&D, production and sales of the turnstile gate system located in shenzhen city, China

Our company now have nearly 200 employees and a R&D team with20 members , 20 patents and national software copyright, I O S 9 0 0 1, CE and F C C certificates. More than 100 tests before products delivery to control quality.
