Place of Origin:
China
Brand Name:
HPT
Certification:
CE； FCC; ISO
Model Number:
AG-TX18162402
Contact Us

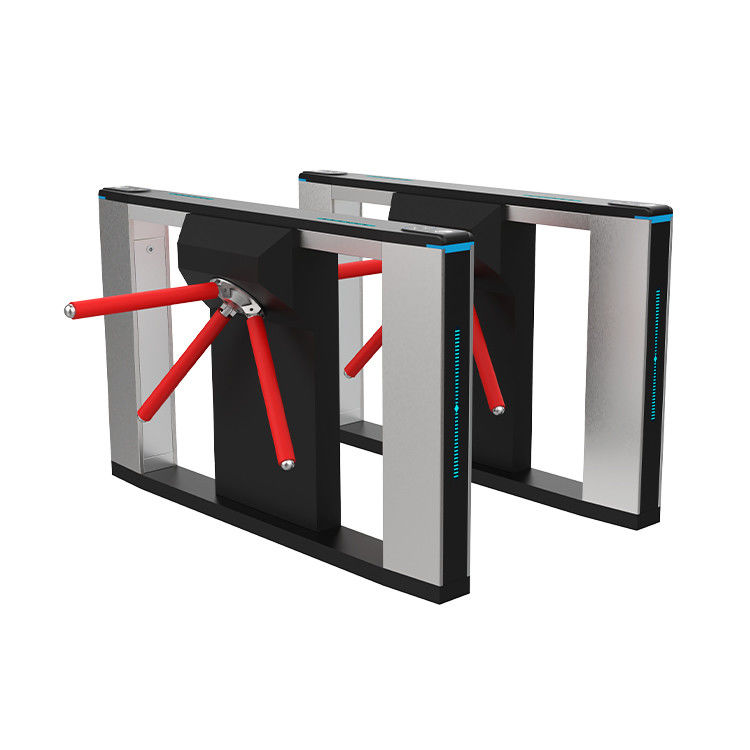

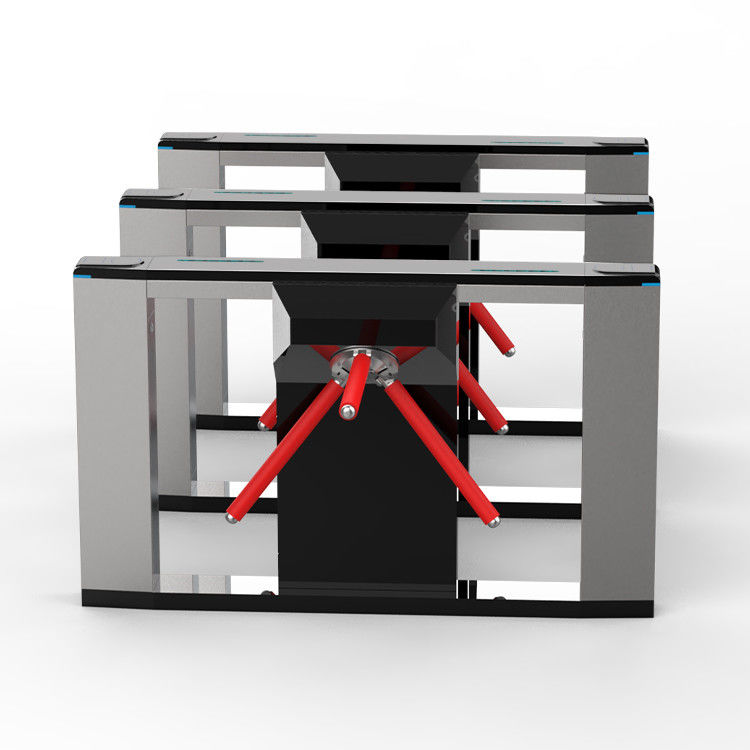

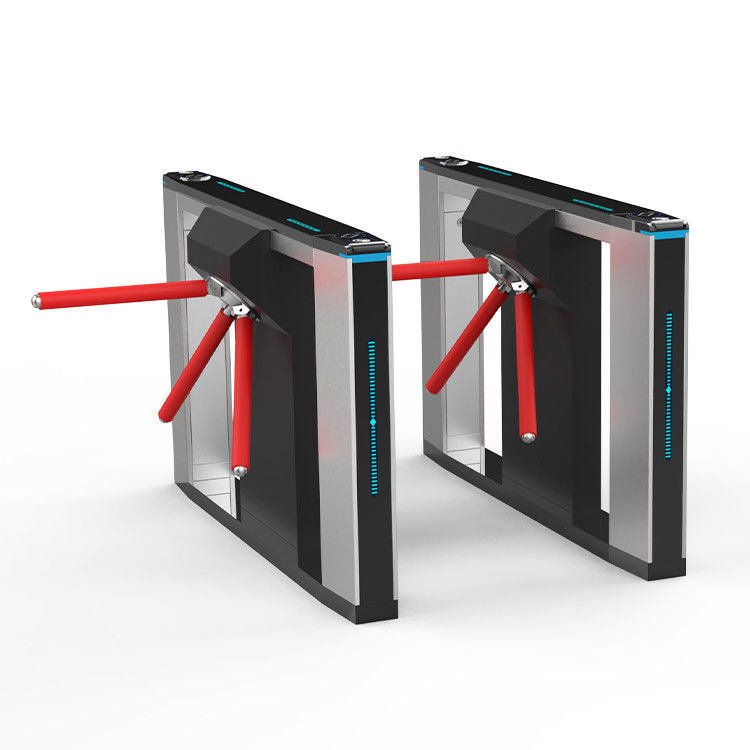

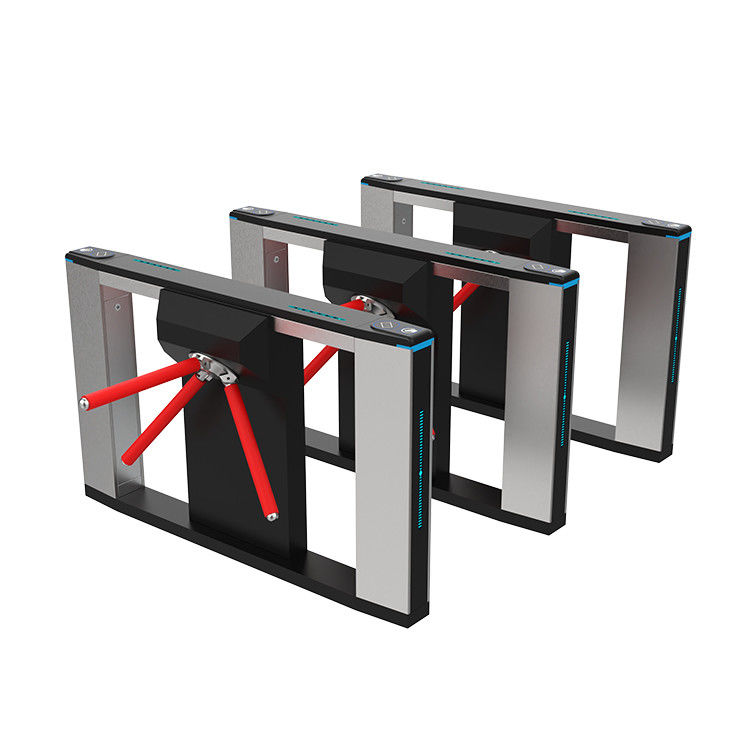

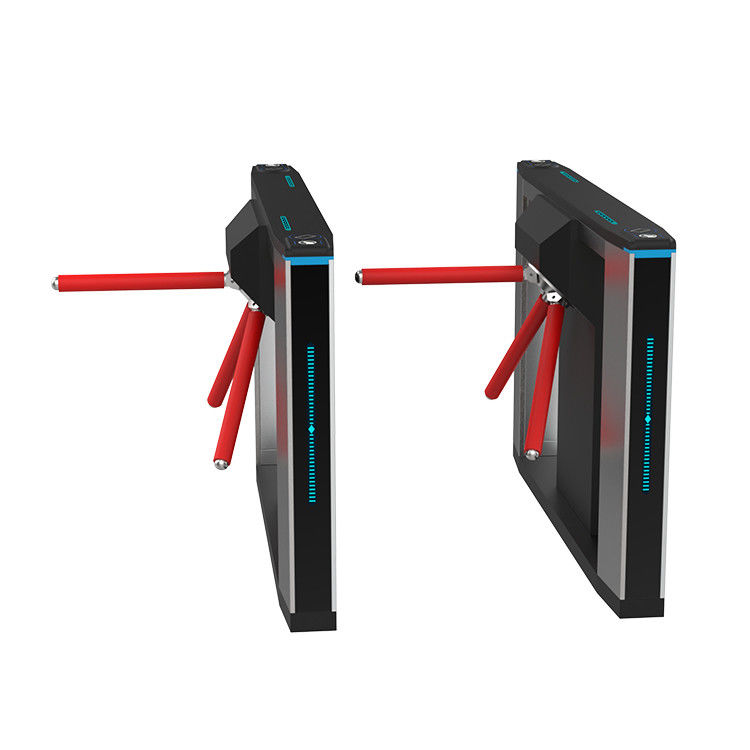

AG-TX18162402 Access Control Turnstile Gate Tripod Access System
Product Video, please find in this youtube link: https://youtu.be/IscAEW3q8OQ
Product Description
Tripod turnstile AG-TX18162402 of HPT Sirius Series is a high-end gate product used as security for buildings and office complex. It consists of three horizontal, interlocking rolls that are vertically mounted onto a sturdy steel frame. The gate providing facility managers with a secure protection option and facilitating easy access for staff. The turnstile gate also comes with a number of safety features. Additionally, it has an emergency release switch for when the power goes out. The wear-resistant steel construction of the tripod gate turnstile, combined with its premium paint finish, ensures long-lasting protection against environmental elements. Additionally, its automated system is built to reduce the need for manual labor, providing a secure working environment for everyone inside the building. One of the best gates for buildings and office complexes, this tripod turnstile gate offers the highest level of security for people entering and exiting.
Specification
| Product Size | 1600*245*980mm |
| Material | SUS 304 stainless steel +SPCC |
| Passage Direction | Single-directional/Bi-directional |
| Standard Channel Width | 550mm |
| Throughput Rate | 30p/m |
| Driving Voltage | DC24V 3A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Thickenss | 1.2mm |
| Driving Mode | Semi-auto |
| LED | Dual color LED |
Functionality
1, If the visitors don't pass through in the allowed period, the turnstile locks itself.
2. The turnstile entrance gates can work with dual or single directions accessing.
3. Upon power failure, the turnstile arm will automatically lower.
The turnstile locks itself if no visitor pass through in the allotted time.
4. After a visitor passed through the turnstile, the barrier will automatically lock.
5.This access control turnstile gates have LED passing arrows that can show which direction a passenger should move.
6. The common dry contact interface on the motherboard makes it simple to connect to various readers that can send relay signals.
Customization Avaible
To do changes on the turnsitle gate to make it a more unique deisgn for you or if you are looking for a OEM factory to realize your own deisgn, customization is available.
Projects
About Us
Shenzhen HPT Intelligent Technology Co., Ltd is a high-tech enterprise integrated R&D, production and sales of the turnstile gate system located in shenzhen city, China
Our company now have nearly 200 employees and a R&D team with20 members , 20 patents and national software copyright, I O S 9 0 0 1, CE and F C C certificates. More than 100 tests before products delivery to control quality.
Find us please contact:
Mob/whatsapp: +8618902455854
Email: sales02@sz-hpt.com
Send your inquiry directly to us
