Stainless Steel Train Turnstiles , Semi auto Drop Arm Turnstile For Harsh Environment

Stainless Steel Train Turnstiles , Semi auto Drop Arm Turnstile For Harsh Environment

Stainless Steel Train Turnstiles

Semi Auto Drop Arm Turnstile

Place of Origin:

China

Brand Name:

HPT

Certification:

CE; FCC ISO

Model Number:

AG-PX13423302

Contact Us

Request A Quote
Product Details
Name:
Vertical Tripod Turnstile
Material Thickness Top:
1.2mm+body1.0mm
Passage Direction:
Single Directional/Bi-directional
Driving Voltage:
DC24V 3A
Driving Mode:
Semi-auto
Indication:
LED Direction Indication
Payment & Shipping Terms
Product Description

AG-PX13423302 Automatic Barrier Gate Tripod Security Gates For Harsh Environment



AG-PX13423302 vertical tripod turnstile is designed for use in a variety of applications. This type of gate is a heavy duty gate that is highly versatile and extremely durable. It is built to withstand the toughest environments making it an ideal choice for a wide range of industrial and commercial applications. The gate is manufactured from high quality sus 304 stainless steel and plexiglass material that ensures that it can withstand a wide range of chemical and weathering agents. The 3 arm turnstile has an rubber strip to ensure a proper seal between the gate and the opening. The double direction operation and heavy duty construction of the triple gate allow it to stay securely closed and to resist break-in attempts. In addition, the simple installation make the product easy to use. This gate makes an excellent choice for use in warehouses, industrial plants, and any other areas where security is essential.



Stainless Steel Train Turnstiles , Semi auto Drop Arm Turnstile For Harsh Environment 0



Specification

Specification

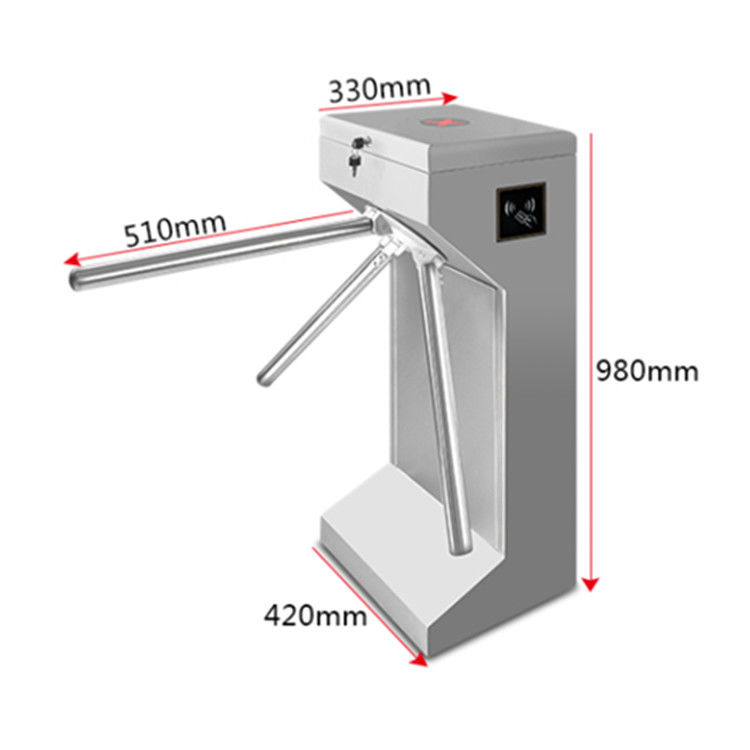

Product Size 420*330*980mm
Material SUS 304 stainless steel
Material Thickness Top:1.2mm+body1.0mm
Throughput Rate 30p/m
Pass Width 550mm
Passage Direction Single directional/Bi-directional
Throughput Rate 30p/m
Driving Voltage DC24V 3A
Power Input AC110~220V±10%
Working Temperature ·-20~+70
Driving Mode Semi-auto
Indication LED direction indication



Functionality

1) The entire system operates quietly and with minimal mechanical effect.

4) It has a function for failure self-detection.

5) Accessing in a single direction or both directions (entering and exiting) is optional.

6) Turnstile arms automatically lower themselves when the power is turned off; they must be manually reinstalled when the power is turned back on.

7) It contains an anti-trailing function, allowing only one authorized individual to pass at a time. The arms will automatically lock if someone is following.

8) The tripod turnstile has a "anti-reversal" feature that prevents people from passing it from the wrong direction. The entire system operates quietly and with minimal mechanical effect.

9) It has a function for failure self-detection.

10) Accessing in a single direction or both directions (entering and exiting) is optional.

11) Turnstile arms automatically lower themselves when the power is turned off; they must be manually reinstalled when the power is turned back on.

12) It contains an anti-trailing function, allowing only one authorized individual to pass at a time. The arms will automatically lock if someone is following.

13) The tripod turnstile has a "anti-reversal" feature that prevents people from passing it from the wrong direction.

14) It is anti-collision: After the tripods forcefully open, you can pull the three arms back to their original positions using your hand, a credit card reader, or by turning the power off. This makes operation much easier.

15) The tripod gate turnstile features a single, common interface that connects to a range of readers and devices to receive relay signals for integrating with access control systems.

16) The tripod turnstile can be operated in single-way or double-way fashion by connecting it to a control signal, button, or remote control. "Limited access," "restricted access (two-way)," etc. On the control board, the working mode can be changed.



Projects

Stainless Steel Train Turnstiles , Semi auto Drop Arm Turnstile For Harsh Environment 1



Customization Available

In order to make the gate more appropriate for your projects, we may also change its settings or design to fit various circumstances for you. Our sales team is always available to you.
