30p/m High Speed Gates , Automatic Systems Turnstiles For Construction Site

30p/m High Speed Gates , Automatic Systems Turnstiles For Construction Site

30p/m High Speed Gates

Automatic High Speed Gates

Automatic Systems Turnstiles

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Drop Arm Turnstile
SUS 304 Stainless Steel
Throughput Rate:
Driving Voltage:
DC24V 3A
Driving Mode:
LED Direction Indication
Payment & Shipping Terms
Product Description

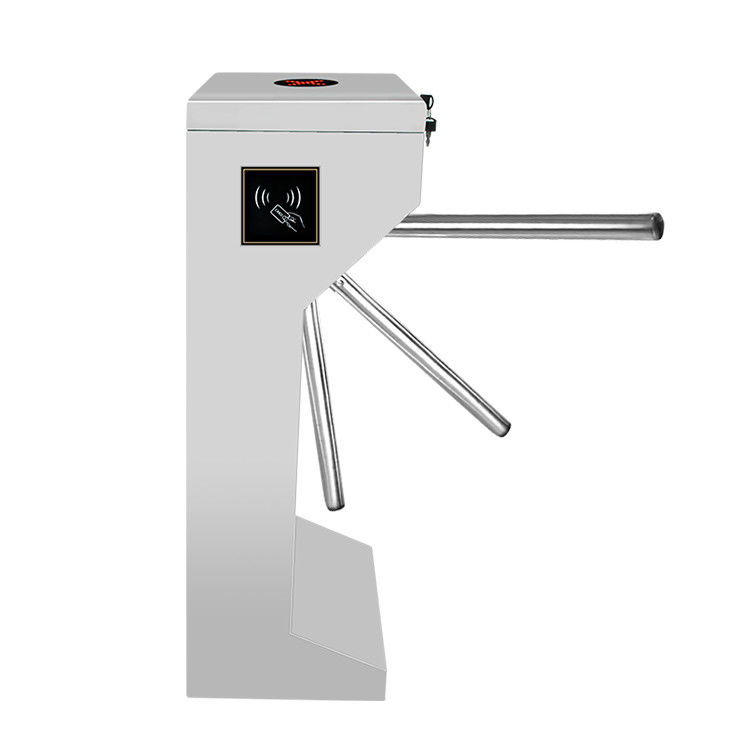

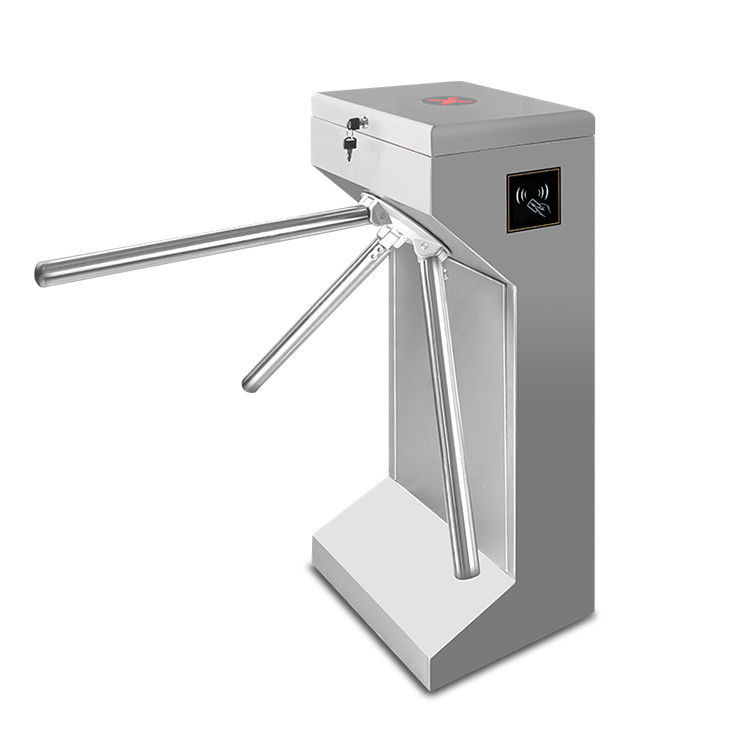

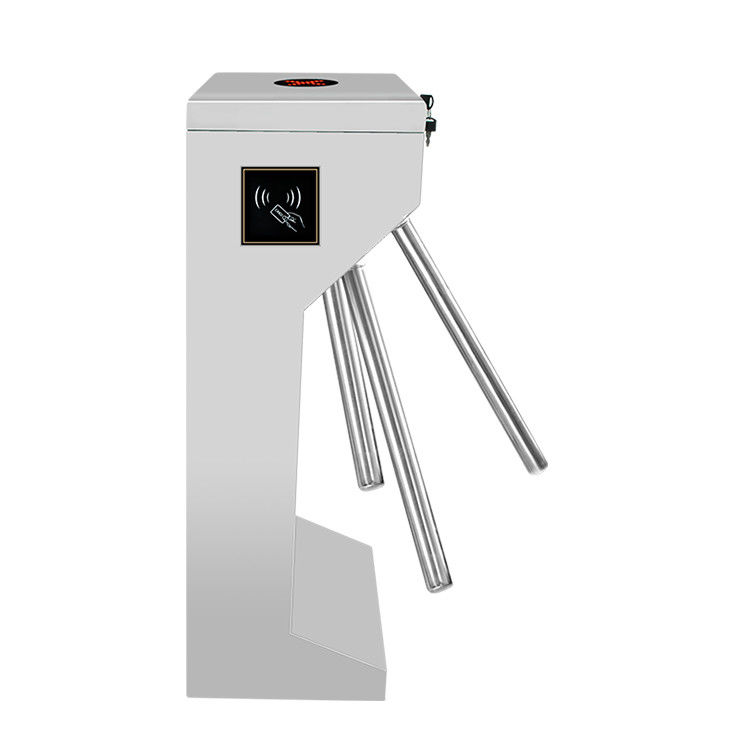

AG-PX13423302 Pedestrian Barrier Gate Electronic Turnstile Gates Tripod for Construction Site


AG-PX13423302 vertical tripod turnstile is made to be used in many different situations. It is a heavy-duty gate that is incredibly strong and adaptable. It is an excellent option for a variety of industrial and commercial applications because it is designed to resist the harshest environments. The gate can endure a variety of chemical and weathering agents since it is made of high-quality sus 304 stainless steel and plexiglass. To ensure a perfect seal between the gate and the opening, the three-arm turnstile is equipped with a rubber strip. The triple gate can remain firmly closed and withstand intrusion attempts thanks to its heavy duty design and double direction action. The product is simple to use and has an uncomplicated installation. This gate is a great option for usage in factories, warehouses, and other locations where security is crucial.

30p/m High Speed Gates , Automatic Systems Turnstiles For Construction Site 0

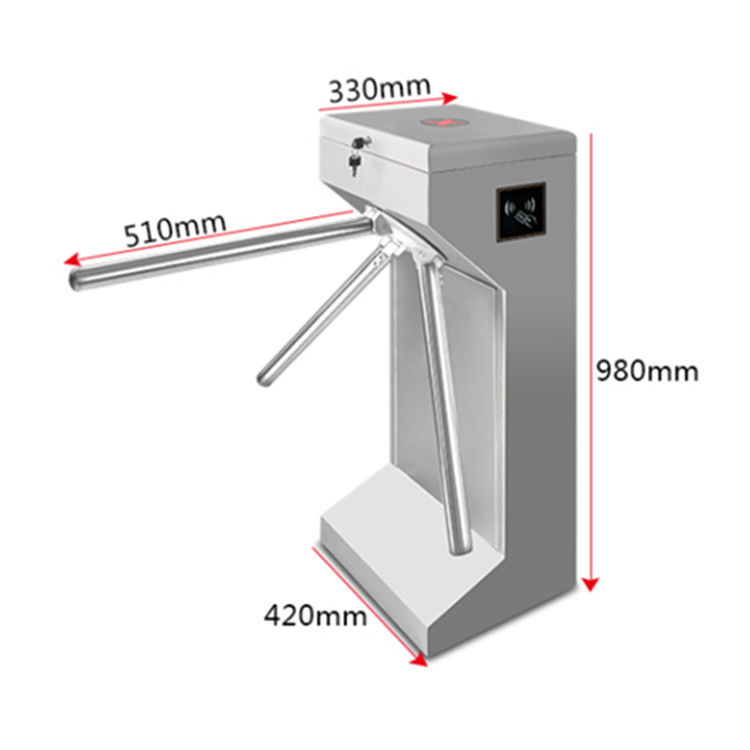

Product Size 420*330*980mm
Material SUS 304 stainless steel
Material Thickness Top:1.2mm+body1.0mm
Throughput Rate 30p/m
Pass Width 550mm
Passage Direction Single directional/Bi-directional
Throughput Rate 30p/m
Driving Voltage DC24V 3A
Power Input AC110~220V±10%
Working Temperature ·-20~+70
Driving Mode Semi-auto
Indication LED direction indication



1) The system as a whole runs silently and with little mechanical interference.

2) It has a failure self-detection feature.

3) Accessing (entering and exiting) in either one or both directions is optional.

4) When the power is switched off, turnstile arms automatically drop; to reinstall them when the power is turned back on.

5) It has an anti-trailing feature that only permits one authorized person to pass at a time. If someone is following, the arms will automatically lock.

6) To prevent individuals from passing through the tripod turnstile in the wrong direction, it contains a "anti-reversal" mechanism.

7) It is anti-collision: If the tripods suddenly open, you can use your hand, a credit card reader, or the power switch to draw the three arms back to their original places. This greatly simplifies operation.

8) The tripod gate turnstile has a single, universal interface that may be connected to a variety of readers and devices to receive relay signals for integrating with access control systems.

9) By attaching the tripod turnstile to a control signal, button, or remote control, it can be operated in a single-way or double-way mode. restricted access (two-way), limited access, etc. The working mode can be modified on the control board.



30p/m High Speed Gates , Automatic Systems Turnstiles For Construction Site 1


Customization Available

In order to make the gate more appropriate for your projects, we may also change its settings or design to fit various circumstances for you. Our sales team is always available to you.
