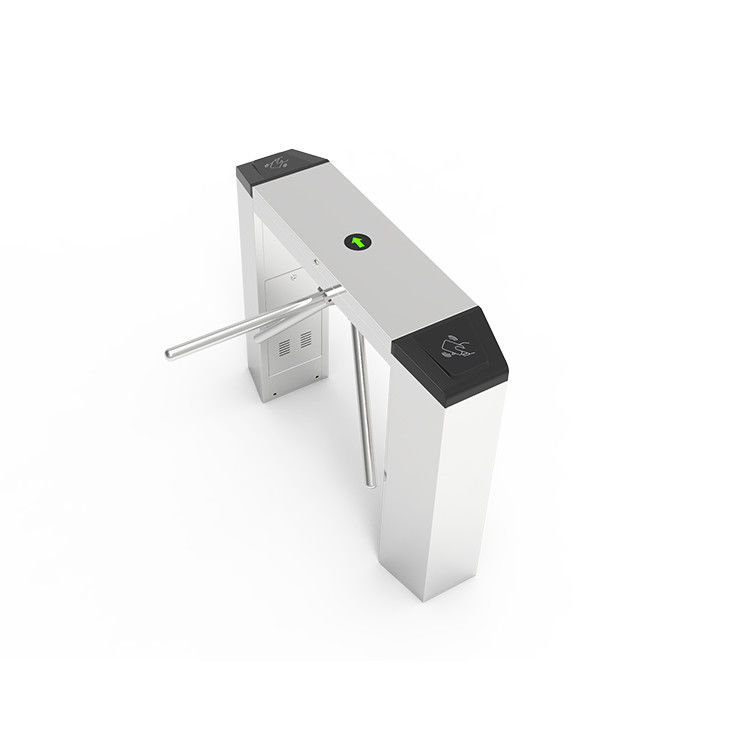

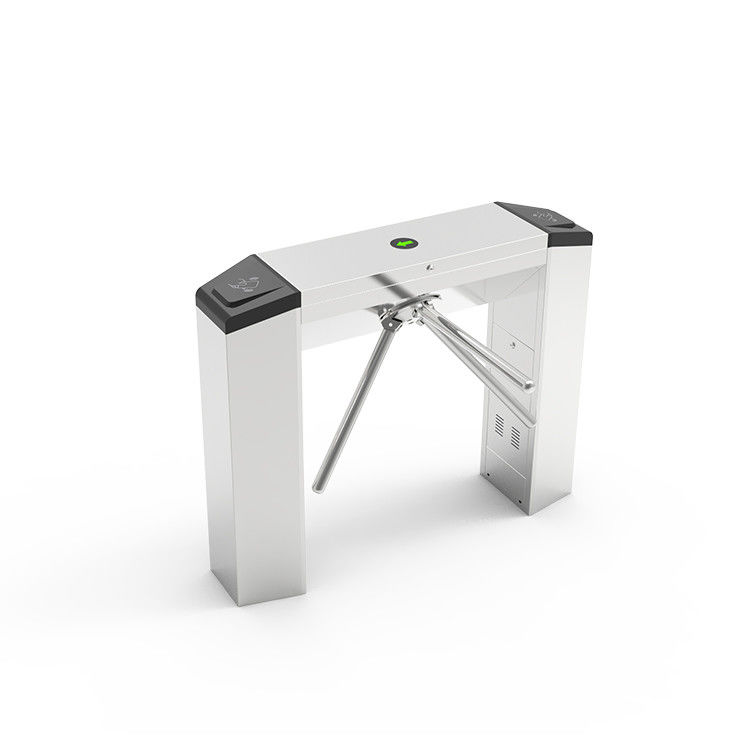

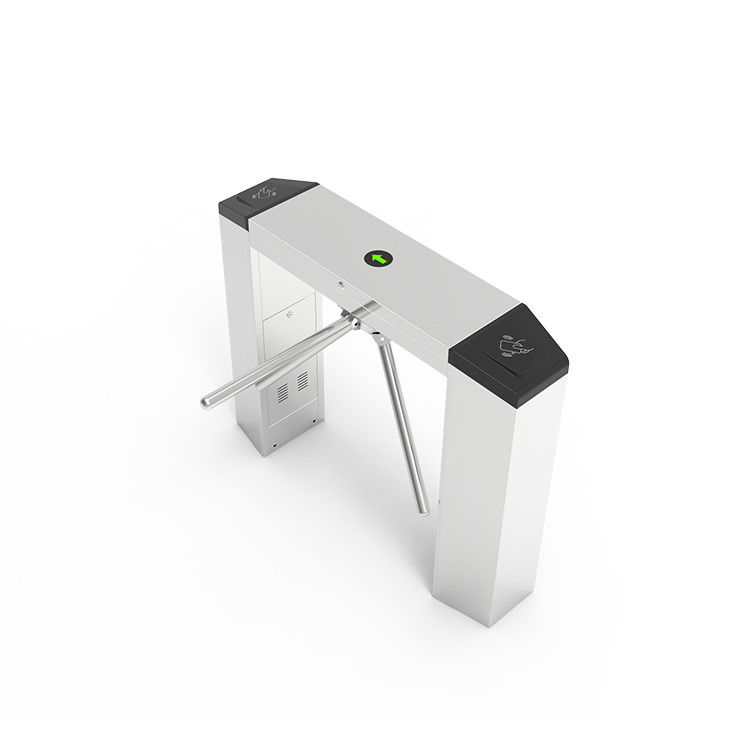

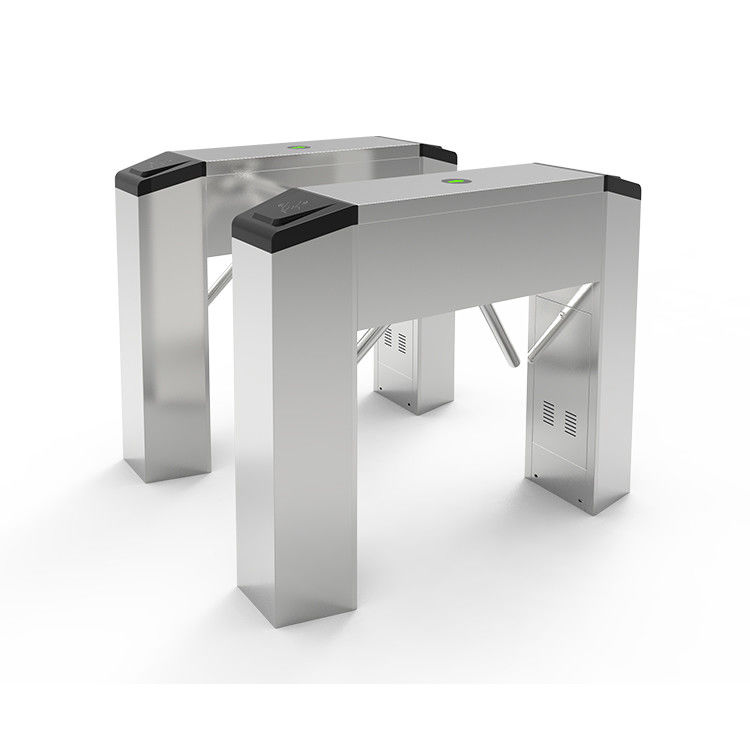

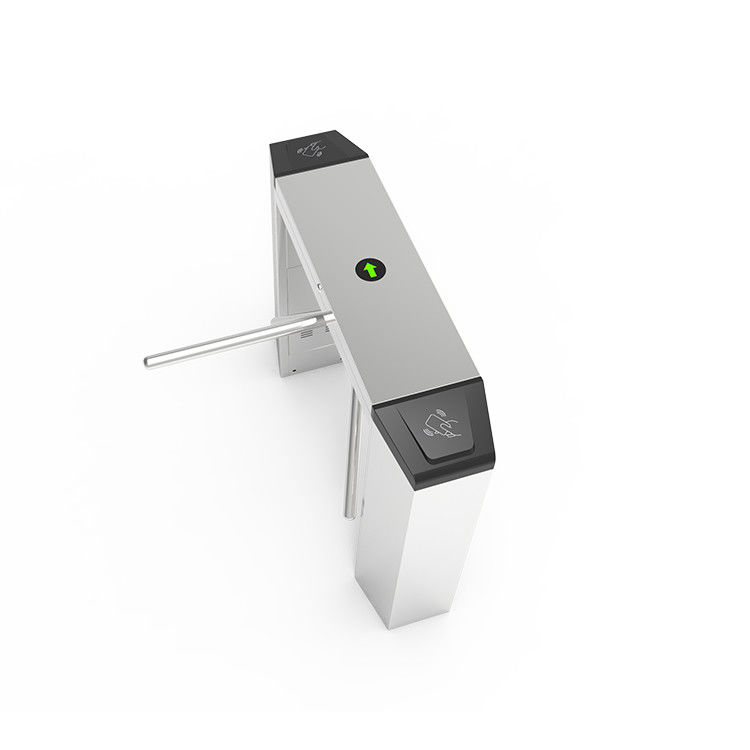

AG-PX11122802 Bi Direction Access Tripod Barrier Gate Turnstile Entry System
AG-PX11122802 304 stainless steel tripod turnstile is an advanced access control device, which is widely used in areas such as subway stations, bus stations, airports, scenic spots, and other places that require safe and efficient access control. The turnstile has three arms that are capable of rotating 120 degrees, allowing only one person to pass through at a time.
The turnstile is made of 304 stainless steel material, which has excellent corrosion resistance and can withstand harsh outdoor environments. It is equipped with a bi-directional control system, which can effectively prevent unauthorized access and provide smooth and reliable access control. The turnstile also has an anti-tailgating function, which can effectively prevent multiple people from passing through with one access card.
The turnstile operates with a high-precision optical sensor, which can quickly and accurately recognize valid access cards or tickets, and can work continuously without interruption for a long time. The turnstile can also be connected to a variety of access control systems, such as IC card, ID card, barcode, and fingerprint recognition systems.
In addition, the turnstile has a user-friendly interface design, which is easy to use and aesthetically pleasing. The turnstile has a variety of LED indicators, which can show the status of the turnstile in real-time, and can provide clear and intuitive prompts to users.
Overall, the 304 stainless steel tripod turnstile is a high-quality access control device that provides safe and efficient access control for various public places. It has excellent performance, durability, and aesthetic appearance, making it an ideal choice for access control systems.
Please check in this youtube link for turnstile video: https://youtube.com/shorts/tOEEtEs1pFE?feature=share
Specification
| Specification | |
| Product Size | 1200*280*980mm |
| Material | SUS 304 stainless steel |
| Thickness | Top:1.2mm+body1.0mm |
| Pass Width | 550mm |
| Passage Direction | Single directional/Bi-directional |
| Throughput Rate | 30p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 3A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Driving Mode | Semi-auto |
| Indication | LED direction indication |
Details
Functionality
AG-PX11122802 Tripod Turnstile
1, which is a gate that can be used both inside and outside.
2, The gate is compatible with face recognition technology, IC readers, RFID readers, and QR readers.
3, There are options for stainless steel in various thicknesses.
4, There are options for manual tripod turnstile too.
5. A customized turnstile gate service is offered.
Projects
Customization Available
In order to make the gate more appropriate for your projects, we may also change its settings or design to fit various circumstances for you. Our sales team is always available to you.
