Place of Origin:
China
Brand Name:
HPT
Certification:
CE； FCC ISO
Model Number:
AG-PX13423302
Contact Us

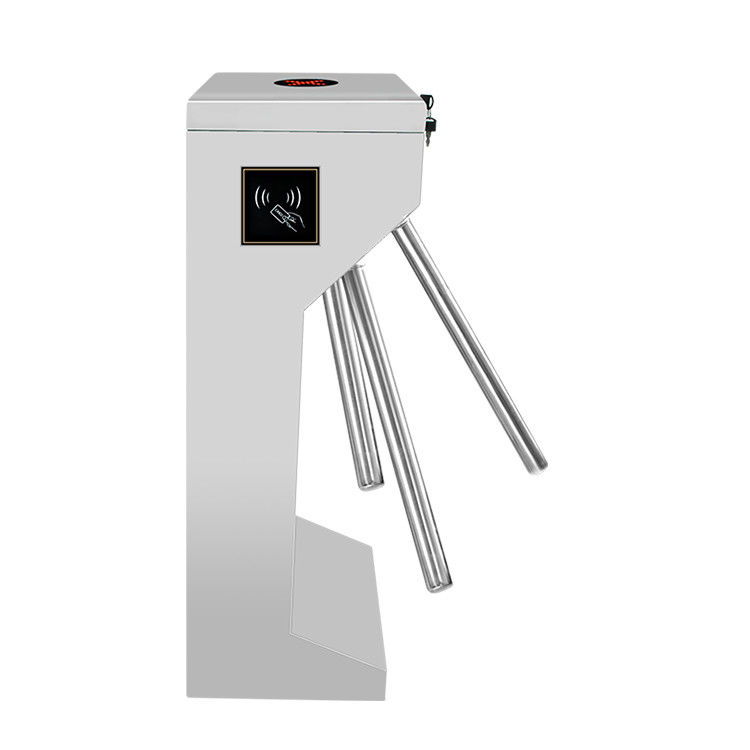

AG-PX13423302 Vertical Tripod Turnstile Outdoor Turnstile Gate For Pedestrian Management
The tripod turnstile AG-PX13423302 is a security device that is commonly used to control access in areas such as office buildings, train stations, stadiums, and other public places. It consists of three arms or bars that rotate to allow entry or exit for one person at a time. The device is typically designed to prevent unauthorized access and restrict the flow of foot traffic in high-security areas.
The tripod turnstile is an effective security solution that is easy to install and operate. It provides reliable performance and features a durable, weather-resistant construction that is suitable for indoor and outdoor use. The turnstile can be controlled using keycards, radio-frequency identification (RFID) cards, or biometric readers, depending on the level of security required.
In addition, the turnstile is designed with safety features such as anti-tailgating and anti-trap mechanisms, which prevent unauthorized access and protect users from injury. The turnstile can also be customized with a variety of finishes and colors to match the décor of the surrounding environment.
Overall, the tripod turnstile is an ideal security solution for any facility that requires control over who enters and exits the premises. Its versatility, durability, and reliability make it a popular choice for many businesses and organizations around the world.
Specification
| Specification | |

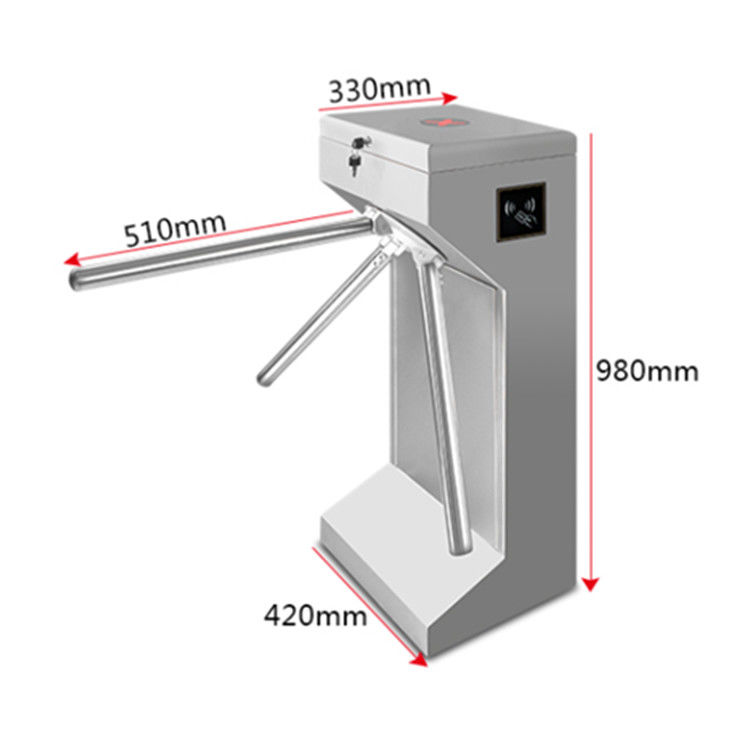

| Product Size | 420*330*980mm |
| Material | SUS 304 stainless steel |
| Material Thickness | Top:1.2mm+body1.0mm |
| Throughput Rate | 30p/m |
| Pass Width | 550mm |
| Passage Direction | Single directional/Bi-directional |
| Throughput Rate | 30p/m |
| Driving Voltage | DC24V 3A |
| Power Input | AC110~220V±10% |
| Working Temperature | ·-20~+70℃ |
| Driving Mode | Semi-auto |
| Indication | LED direction indication |
Functionality
1) The entire system runs smoothly with small noise and little mechanical impact.
4) It has failure self-detect function.
5) Single-directional/bidirectional (Entering/Exiting) accessing optional.
6) Turnstile arms automatic fall down : the turnstile barriers will fall down when power is off, and need to install back manually when power on.
7) It has anti-trailing function: Only one person with authorization can pass each time. if someone is trailing, the arms will automatically lock.
8) The tripod turnstile also “anti-reversal”: turnstile barrier will stop when someone tried to pass the turnstile from a false direction.
9) It is anti-collision: After the tripods forcefully open, you can pull the three arms to the original position by hand or swipe card or power off, then the arms can return to the original position, and the operation is very convenient.
10)The tripod gate turnstile has a unified, standard interfaces which connect to a variety of readers and devices to receive relay signal to integrate with access control systems.
11)The tripod turnstile also has different operation modes: It can be connected to control signal or button or remote control to achieve single-way or double-way control. “two-way limited access”, “one-way limited access”. The working mode can be set on control board.
Projects
Customization Available
In order to make the gate more appropriate for your projects, we may also change its settings or design to fit various circumstances for you. Our sales team is always available to you.
