Weather Resistant Tripod Access Control , Semi Automatic Tripod Gate Turnstile

Weather Resistant Tripod Access Control , Semi Automatic Tripod Gate Turnstile

Weather Resistant Tripod Access Control

Tripod Gate Turnstile

Semi Automatic Tripod Gate

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
SUS304 Stainless Steel
Product Name:
Semi-automatic Tripod Turnstile
Working Environment:
-20-70 Degree
Power Supply:
Passage Width:
RS485 TCP/IP, RS232, RS232/485
Pass Speed:
20~30 P/M
Payment & Shipping Terms
Product Description

AG-PX13423302 Automatic Security Barrier Gate System Turnstile Semi Automatic Tripod Turnstile


AG-PX13423302 tripod turnstile is a high-quality security turnstile that is designed to control pedestrian access into and out of a secure area. It is a tripod-style turnstile with three arms that rotate to allow entry or exit once the user has presented the appropriate access credentials such as a keycard, barcode, or fingerprint etc.


Our turnstile is made with durable materials including stainless steel and has a modern, sleek design that fits well in any environment. It is easy to install and can be configured to work with a variety of access control systems.


The AG-PX13423302 turnstile is ideal for use in areas such as office buildings, schools, shopping centers, and other public places where pedestrian access control is needed. It provides a high level of security, preventing unauthorized access and maintaining a high level of safety for all those inside the secure area.


Overall, the tripod turnstile is a reliable and effective solution for managing pedestrian access and ensuring the security of your premises.

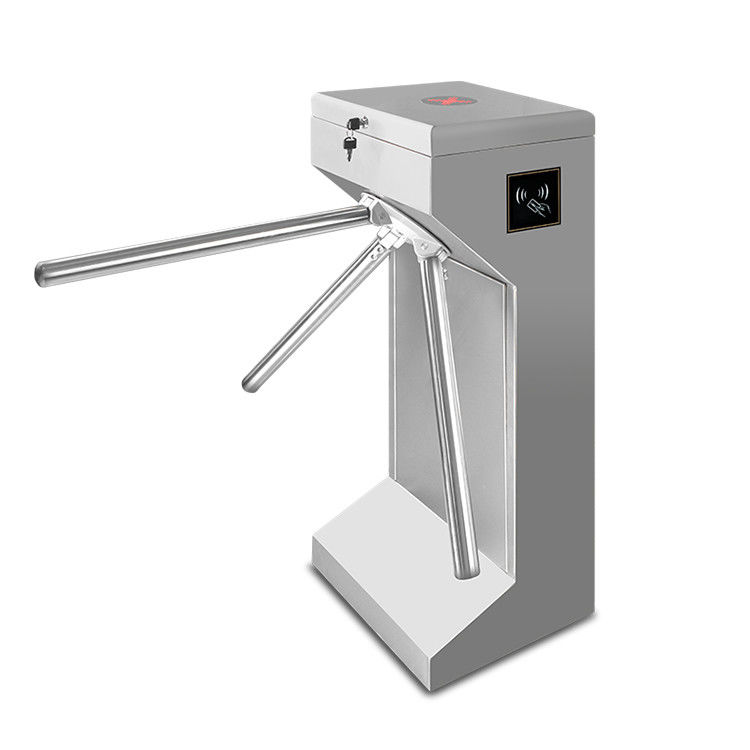

Weather Resistant Tripod Access Control , Semi Automatic Tripod Gate Turnstile 0



Product Size 420*330*980mm
Material SUS 304 stainless steel
Material Thickness Top:1.2mm+body1.0mm
Throughput Rate 30p/m
Pass Width 550mm
Passage Direction Single directional/Bi-directional
Throughput Rate 30p/m
Driving Voltage DC24V 3A
Power Input AC110~220V±10%
Working Temperature ·-20~+70
Driving Mode Semi-auto
Indication LED direction indication



- Durable and weather-resistant construction

- Single/Bi-directional rotation for easy access control

- Compatibility with a wide range of access control systems

- Auto-reset mechanism in case of obstruction

- High throughput rate for rapid pedestrian flow

- LED indicators for clear user guidance and feedback.



1) The entire system runs smoothly with small noise and little mechanical impact.

4) It has failure self-detect function.

5) Single-directional/bidirectional (Entering/Exiting) accessing optional.

6) Turnstile arms automatic fall down : the turnstile barriers will fall down when power is off, and need to install back manually when power on.

7) It has anti-trailing function: Only one person with authorization can pass each time. if someone is trailing, the arms will automatically lock.

8) The tripod turnstile also “anti-reversal”: turnstile barrier will stop when someone tried to pass the turnstile from a false direction.

9) It is anti-collision: After the tripods forcefully open, you can pull the three arms to the original position by hand or swipe card or power off, then the arms can return to the original position, and the operation is very convenient.

10)The tripod gate turnstile has a unified, standard interfaces which connect to a variety of readers and devices to receive relay signal to integrate with access control systems.

11)The tripod turnstile also has different operation modes: It can be connected to control signal or button or remote control to achieve single-way or double-way control. “two-way limited access”, “one-way limited access”. The working mode can be set on control board.



Weather Resistant Tripod Access Control , Semi Automatic Tripod Gate Turnstile 1


Customization Available

In order to make the gate more appropriate for your projects, we may also change its settings or design to fit various circumstances for you. Our sales team is always available to you.
