Place of Origin:
China
Brand Name:
HPT
Certification:
CE; FCC; ISO
Model Number:
AG-PX45141402
Contact Us

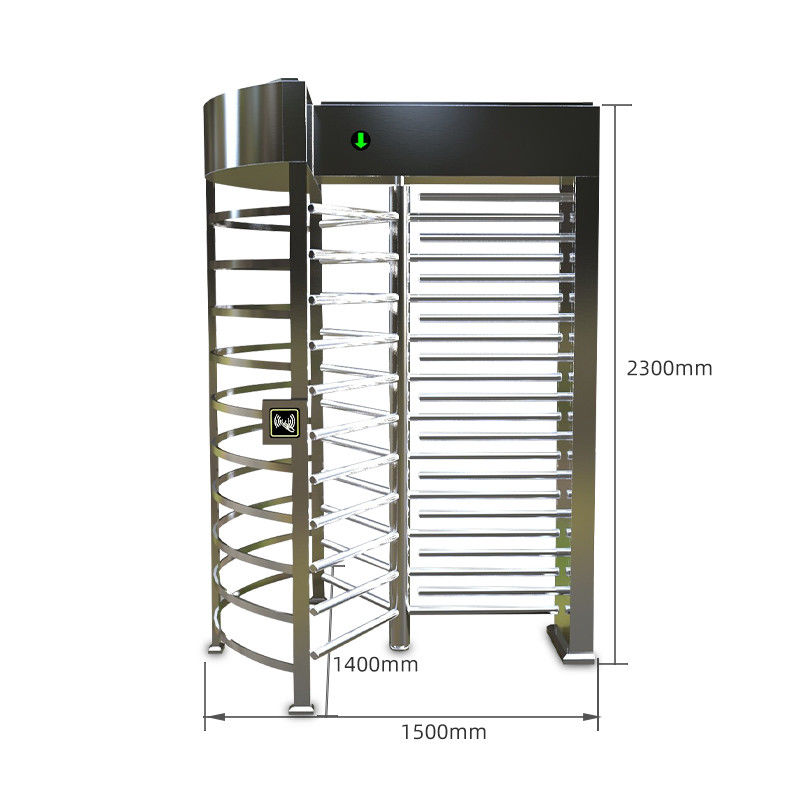

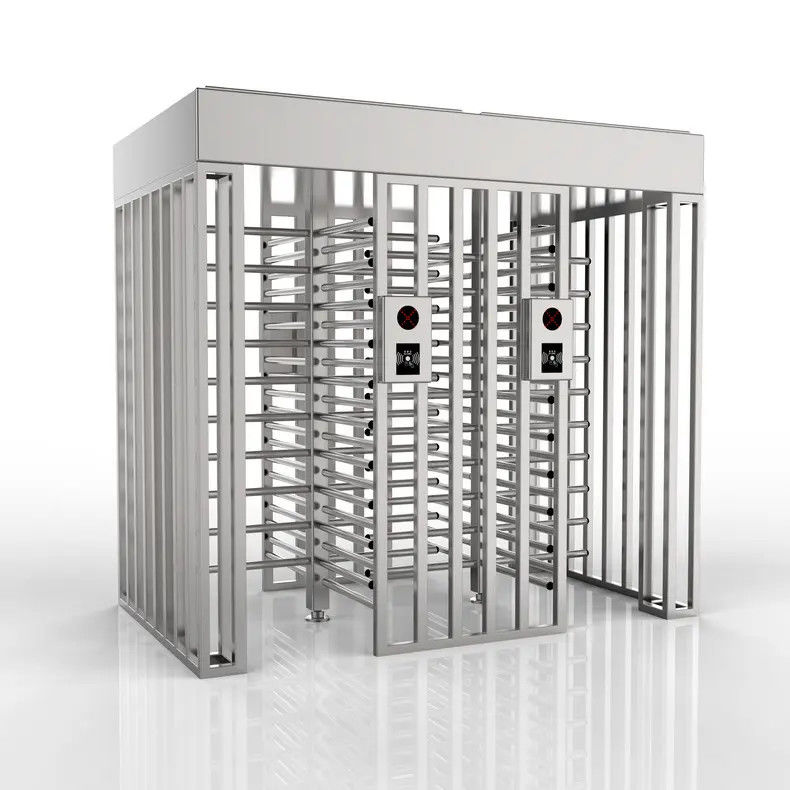

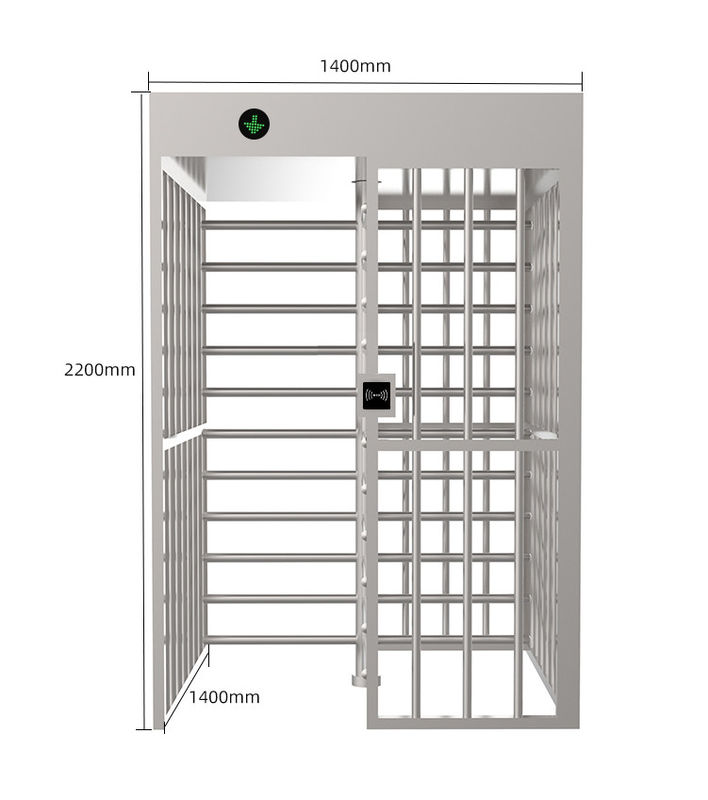

Turnstile Full Height Automatic Full Body Turnstile
AG-PX45141402 high turnstile is a type of gate used to control access to secure areas in buildings or public transportation systems. It consists of vertical bars that rotate to allow one person at a time to pass through. It also incorporate security features, such as electronic access control, sensors, or cameras. It is can also be available in different sizes, shapes, and materials to suit different environments and requirements. If you can provide more details about the specific high turnstile, I can assist you better
Specification
| Specification | |
| Model | AG-PX45141402 |
| Demension | 1400*1400*2200mm |
| Material | 304 stainless steel |
| Passage Width | 600mm |
| Driving Voltage | 24V |
| Access Direction | Single directional/Bi-directional |
| Turnbuckle Process | Welding sealing |
| Access Type | Single Access |
Functionality
1) Automatically low noise mechanism core equipped, highly cost-performance
2) Sense positioning, reducing mechanical impact make lifetime longer
3) Operating efficiency, 1~2 seconds open & close
4) Lowest Noise : No matter in operating or outside control, Noise control under 30db
5) Self-checking and Alarm warning for maintain
6) Resetting: System cancel authorized pass if passenger delayed pass
Anti-following : prevent illegal passing
Anti-clamp: The wings will stopped during in external block, the wings reset again after default delay
9) The rotary arms will be locked automatically if the system do not receive IR signal
10) Multi-passage for variety application demands , cover 99% needs on earth
11) Programmable signal separate control: pass time, pass speed etc. parameter
12) RS232/RS485 interface meet all kind of communications or wireless connection
Compatible IC/ID card, flexible couple
Long-distance management through COMPUTER
15) Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm
Projects
Customization Available
In order to make the gate more appropriate for your projects, we may also change its settings or design to fit various circumstances for you. Our sales team is always available to you.
