Place of Origin:
China
Brand Name:
HPT
Certification:
CE; FCC; ISO
Model Number:
AG-TX68202002
Contact Us

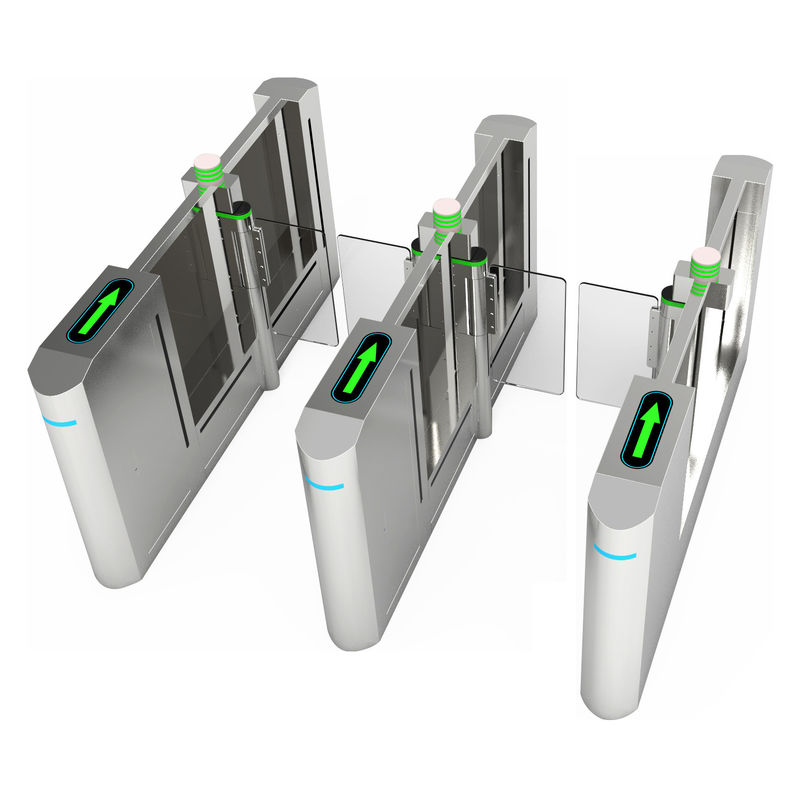

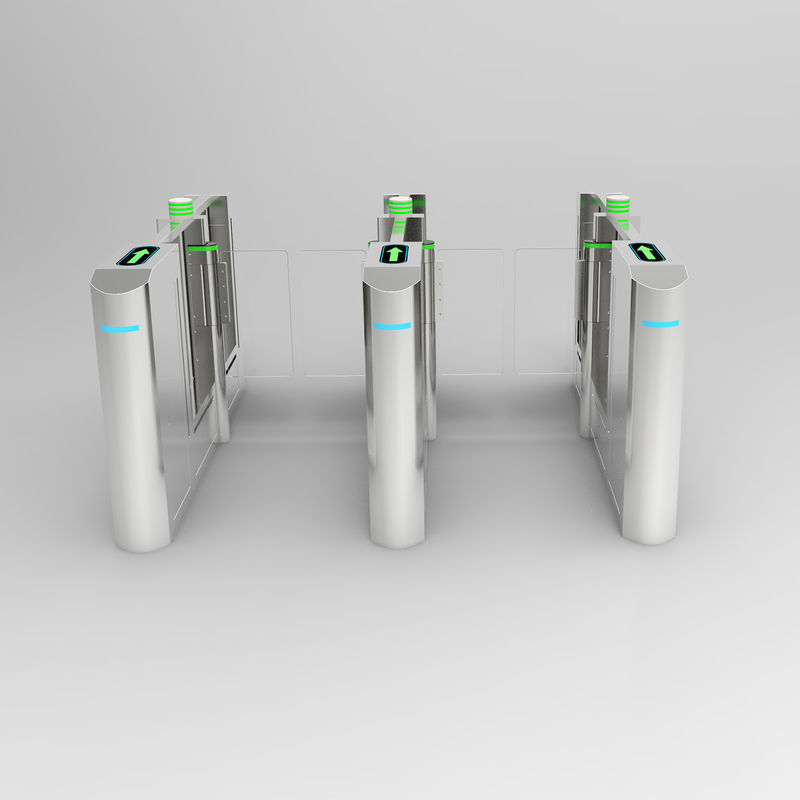

AG-TX68202002 Recent Technology Motor Servo Speed Gates For Train Stations
AG-TX68202002 accessing train station speed gate is compatible with management system valid ticket or pass, or payment through a contactless payment method. Once a valid entry is accepted by the speed gate, passengers can proceed towards the designated platform for boarding their train. Similarly, while exiting the train station, passengers are required to swipe or tap their ticket or pass on the speed gate to confirm their destination and fare payment before exiting. The speed gate can operate by scanning the barcode or electronic chip embedded in a ticket or pass, and is designed to prevent fare evasion and ensure the safety and security of passengers within the station premises.
Specification
| Specification | |
| Product Size | 2000*200*1000mm |
| Material | SUS 304 stainless steel; vacuum plating |
| Thickenss | 2.0mm |
| Passage Direction | Single directional/Bi-directional |
| Passage Width | Standard: 600mm (customizable:600~900mm) |
| Wing Hight | 1600mm |
| Sensor | 32 beam paths per lane |
| Throughput Rate | 45~60p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 6.25A |
| Working Temperature | -20~+70℃ |
| Motor | Servo Motor |
| Acoustic Alarm | Yes |
| Direction LED | Yes |
| Port | Relay/RS485/RS232 |
Functionality
Projects
Customization Available
In order to make the gate more appropriate for your projects, we may also change its settings or design to fit various circumstances for you. Our sales team is always available to you.
