Security Pedestrian Speed Gates Turnstyle Automatic Gates With Ticketing Systems

Security Pedestrian Speed Gates Turnstyle Automatic Gates With Ticketing Systems

Security Pedestrian Speed Gates

FCC destrian Speed Gates

Turnstyle Automatic Gates

Place of Origin:

China

Brand Name:

HPT

Certification:

CE; FCC; ISO

Model Number:

AG-TX68202002

Contact Us

Request A Quote
Product Details
Product Name:
Railway Turnstile
Material:
SUS304 Stainless Steel
Dimension:
2000x200x1000mm
Power Range:
110~240V
Driving Motor:
Servo Motor
Thickness:
2.0mm
Payment & Shipping Terms
Product Description

AG-TX68202002 Train Stations Access Control Solutions Compatible With Ticketing Systems



The New and Improved Speed Gate Turnstile AG-TX68202002 for Train Stations



For any train station, ensuring the safety and security of its passengers is a top priority. One way to achieve this is by implementing the accessing speed gate turnstile, the latest innovation AG-TX68202002 speed gate in access control systems that take security to a whole new level. This highly advanced turnstile can now be found in several train stations across the globe and has become a popular choice for commuters seeking a smart and efficient entry and exit experience.



The speed gate turnstile is designed to provide a secure and reliable entrance/exit system that helps train stations maintain the highest level of security while being easily accessed by authorized personnel only. The gate barriers provide a sleek and smooth transition from the outside to the inside of the station allowing passengers to feel confident and safe as they embark on their journey.



The latest model AG-TX68202002 speed gates is equipped with state-of-the-art technology for improved efficiencies in passenger boarding and exiting. These gate features a variety of readers work together to prevent unauthorized access as well as ensure that only the right passenger gains access to the train station.



Besides security, speed gates are also designed with an impressive set of features that make them the perfect solution for busy train stations that need to manage traffic flow quickly and smoothly. These gates are manufactured with durable and high-quality materials to withstand heavy traffic, harsh weather, and extreme conditions. Additionally, the gate barriers have been designed to work seamlessly with existing ticketing systems, so rail staff can easily monitor, record, and manage boarding and alighting passengers.



The new and improved speed gate for train stations is the ultimate solution for the challenges that come with managing passengers' flow in busy stations. It provides the highest level of security while keeping passengers comfortable and providing them with a uniquely modern expereince. The smart features of the speed gate turnstile make it an efficient solution for traffic flow management which ensures a smooth and seamless experience for passengers entering and exiting the train station.

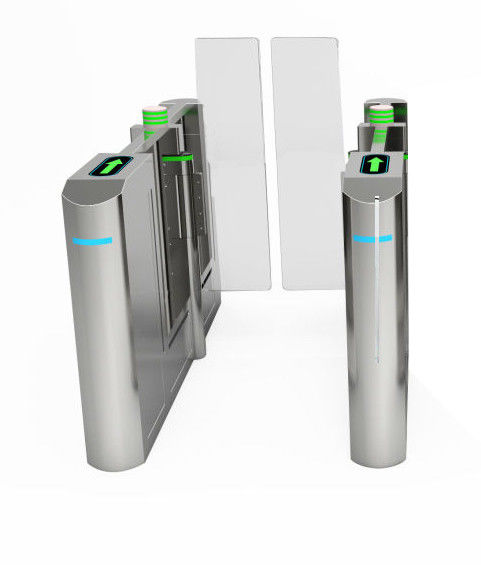

Security Pedestrian Speed Gates Turnstyle Automatic Gates With Ticketing Systems 0





Specification

Specification
Product Size 2000*200*1000mm
Material SUS 304 stainless steel; vacuum plating
Thickenss 2.0mm
Passage Direction Single directional/Bi-directional
Passage Width Standard: 600mm (customizable:600~900mm)
Wing Hight 1600mm
Sensor 32 beam paths per lane
Throughput Rate 45~60p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature -20~+70
Motor Servo Motor
Acoustic Alarm Yes
Direction LED Yes
Port Relay/RS485/RS232



Functionality

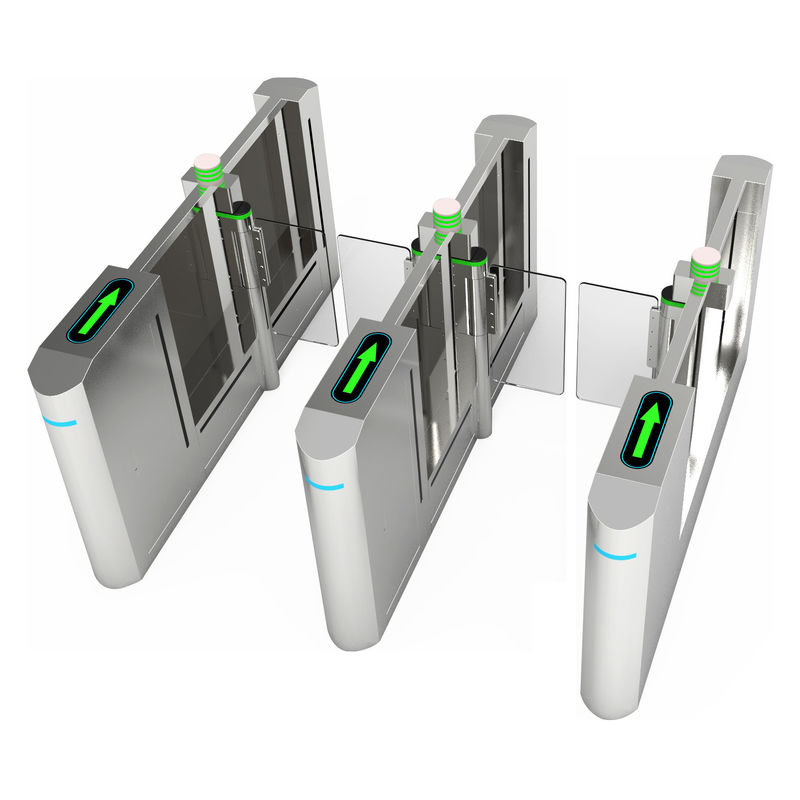

                            Security Pedestrian Speed Gates Turnstyle Automatic Gates With Ticketing Systems 1

Projects

Security Pedestrian Speed Gates Turnstyle Automatic Gates With Ticketing Systems 2



Customization Available

In order to make the gate more appropriate for your projects, we may also change its settings or design to fit various circumstances for you. Our sales team is always available to you.
