Place of Origin:
China
Brand Name:
HPT
Certification:
CE; FCC; ISO
Model Number:
HPT-DZ210
Contact Us

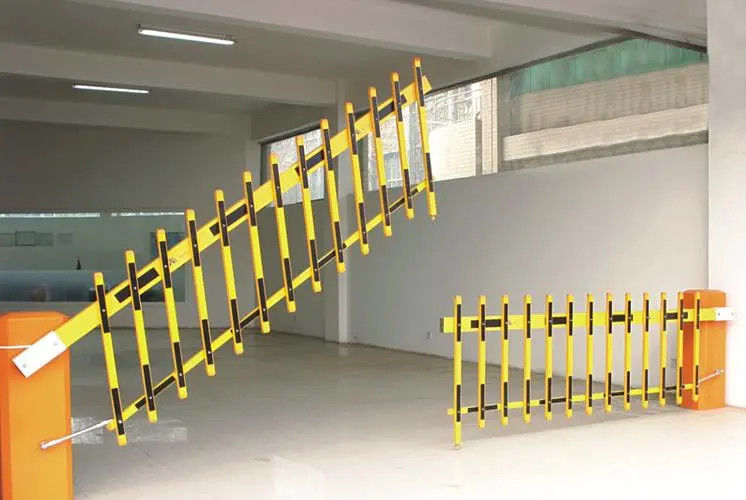

DZ210 Manual Boom Barrier Gate Security Traffic Barrier Gate For Concert Event
Product Description
HPT DZ210 - our state-of-the-art Security Traffic Barrier Gate, designed to provide robust and reliable access control for a wide range of applications. Our barrier gate is the ultimate solution for managing vehicle traffic at facilities such as commercial complexes, residential complexes, airport, hospitals, toll plazas, and parking structures.
Our Security Traffic Barrier Gate is constructed with a robust and durable structure that is resistant to harsh weather conditions, tampering, and forceful impacts from vehicles. It is designed with a powerful motor, enabling fast and seamless operation while providing unparalleled reliability and performance, even in high-traffic locations.
Additionally, our Security Traffic Barrier Gate comes with a variety of advanced features, including integrated LED lights for high visibility, user-friendly controls, and the ability to integrate with various access control systems. It is also equipped with a manual override feature, allowing security personnel to operate the gate in the event of a power failure.
Our Security Traffic Barrier Gate is an essential component of any access control system, providing a barrier that impedes unauthorized access and keeps your premises secure. We pride ourselves on delivering products that meet the highest standards of reliability, performance, and efficiency. Trust us to provide you with the perfect solution for your traffic management needs.
I. Mechanical Characteristics
l The barrier gate body is durable and waterproof, which is suitable for outdoor use.
l The barrier gate is equipped with integrated mechanism which adopts full mold quantitative production, greatly improving stability and operation precision of the barrier gate.
l The barrier gate is equipped with precise three linkage bar mechanism, which makes sure when the barrier operates without impact. The mechanism can effectively reduce jitter of the barrier gate, reduce the load of the motor and prolong the service life of the barrier gate.
l The barrier gate adopts 100W integrated gear DC motor with smooth transmission, low noise, and compact structure. No impact will be generated when the barrier gate is blocked, which can protect the controller and prolong the service life of the controller.
II. Electrical Characteristics
l The barrier gate system is highly integrated and powerful.
l The barrier gate adopts barrier lifting and dropping timeout protection and the motor has overheating protection preventing abnormal damage of the barrier gate. The barrier gate can operate 24/7.
l The barrier gate adopts high end and high-power relay to ensure reliable operation of the barrier gate.
l The barrier gate is equipped with high end photoelectric isolation protection circuit to ensure signal integrity and strong interference resistance.
l The barrier gate adopts wireless remote control receiving module with integrated high performance million group learning code to ensure the stability of operation.
l The barrier gate adopts unique arc extinguishing processing circuit to ensure the service life of the control board.
l The barrier gate adopts transformer with high-end magnetic core, which can work stably in damp and harsh environment.
l The barrier gate system integrated optical, electrical, mechanical control in one, which is flexible and convenient in operation, safe and reliable in use.
III. Security Characteristics
l Anti-hit protection (anti-hit pressure wave). In the process of barrier arm falling, if the barrier arm is blocked by external forces, the barrier arm will automatically lift reducing the damage caused by accidents.
l Anti-hit ground loop. In the process of barrier arm falling, if the barrier arm receives ground loop signals, the barrier arm will automatically lift. When the ground loop signals disappear, the barrier arm will automatically drop down to ensure safety.
l Priority for opening. In the process of barrier arm falling, and in case of emergency, whether in the opening or closing operation state, as long as the opening signal is received, the barrier arm will perform the opening action.
Performance characteristics:
1. The motor power is 100W, which is energy saving and can prevent motor overheating to ensure the motor high-speed operation nonstop.
2. The barrier gate adopts one to two coil springs. The force adjustment range of barrier arm is large.
Ⅳ. Technical Parameters
| Working Voltage | 24V+10%/50HZ |
| Motor Power | 100W |
| Working Temperature | -30℃～80℃ |
| Relative Humidity | ≤95% |
| Length of Barrier Arm | Can be customized |
| Time of Barrier Arm Lifting | 1.5～6s generally |
| Height of Barrier Arm Center Above Ground | 850mm |
| Distance of Remote Control | ≤40m |
| Protection Level | IP44 |
| Input Interface | +12V level signal or >100ms pulse signal; <10mA drive current |
| Product Size | 340mm×280mm×1000mm |
V. Internal Structure
Customization Available
In order to make our gate more appropriate for your projects, we may also change the gate's settings or design to fit various circumstances. Contacting our sales team is always an option.
