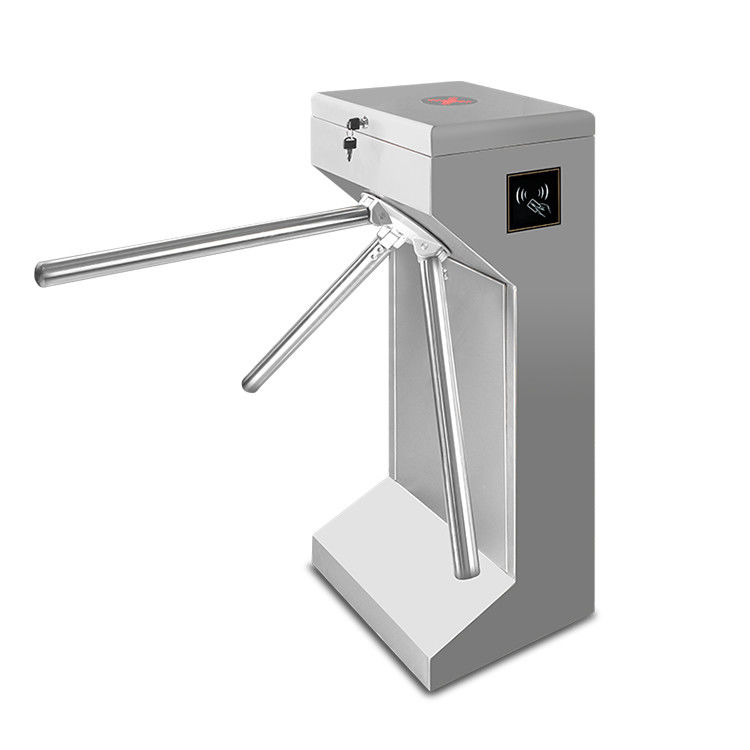

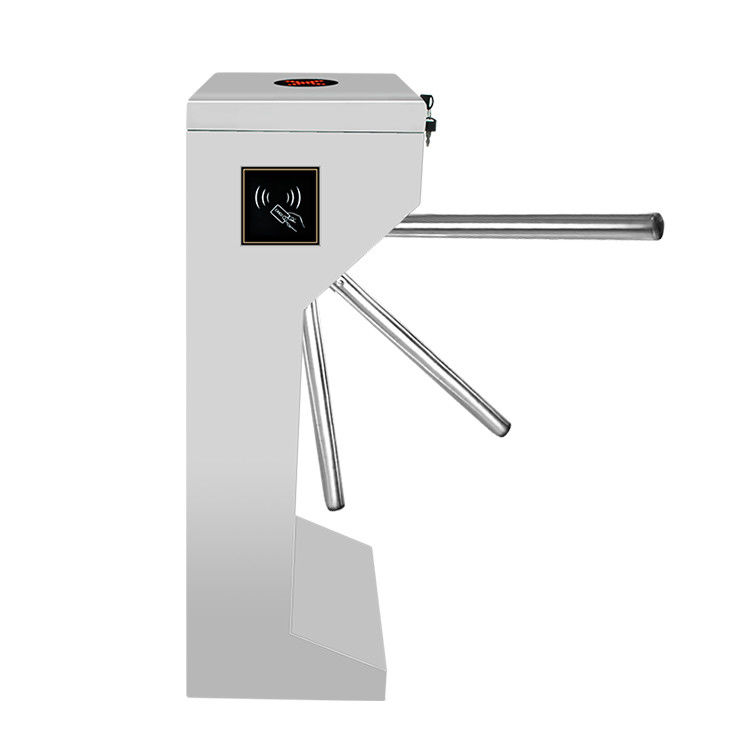

AG-PX13423302 Vertical Tripod Turnstile Outdoor Tripod Barrier Gate For Ourdoor Station
AG-PX13423302 smart tripod turnstile – the ultimate entry and access control solution for businesses and organizations of all sizes. Designed for controlled entry and exit points, this high-tech turnstile offers advanced features and functionality to ensure smooth, secure and efficient access control.
Equipped with biometric, card or key access, the Smart Tripod Turnstile provides a secure and reliable verification system that can handle high traffic volumes. Its robust construction with anti-tailgating technology ensures that only authorized personnel are allowed to enter and exit, making it ideal for businesses with high-value assets, sensitive information, or restricted areas.
Easy to install and operate, the Smart Tripod Turnstile is designed for indoor and outdoor use, and its modern, sleek design fits perfectly with any décor. Its intuitive user interface allows for quick and easy setup and customization, ensuring a seamless and hassle-free user experience.
Whether you are looking to enhance security, streamline access control or improve overall efficiency, the Smart Tripod Turnstile is the perfect solution for any business or organization. With its advanced features and functionality, it gives you total control over who enters and exits your premises, providing peace of mind and ensuring the safety of your staff and assets.
Specification
| Specification | |
| Product Size | 420*330*980mm |
| Material | SUS 304 stainless steel |
| Material Thickness | Top:1.2mm+body1.0mm |
| Throughput Rate | 30p/m |
| Pass Width | 550mm |
| Passage Direction | Single directional/Bi-directional |
| Throughput Rate | 30p/m |
| Driving Voltage | DC24V 3A |
| Power Input | AC110~220V±10% |
| Working Temperature | ·-20~+70℃ |
| Driving Mode | Semi-auto |
| Indication | LED direction indication |
Functionality
1) The entire system runs smoothly with small noise and little mechanical impact.
4) It has failure self-detect function.
5) Single-directional/bidirectional (Entering/Exiting) accessing optional.
6) Turnstile arms automatic fall down : the turnstile barriers will fall down when power is off, and need to install back manually when power on.
7) It has anti-trailing function: Only one person with authorization can pass each time. if someone is trailing, the arms will automatically lock.
8) The tripod turnstile also “anti-reversal”: turnstile barrier will stop when someone tried to pass the turnstile from a false direction.
9) It is anti-collision: After the tripods forcefully open, you can pull the three arms to the original position by hand or swipe card or power off, then the arms can return to the original position, and the operation is very convenient.
10)The tripod gate turnstile has a unified, standard interfaces which connect to a variety of readers and devices to receive relay signal to integrate with access control systems.
11)The tripod turnstile also has different operation modes: It can be connected to control signal or button or remote control to achieve single-way or double-way control. “two-way limited access”, “one-way limited access”. The working mode can be set on control board.
Projects
Customization Available
In order to make the gate more appropriate for your projects, we may also change its settings or design to fit various circumstances for you. Our sales team is always available to you.
