Automatic Full Height Turnstile Access Control For Train Station

Automatic Full Height Turnstile Access Control For Train Station

Automatic Full Height Turnstile

Full Height Turnstile Access Control

Train Station Full Length Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Full Height Pedestrian Turnstiles
304 Stainless Steel
Passage Width:
Access Direction:
Single Directional/Bi-directional
Payment & Shipping Terms
Product Description

Full High Turnstile For Trian Station


AG-PX45141402 Full Height Turnstile is turnstile used in pedestrian access control. The full-height turnstiles is designed to allow passage in one direction or two diretions. It is designed to interface with access control systems such as card readers, locks, etc.

The full-height turnstile is highly vandal-resistant and features a heavy-duty design with an in-built anti-tailgating or anti-passback capability. The turnstile is composed of a stainless steel cabinet, a mechanical rotating arm, an electric motor, and a special microcontroller module that controls the mechanism's running mode. The cabinet is made to resist weather and has a scratch-resistant finish.

The turnstile arms are magnetic in position until authorized access is gained. With the full-height turnstile, access control decision is taken entirely by the turnstile and no external help is needed. Whenever authorized person passes, the turnstile arm rotates and unlocks to allow passage.

The full-height turnstile is an ideal solution for any access control system in need of secure, reliable, and efficient access control for pedestrian entrances. It's highly robust and secure design make it an ideal fit for places where access control is a must, such as airports, train stations, stadiums, casinos, and more.

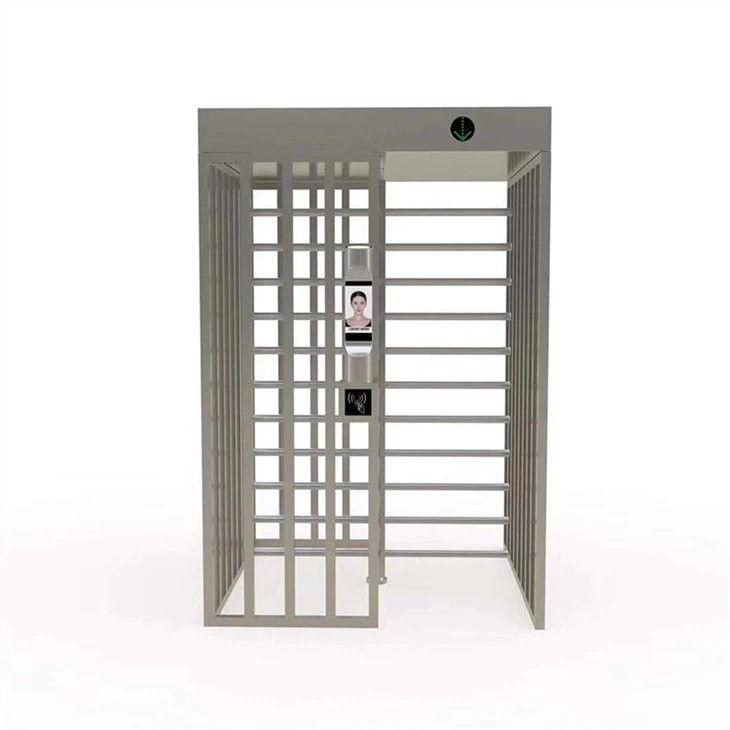

                          Automatic Full Height Turnstile Access Control For Train Station 0


Model AG-PX45141402
Demension 1400*1400*2200mm
Material 304 stainless steel
Passage Width 600mm
Driving Voltage 24V
Access Direction Single directional/Bi-directional
Turnbuckle Process Welding sealing
Access Type Single Access



1) Automatically low noise mechanism core equipped, highly cost-performance

2) Sense positioning, reducing mechanical impact make lifetime longer

3) Operating efficiency, 1~2 seconds open & close

4) Lowest Noise : No matter in operating or outside control, Noise control under 30db

5) Self-checking and Alarm warning for maintain

6) Resetting: System cancel authorized pass if passenger delayed pass

Anti-following : prevent illegal passing

Anti-clamp: The wings will stopped during in external block, the wings reset again after default delay

9) The rotary arms will be locked automatically if the system do not receive IR signal

10) Multi-passage for variety application demands , cover 99% needs on earth

11) Programmable signal separate control: pass time, pass speed etc. parameter

12) RS232/RS485 interface meet all kind of communications or wireless connection

Compatible IC/ID card, flexible couple

Long-distance management through COMPUTER

15) Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm

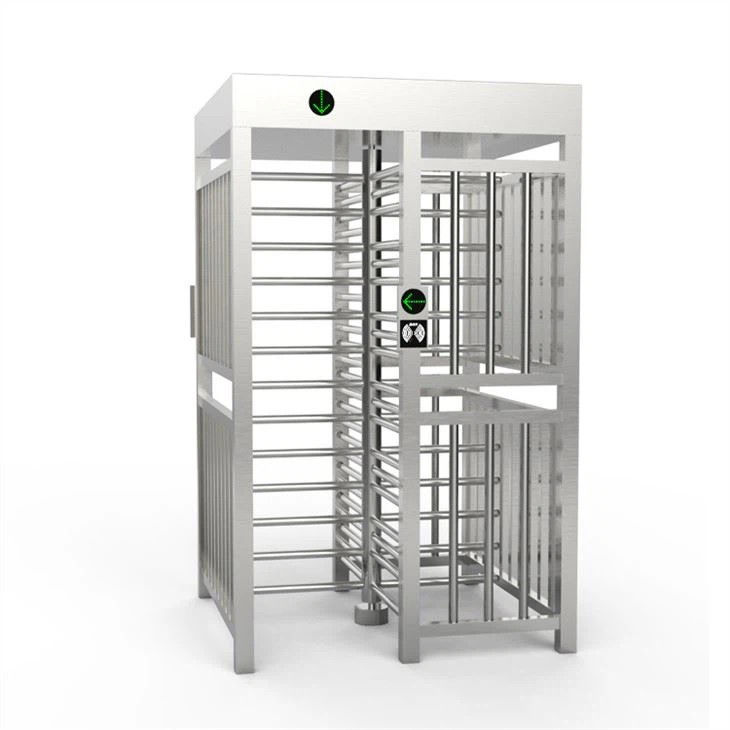

Automatic Full Height Turnstile Access Control For Train Station 1

Customization Available

In order to make the gate more appropriate for your projects, we may also change its settings or design to fit various circumstances for you. Our sales team is always available to you.
