High End Speed Gate Turnstile Patent Design For Inddoor / Outdoor

High End Speed Gate Turnstile Patent Design For Inddoor / Outdoor

High End Speed Gate Turnstile

Outdoor Speed Gate Turnstile

Inddoor Speedlane Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Fast Speed Lane Gate
Single Core:1600*231*980mm; Dual Core: 1600*312*980mm
1.2mm Thickess Stainless Steel
Driving Motor:
Brushless Servo Motor
Passage Width:
600 (standard) ~1200mm
5 Pairs Of IR Sensors
Dry Contact; RS485; RS232
Power Supply:
AC110~AC220 +/- 10%
Application Environment:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
film + EPE + Carton + Wooden Case
Supply Ability
1~10 units, 3~7 working days; 10~30 units, 10~15 working days; 30~50+ 15~20 working days.
Product Description

High End Speed Gate Turnstile New Appearance Patent Design Pedestrian Turnstile Gate



Please see product video in youtube link:


Product Description


HPT Sirius series turnstile gate is one of the latest appearance design from HPT Technology. AG-TX68162302 high-end speed gate from HPT Siruis series is a type of entry control system designed for high-security areas, such as airports, government buildings, and high-end corporate offices. These gates employ advanced technologies and sophisticated sensors to provide secure and efficient access control for authorized personnel.


Typical high-end speed gates feature sleek and sophisticated designs that blend seamlessly with modern architectural designs. They are highly customizable to meet the specific requirements of different facilities. Some popular customization options include biometric sensors, turnstile barriers, and LED lighting. The gates also come equipped with various security features such as infrared sensors and anti-tailgating systems to prevent unauthorized entry.


The speedlane gates are highly efficient and can process a large number of people in a short amount of time. They are equipped with high-speed motors and sensors that ensure smooth and fast movements while maintaining the highest level of security. The gates can be integrated with various access control devices such as smart cards, fingerprint scanners, and facial recognition technology.


One major advantage of high-end speed gates is their ability to collect data and provide real-time insights on the traffic flow within a facility. This feature enables facility managers to detect potential security breaches and optimize entry and exit processes, improving overall security and efficiency.


In conclusion, high-end speed gates are essential for any facility that requires advanced security and efficient access control processes. With customizable designs and advanced security features, these gates provide a sophisticated solution for high-end security needs.

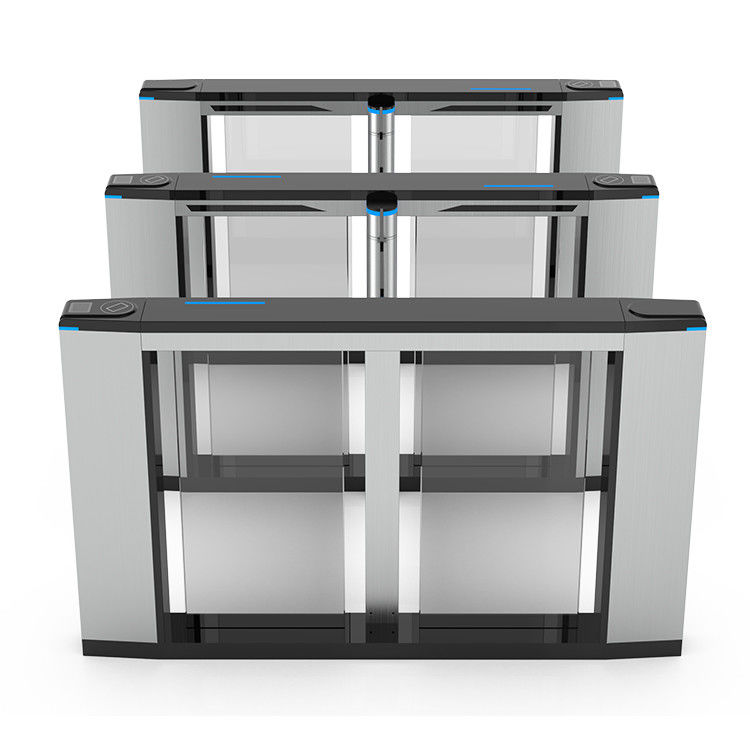

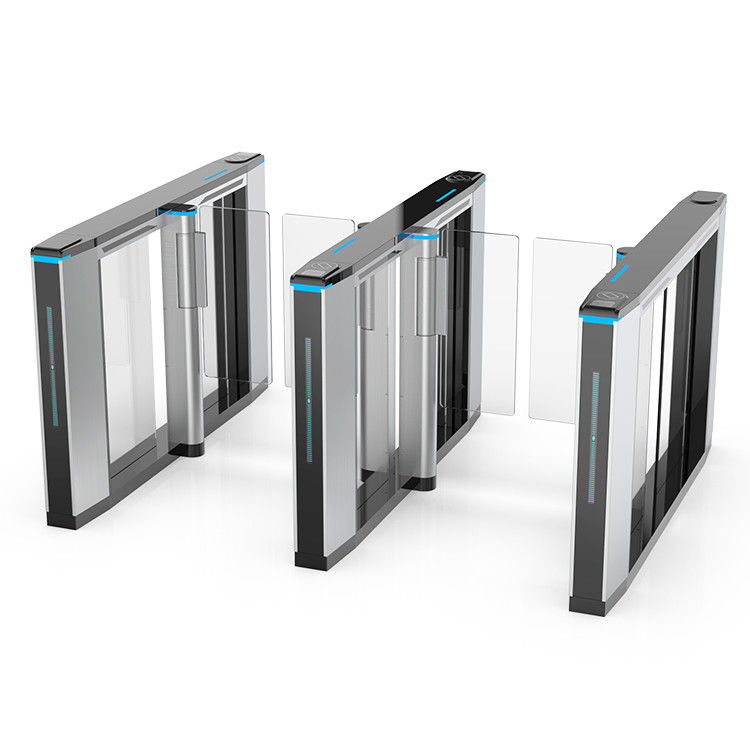

High End Speed Gate Turnstile Patent Design For Inddoor / Outdoor 0High End Speed Gate Turnstile Patent Design For Inddoor / Outdoor 1

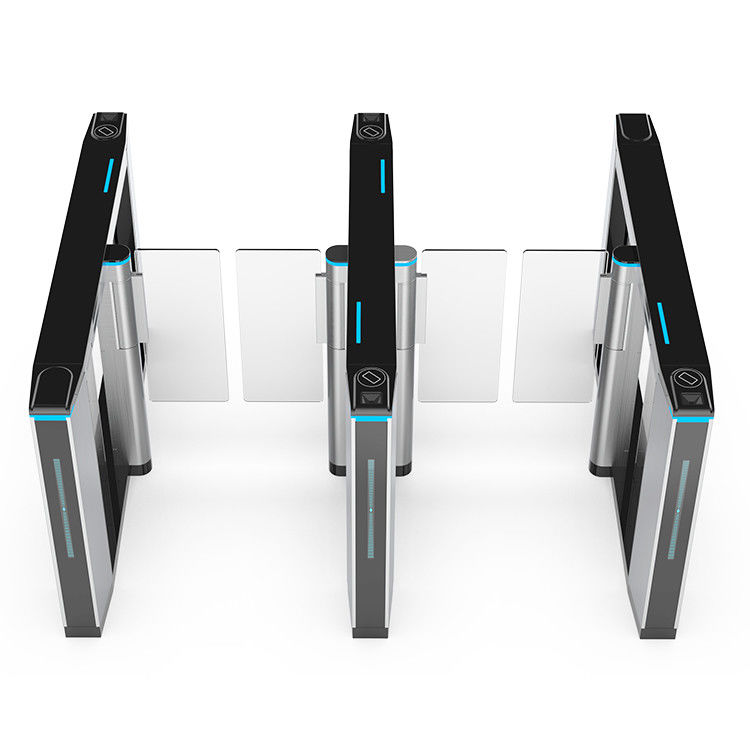

High End Speed Gate Turnstile Patent Design For Inddoor / Outdoor 2



Product Size single wing:1600*231*980mm
dual wing: 1600*312*980mm
Material SUS 304 stainless steel + SPCC
Thinkness Top:1.2mm+body1.2mm
Passage Direction Single directional/Bi-directional
Standard Channel Width 600mm (≤900mm optional)
Sensor 5 pairs of active infrared intrusion detector
Throughput Rate 40~60 p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless Servo Motor
Acoustic Alarm Buzzer Alarm
LED Triple Color LED





1, The gate can be integrated with different access control devices including RFID reader, ID reader, face recognition device and fingerprinte recognition etc.

2, It is equipped with light and acoustic alarm when someone wants to break in without authorization .

3, The system will automatically cancel the passing rights if visitor did not pass within setting time.

3, If visitor was caught by the turnstile wings, the turnstile wings will open to avoid people get hurt.

4, The turnstile is equipped with protection mechanism to protect its driving motor and wings when someone bump into the turnstile arms.

5, The turnstile motherboard has fire protection port.



Customization Avaible

To do changes on gate appearance and settings or passage width to adapt to different projects, or if you are looking for a OEM factory to realize your speed gate design, you are always welcome.




This gate is specially designed for high end places like museum, exhibition hall, hotel,  campus, office building, residential community and parks etc.

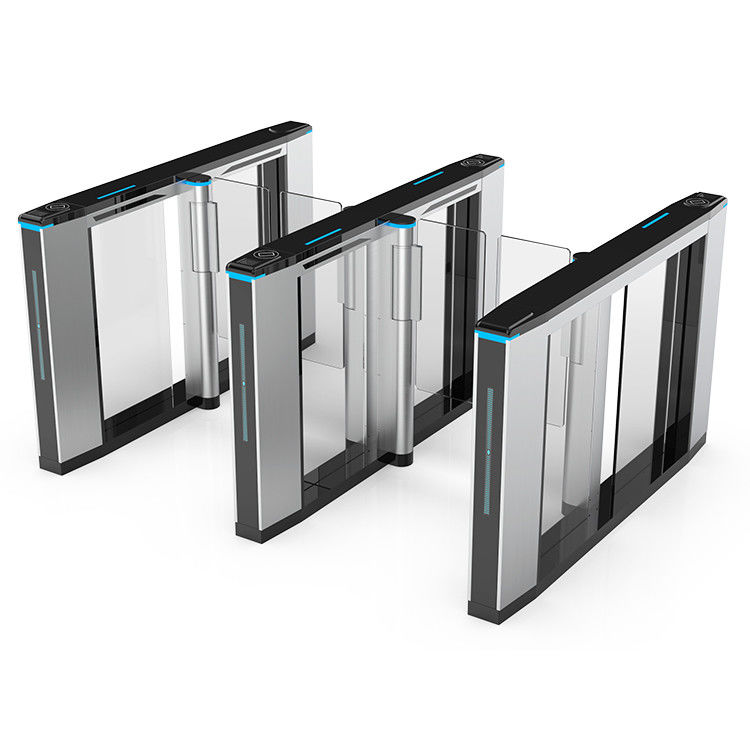

High End Speed Gate Turnstile Patent Design For Inddoor / Outdoor 3High End Speed Gate Turnstile Patent Design For Inddoor / Outdoor 4
