40P/M - 60P/M Speed Gate Systems , High Security Turnstile Entrance Gates

40P/M - 60P/M Speed Gate Systems , High Security Turnstile Entrance Gates

60P/M Speed Gate Systems

40P/M Speed Gate Systems

High Security Turnstile Entrance Gates

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Fast Speed Lane Gate
Single Core:1600*231*980mm; Dual Core: 1600*312*980mm
1.2mm Thickess Stainless Steel
Driving Motor:
Brushless Servo Motor
Passage Width:
600 (standard) ~1200mm
5 Pairs Of IR Sensors
Dry Contact; RS485; RS232
Power Supply:
AC110~AC220 +/- 10%
Application Environment:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
film + EPE + Carton + Wooden Case
Supply Ability
1~10 units, 3~7 working days; 10~30 units, 10~15 working days; 30~50+ 15~20 working days.
Product Description

Pass Rate 40~60 P/M Speed Gate Systems Turnstile Gate Access Control



Please see product video in youtube link:


Product Description

HPT Sirius series turnstile gate is one of the latested appearance design from HPT Technology. AG-TX68162302 Indoor/outdoor Pass-through speed gate from HPT Sirius series is a versatile product that is perfect for any home or business. It is a high-quality, reliable gate that can be used both indoors and outdoors. This door is perfect for commercial buildings, outdoor patio areas, or any area that requires a durable, convenient access tursitle solution.


The speed gate turnstile is designed with convenience in mind. It is easy to install and can be quickly converted to suit any opening size. It can be used as a single passage or as a double-passage or multi-passage system. The gate is made of durable materials such as aluminum and steel which makes it resistant to wear and tear. It's electronic components also comes with a weather-resistant seal that helps keep moisture and pests out.


The speedlane gate turnstile is also energy-efficient. It is designed to keep your indoor environments comfortable and your energy costs down. The gate’s design also decorated with LEDs which is ideal for businesses that want to create a welcoming and bright atmosphere.


The speed gate turnstile is perfect for homes and businesses that require quick and easy access . It is perfect for restaurants, clubs, and bars. With its durable construction, energy efficiency, and easy-to-use design, the gate is a perfect solution for your next indoor/outdoor door project.

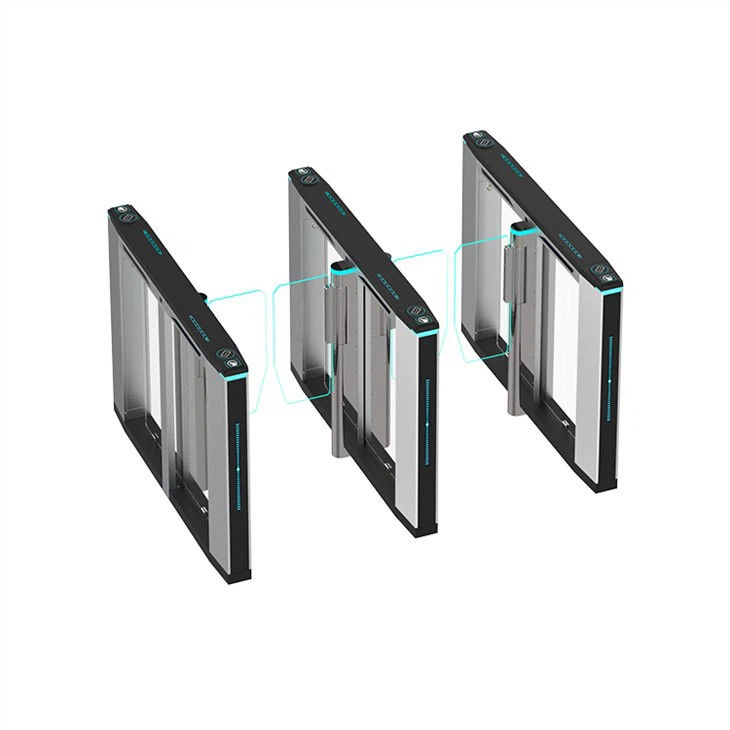

40P/M - 60P/M Speed Gate Systems  , High Security Turnstile Entrance Gates 0

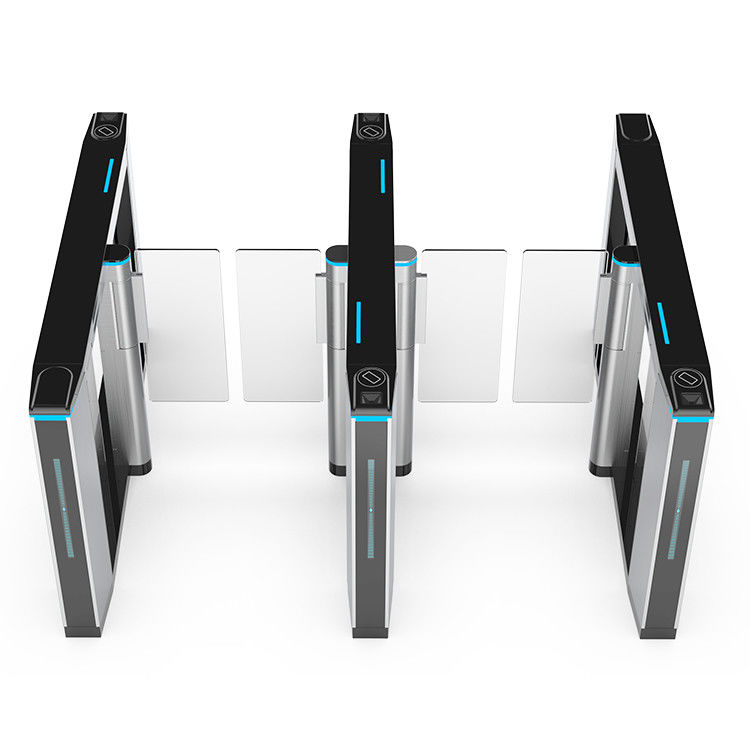

40P/M - 60P/M Speed Gate Systems  , High Security Turnstile Entrance Gates 1



Product Size single wing:1600*231*980mm
dual wing: 1600*312*980mm
Material SUS 304 stainless steel + SPCC
Thinkness Top:1.2mm+body1.2mm
Passage Direction Single directional/Bi-directional
Standard Channel Width 600mm (≤900mm optional)
Sensor 5 pairs of active infrared intrusion detector
Throughput Rate 40~60 p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless Servo Motor
Acoustic Alarm Buzzer Alarm
LED Triple Color LED





1, The gate can be integrated with different access control devices including RFID reader, ID reader, face recognition device and fingerprinte recognition etc.

2, It is equipped with light and acoustic alarm when someone wants to break in without authorization .

3, The system will automatically cancel the passing rights if visitor did not pass within setting time.

3, If visitor was caught by the turnstile wings, the turnstile wings will open to avoid people get hurt.

4, The turnstile is equipped with protection mechanism to protect its driving motor and wings when someone bump into the turnstile arms.

5, The turnstile motherboard has fire protection port.



Customization Avaible

To do changes on gate appearance and settings or passage width to adapt to different projects, or if you are looking for a OEM factory to realize your speed gate design, you are always welcome.




This gate is specially designed for high end places like museum, exhibition hall, hotel,  campus, office building, residential community and parks etc.

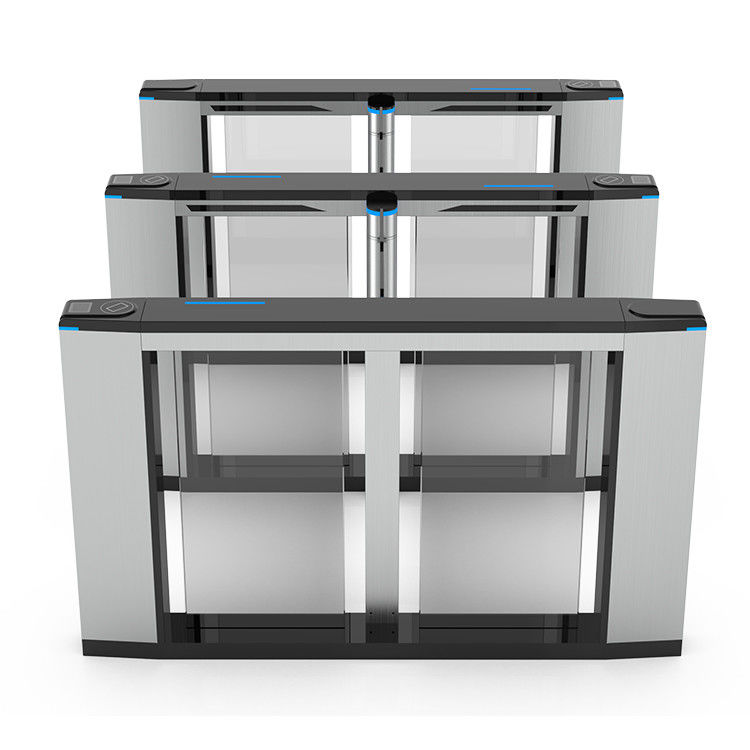

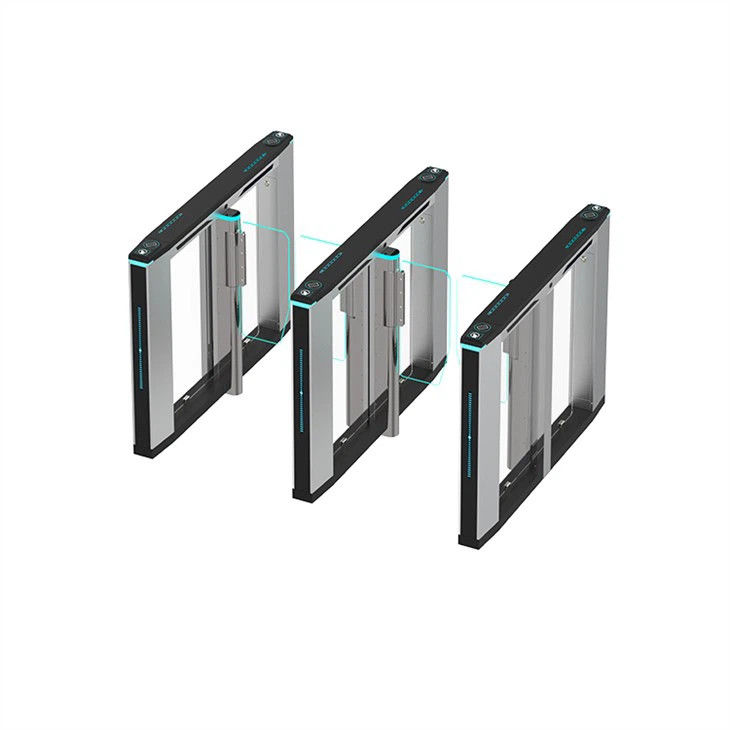

40P/M - 60P/M Speed Gate Systems  , High Security Turnstile Entrance Gates 240P/M - 60P/M Speed Gate Systems  , High Security Turnstile Entrance Gates 3
