Security Fast Speed Gate Turnstile Access Control System ISO Approved

Security Fast Speed Gate Turnstile Access Control System ISO Approved

Fast Speed Gate Turnstile

Security Fast Speed Gate Turnstile

ISO Turnstile Access Control System

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Fast Speed Lane Gate
Single Core:1600*231*980mm; Dual Core: 1600*312*980mm
1.2mm Thickess Stainless Steel
Driving Motor:
Brushless Servo Motor
Passage Width:
600 (standard) ~1200mm
5 Pairs Of IR Sensors
Dry Contact; RS485; RS232
Power Supply:
AC110~AC220 +/- 10%
Application Environment:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
film + EPE + Carton + Wooden Case
Supply Ability
1~10 units, 3~7 working days; 10~30 units, 10~15 working days; 30~50+ 15~20 working days.
Product Description

Fast Speed Gate Turnstile Access Control System


Please see product video in youtube link:


Product Description

The speed gate, also known as fast lane gate, is an innovative solution for high-traffic environments that require quick and efficient access control. HPT Sirius series turnstile gate is one of the latest appearance design from HPT Technology. AG-TX68162302 speed gate turnstile access control system is designed to provide fast and accurate authentication of individuals, ensuring secure and seamless passage through high-security zones.


The speed gate is manufactured with high-quality materials that guarantee strong durability, reliability and longevity. Its sleek and modern design is impressively compact, taking up minimal floor space while preventing unauthorized entry, tailgating or piggybacking. The gate also has multi-directional sensors that detect and prevent any attempts of forced entry or tailgating.


Like other security systems, the speed gate works with advanced technology such as biometric scanners, facial recognition, and RFID card and fingerprint scanners for quick and high-level identity authentication. It enables convenient and secure access control by integrating with other security systems such ticket system, acess management systems and fire alarm system.


The gate is specifically designed to provide ease of passage for pedestrians, wheelchair users, trolleys or luggage carts, and incorporates a variety of additional features to enhance the user experience. For example, it can be customized with LED indicators and acoustic alarms that help guide users through the gate and signal any unauthorized attempts to gain entry.


In conclusion, the unique-looking speed pass gate is an innovative solution designed to ensure quick, efficient, and reliable access control in high-traffic environments. With its advanced technology, high-level authentication, and user-friendly design, it is an ideal choice for airports, commercial and government buildings, transit stations, and other public places.

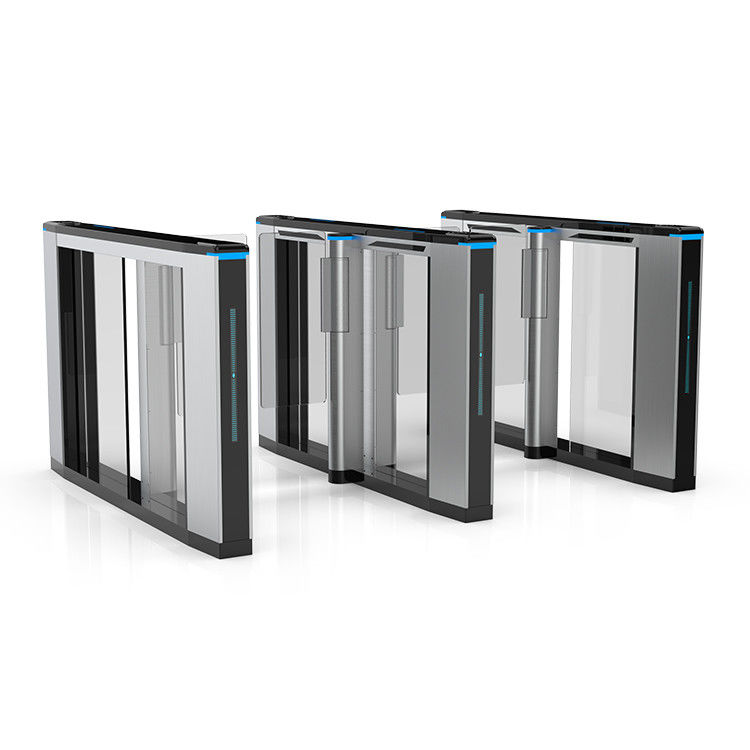

Security Fast Speed Gate Turnstile Access Control System ISO Approved 0

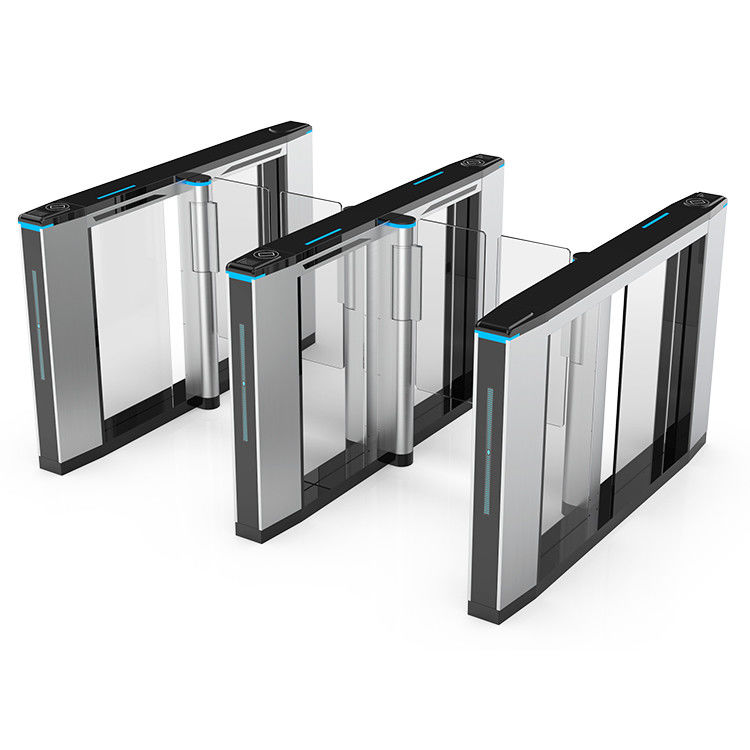

Security Fast Speed Gate Turnstile Access Control System ISO Approved 1

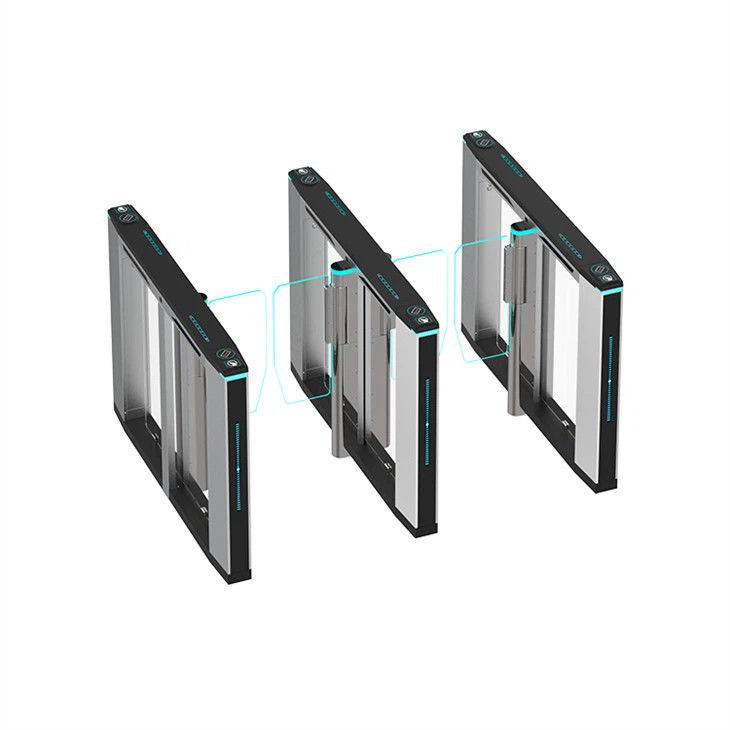

Security Fast Speed Gate Turnstile Access Control System ISO Approved 2



Product Size single wing:1600*231*980mm
dual wing: 1600*312*980mm
Material SUS 304 stainless steel + SPCC
Thinkness Top:1.2mm+body1.2mm
Passage Direction Single directional/Bi-directional
Standard Channel Width 600mm (≤900mm optional)
Sensor 5 pairs of active infrared intrusion detector
Throughput Rate 40~60 p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless Servo Motor
Acoustic Alarm Buzzer Alarm
LED Triple Color LED





1, The gate can be integrated with different access control devices including RFID reader, ID reader, face recognition device and fingerprinte recognition etc.

2, It is equipped with light and acoustic alarm when someone wants to break in without authorization .

3, The system will automatically cancel the passing rights if visitor did not pass within setting time.

3, If visitor was caught by the turnstile wings, the turnstile wings will open to avoid people get hurt.

4, The turnstile is equipped with protection mechanism to protect its driving motor and wings when someone bump into the turnstile arms.

5, The turnstile motherboard has fire protection port.



Customization Avaible

To do changes on gate appearance and settings or passage width to adapt to different projects, or if you are looking for a OEM factory to realize your speed gate design, you are always welcome.




This gate is specially designed for high end places like museum, exhibition hall, hotel,  campus, office building, residential community and parks etc.

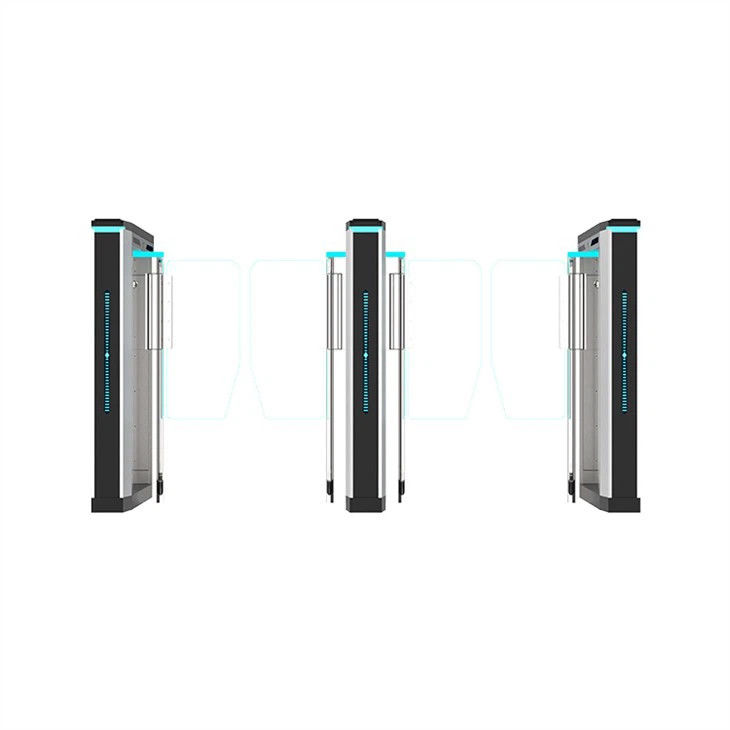

Security Fast Speed Gate Turnstile Access Control System ISO Approved 3Security Fast Speed Gate Turnstile Access Control System ISO Approved 4
