Place of Origin:
China
Brand Name:
HPT
Certification:
FCC; CE; ISO
Model Number:
AG-TX68162302
Contact Us
Please see product video in youtube link: https://youtu.be/Nl-ZSDA8pNg
Product Description

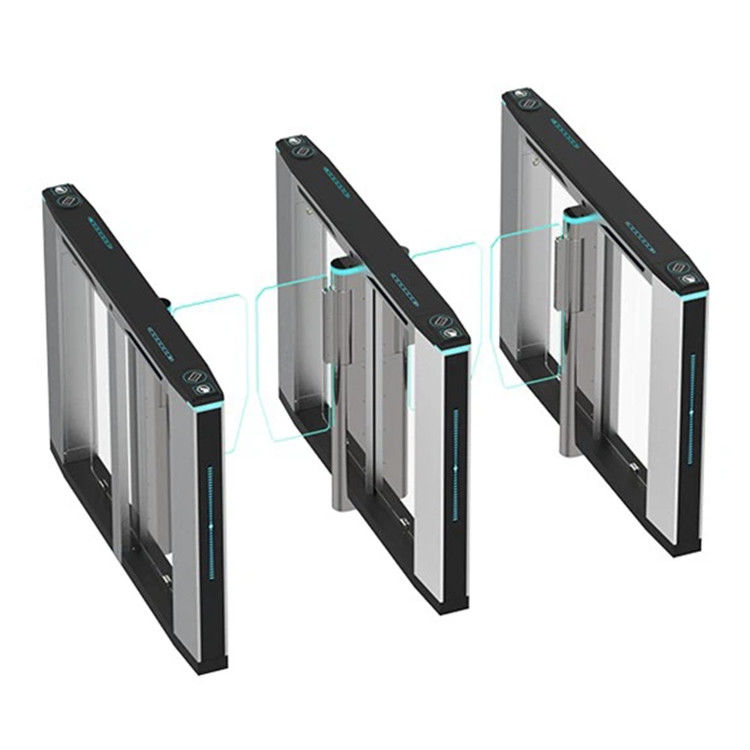

The HPT Sirius series turnstile gate is one of the company's newest outside designs. One of the models with the fastest operational speed and the longest useful life is the speed gate AG-TX68162302.
When employed in various projects, it has a sharp appearance and exceptional performance.
The gate uses a brushless servo motor that enables it to run with a passage width of up to 1200mm, an acrylic wing height of up to 1600mm, and an MCBF more than 100,000,000. The speed gate's body also uses various surface treatments to give it a more upscale appearance. Stoving and electroplating both play a part in the color treatment.
All of the private toolings HPT designed are the LEDs and the card reader lid. In accordance with various projects, we also provide our clients suggestions for customizing this gate.
Specification
| Product Size | single wing:1600*231*980mm dual wing: 1600*312*980mm |
| Material | SUS 304 stainless steel + SPCC |
| Thinkness | Top:1.2mm+body1.2mm |
| Passage Direction | Single directional/Bi-directional |
| Standard Channel Width | 600mm (≤900mm optional) |
| Sensor | 5 pairs of active infrared intrusion detector |
| Throughput Rate | 40~60 p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 6.25A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless Servo Motor |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
Functionality
1. Different access control devices, such as RFID readers, ID readers, facial recognition technology, and fingerprint readers, among others, can be combined with the gate.
2, It has a light and an audible warning for when someone tries to enter without permission.
3, If the visitor does not pass within the predetermined time, the system will automatically invalidate the passing rights.
3. To prevent injuries, the turnstile wings will open if a visitor is caught by them.
4. When someone bumps into the turnstile arms, a protection device is installed to safeguard the driving motor and wings of the turnstile.
5. The motherboard for the turnstile features a fire protection port.
Customization Avaible
To do changes on gate appearance and settings or passage width to adapt to different projects, or if you are looking for a OEM factory to realize your speed gate design, you are always welcome.
Projects
This gate is specially designed for high end places like museum, exhibition hall, hotel, campus, office building, residential community and parks etc.
