Place of Origin:
China
Brand Name:
HPT
Certification:
FCC; CE; ISO
Model Number:
AG-TX68162302
Contact Us

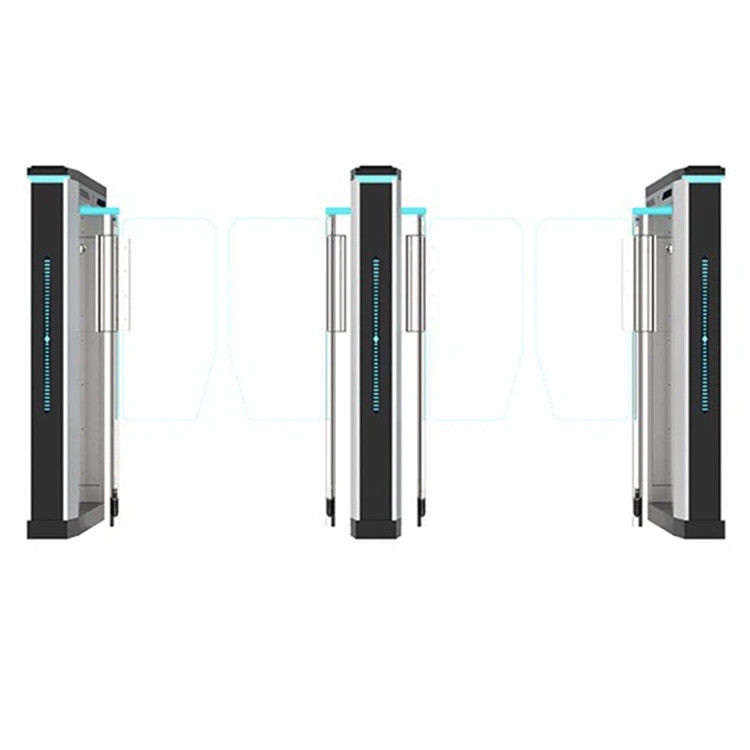

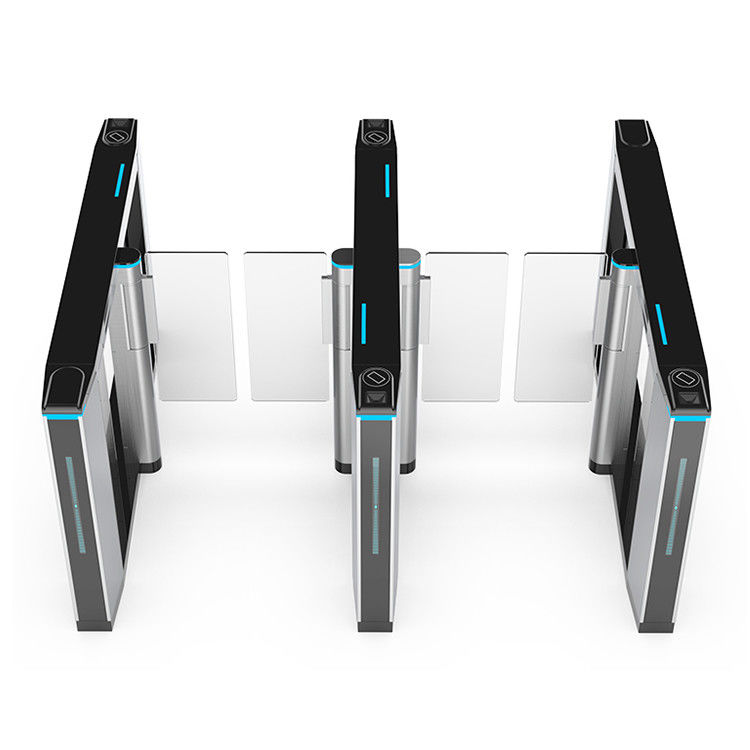

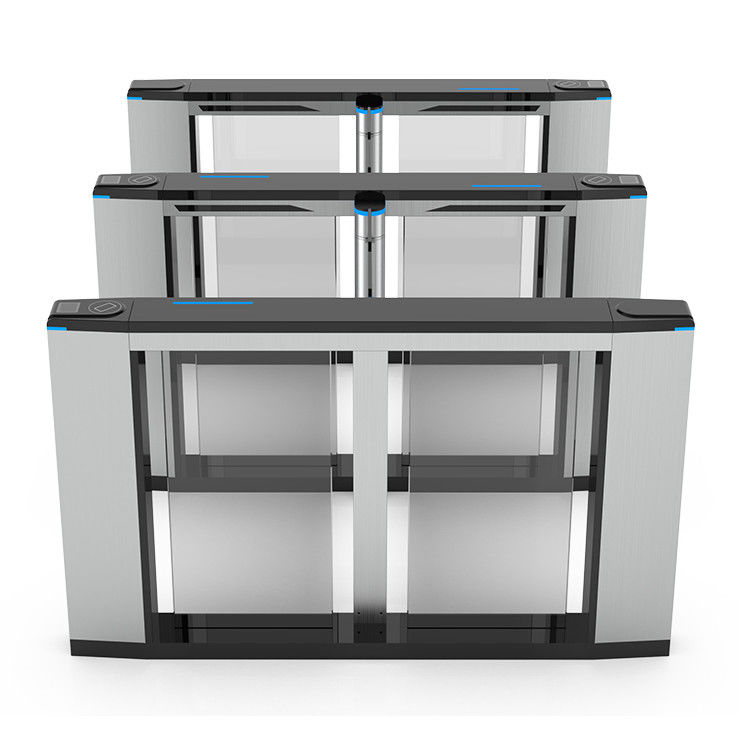

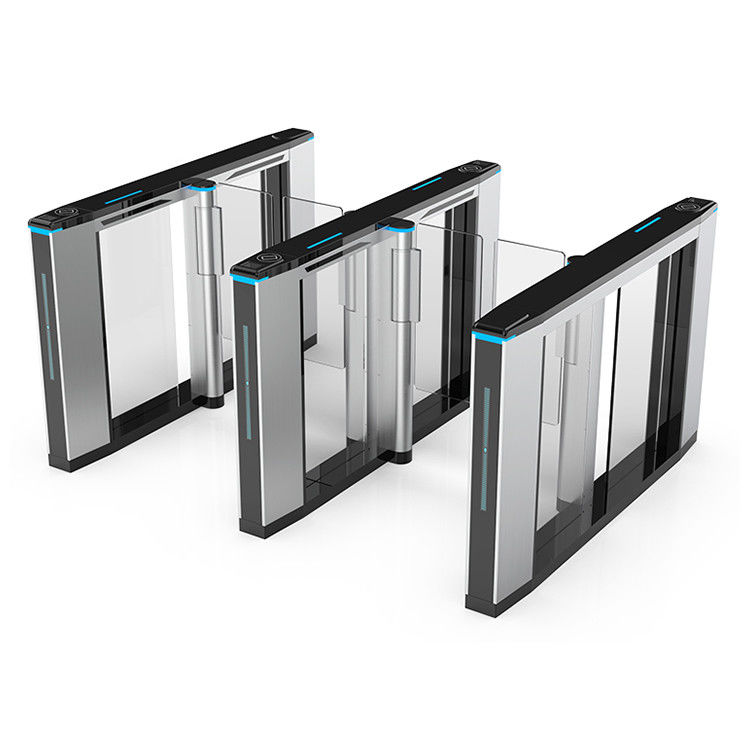

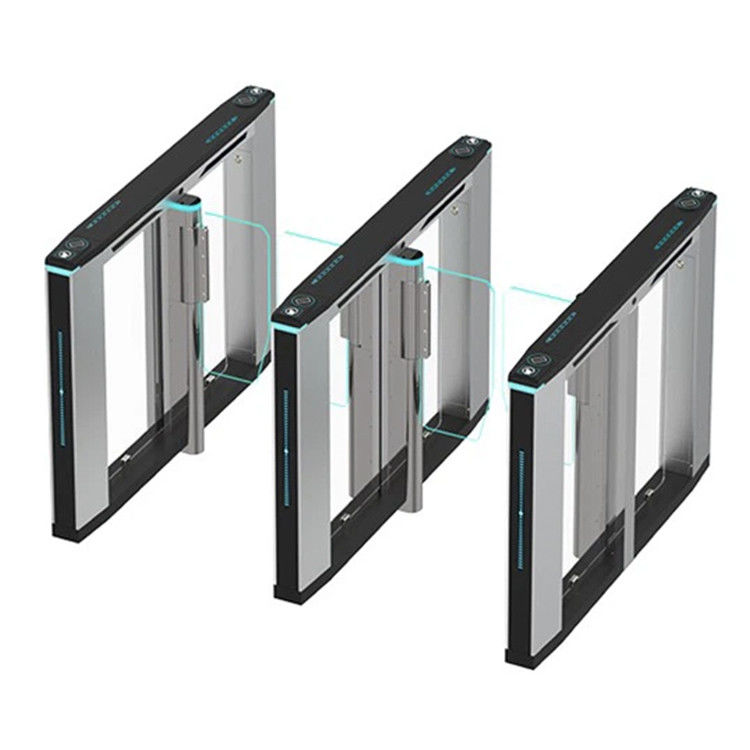

0.2S Open Speed High Speed Gate Turnstile Security Products For Business Buidlings
Please see product video in youtube link: https://youtu.be/Nl-ZSDA8pNg
Product Description
Introducing the latest addition to the HPT family - AG-TX68162302 speed gate!
The HPT Sirius series turnstile gate is one of the company's newest outside designs. One of the models with the fastest operational speed and the longest useful life is the speed gate AG-TX68162302.
Our brand new designs are sure to impress with their sleek and modern look. Whether you're looking for a gate for a residential community or a business building, HPT has got you covered. Our speed gate is made with the highest quality materials and feature cutting-edge designs. We understand that safety and security are top priorities, which is why our products are built to last and provide maximum protection.
Specification
| Product Size | single wing:1600*231*980mm dual wing: 1600*312*980mm |
| Material | SUS 304 stainless steel + SPCC |
| Thinkness | Top:1.2mm+body1.2mm |
| Passage Direction | Single directional/Bi-directional |
| Standard Channel Width | 600mm (≤900mm optional) |
| Sensor | 5 pairs of active infrared intrusion detector |
| Throughput Rate | 40~60 p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 6.25A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless Servo Motor |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
Functionality
1. The speed gate adopts a brushless servo motor, which runs smoothly and reliably;
3. It is equipped with infrared detection, It has a trailing detection, and the safety level is high;
5. With automatic passing permission cancellation function. The system will automatically cancel the user's permission to pass if the visitors did not passed within the specified time after the authorization validated and the door wing open;
6. Anti-trailing function. The passage logic can identify the passage status of unauthorized personnel’s following valid authorized personnel;
8. After the power is cut off, the door wings are open to form an evacuation channel to avoid panic;
9. The opening and closing time of the door wing is no more than 0.2s (excluding the access control response time);
10. Anti-collision function; The turnstile motor will stop work automatically within the rule time when the turstile swing arm seriously bumped.
12. Supporting various readers connection like face machines, IC/ID card readers, barcode readers, and built-in card recycling etc.
Customization Avaible
To do changes on gate appearance and settings or passage width to adapt to different projects, or if you are looking for a OEM factory to realize your speed gate design, you are always welcome.
Projects
This gate is specially designed for high end places like museum, exhibition hall, hotel, campus, office building, residential community and parks etc.
