Speedlane Swing Turnstile Gate , SUS Electronic Security Turnstiles

Speedlane Swing Turnstile Gate , SUS Electronic Security Turnstiles

Speedlane Swing Turnstile

Security Swing Turnstile Gate

Electronic Security Turnstiles

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Speedlane Swing Turnstile
Single Core:1600*231*980mm; Dual Core: 1600*312*980mm
Driving Motor:
Brushless Servo Motor
Passage Width:
600 (standard) ~1200mm
5 Pairs Of IR Sensors
Dry Contact; RS485; RS232
1.2mm Thickess Stainless Steel
Power Supply:
AC110~AC220 +/- 10%
Application Environment:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
film + EPE + Carton + Wooden Case
Supply Ability
1~10 units, 3~7 working days; 10~30 units, 10~15 working days; 30~50+ 15~20 working days.
Product Description

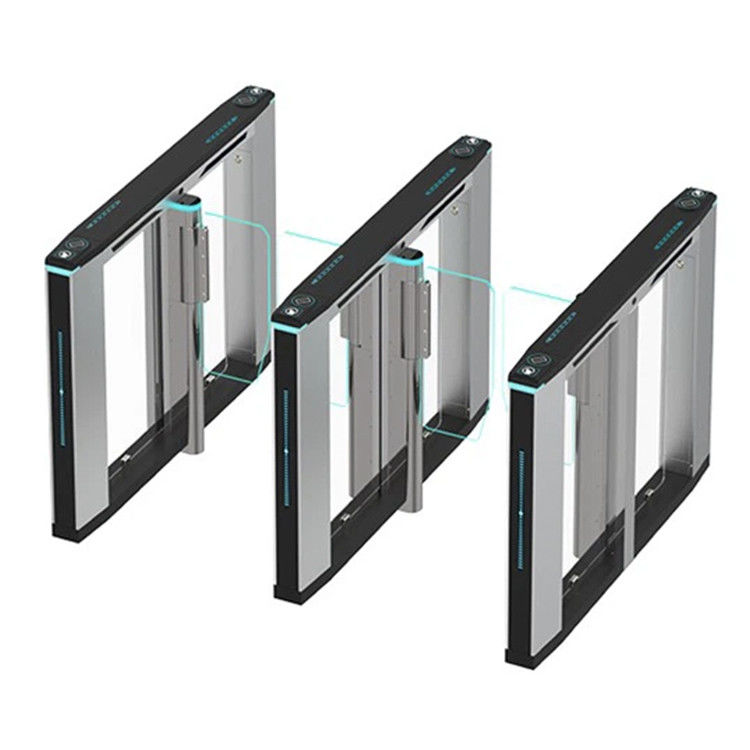

Speedlane Swing Turnstile Gate , SUS Electronic Security Turnstiles 0

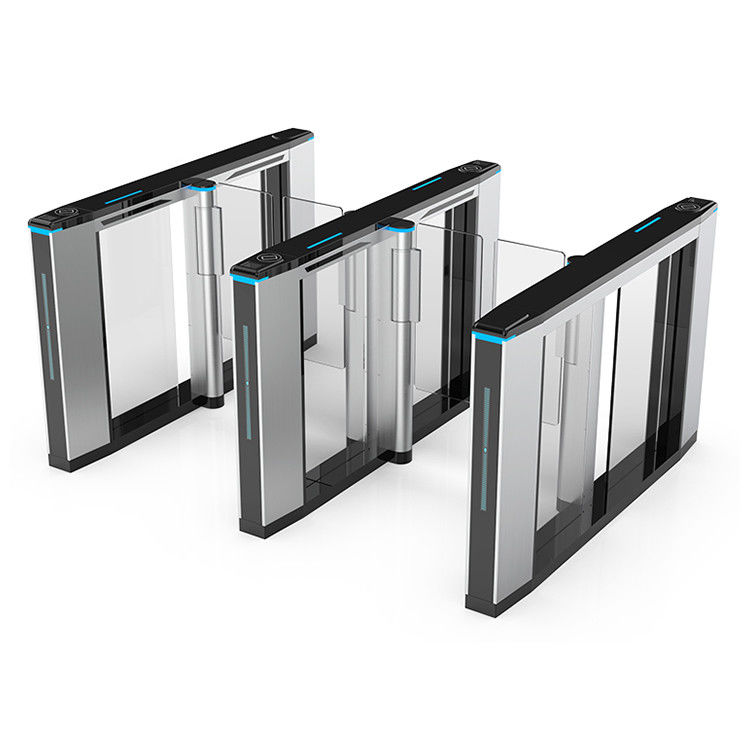

Speedlane Swing Turnstile Gate , SUS Electronic Security Turnstiles 1

Please see product video in youtube link:


Product Description

Presenting Gate and Speed, the newest members of the HPT family! Our newest designs, with their sleek and contemporary appearance, are sure to wow. HPT provides what you need, whether you need a gate for your house or a speed bump for your business. The materials we use to create our Gate and Speed goods are of the finest caliber, and they have cutting-edge designs. Because we are aware that security and safety are key objectives, our products are made to last and offer the highest level of protection.

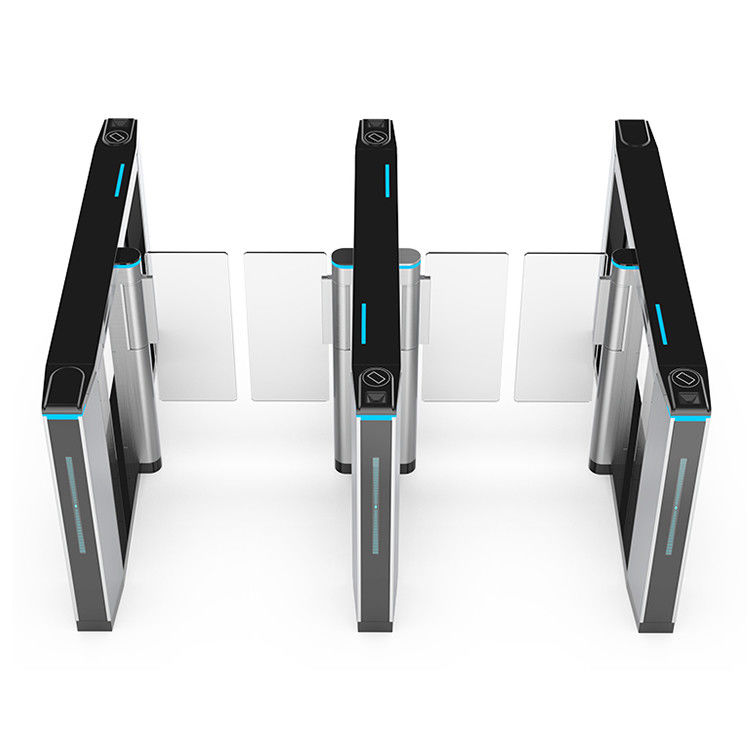

Speedlane Swing Turnstile Gate , SUS Electronic Security Turnstiles 2



Product Size single wing:1600*231*980mm
dual wing: 1600*312*980mm
Material SUS 304 stainless steel + SPCC
Thinkness Top:1.2mm+body1.2mm
Passage Direction Single directional/Bi-directional
Standard Channel Width 600mm (≤900mm optional)
Sensor 5 pairs of active infrared intrusion detector
Throughput Rate 40~60 p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless Servo Motor
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1. A brushless servo motor, which operates smoothly and dependably, is used in the speed gate;

3. It has an infrared detecting system, a trailing detection system, and a high level of safety;

5. With the ability to automatically cancel permission before passing. If guests don't leave within the allotted time after the authorization has been authenticated and the door wing has opened, the system will automatically revoke the user's right to pass;

6. An antitrailing feature. The passage logic can determine the status of an unauthorized individual who is being followed by a legitimate authorized person;

8. To prevent panic after the electricity is turned off, the door wings are opened to create an escape route;

9. The door wing opens and closes in less than 0.2 seconds (access control response time excluded);

10. Anti-collision function; When the turnstile swing arm is badly bumped, the turnstile motor will automatically cease working within the prescribed time.

12. Supports connections to a variety of readers, including built-in card recycling, IC/ID card readers, face machines, and barcode readers.


Customization Avaible

To do changes on gate appearance and settings or passage width to adapt to different projects, or if you are looking for a OEM factory to realize your speed gate design, you are always welcome.




This gate is specially designed for high end places like museum, exhibition hall, hotel,  campus, office building, residential community and parks etc.

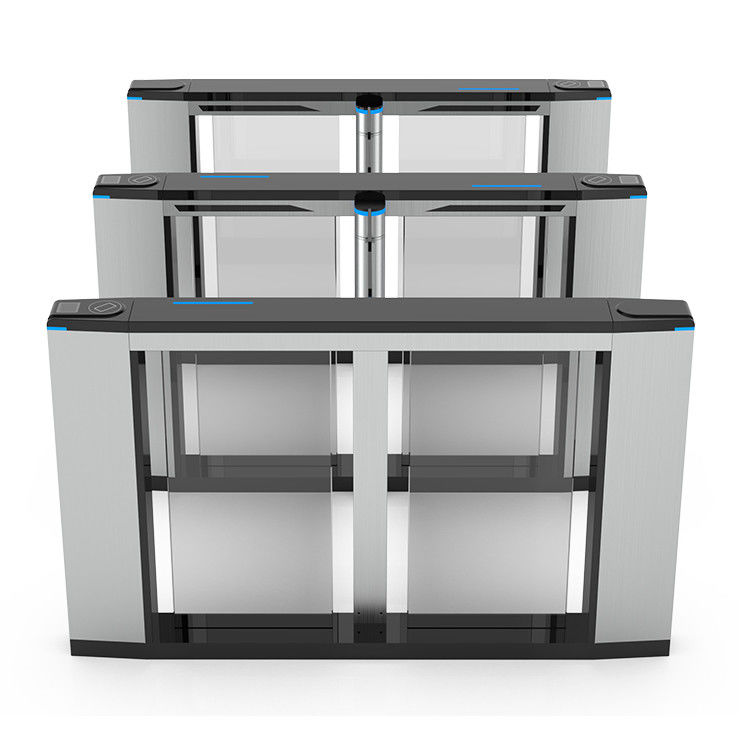

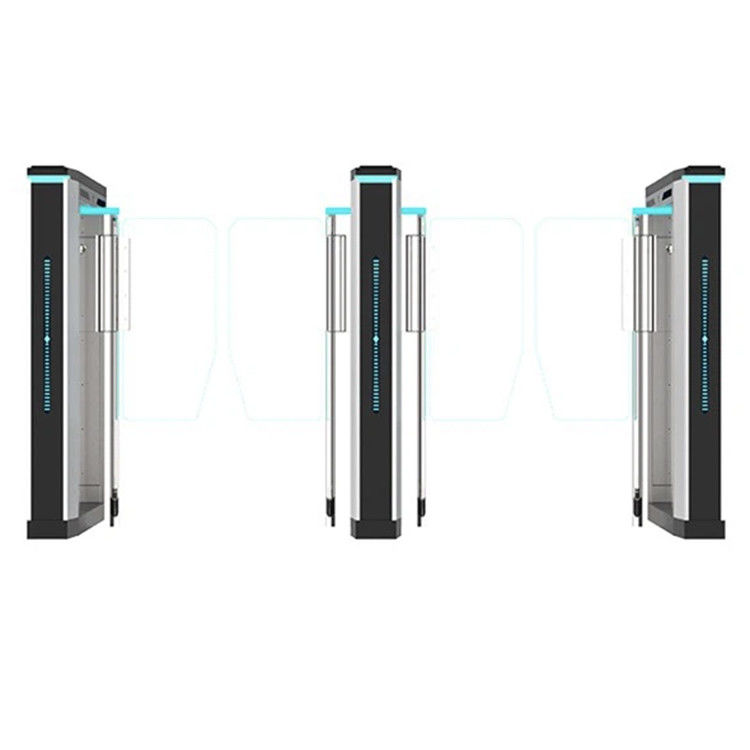

Speedlane Swing Turnstile Gate , SUS Electronic Security Turnstiles 3Speedlane Swing Turnstile Gate , SUS Electronic Security Turnstiles 4
