Construction Site Security Turnstiles , Custom Full Body Turnstile ISO Approved

Construction Site Security Turnstiles , Custom Full Body Turnstile ISO Approved

Construction Site Security Turnstiles

ISO Full Body Turnstile

Custom Full Body Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
SUS304 Stainless Steel
Product Name:
Full Hight Turnstile
Power Supply:
LED Direction Indication
Single Core & Double Core,Full Height Turnstile
Passage Width:
Communication Interface:
Payment & Shipping Terms
Product Description

Turnstile Access Control Security Systems Full Body Turnstile


AG-PX45141402 full-height turnstile is a physical barrier used to control pedestrian access to restricted areas. It is typically used in high-security environments such as airports, government buildings, and correctional facilities. The turnstile has a full-height rotating barrier that completely blocks the passage of an adult, forcing them to authorize or authenticate themselves to gain entry. It can integrate with access control systems, and can be operated using a keypad, card reader, biometric scanner, or mobile credential. They are commonly made of stainless steel, aluminum, or steel materials, and are designed to withstand harsh weather conditions and high traffic volumes. The turnstile's rotation mechanism is smooth and requires minimal effort to pass through, and it can be programmed to operate in various modes including free access, controlled access, and exit-only. Full-height turnstiles are an effective means of ensuring security and controlling foot traffic flow in high-risk areas.



                          Construction Site Security Turnstiles , Custom Full Body Turnstile ISO Approved 0


Model AG-PX45141402

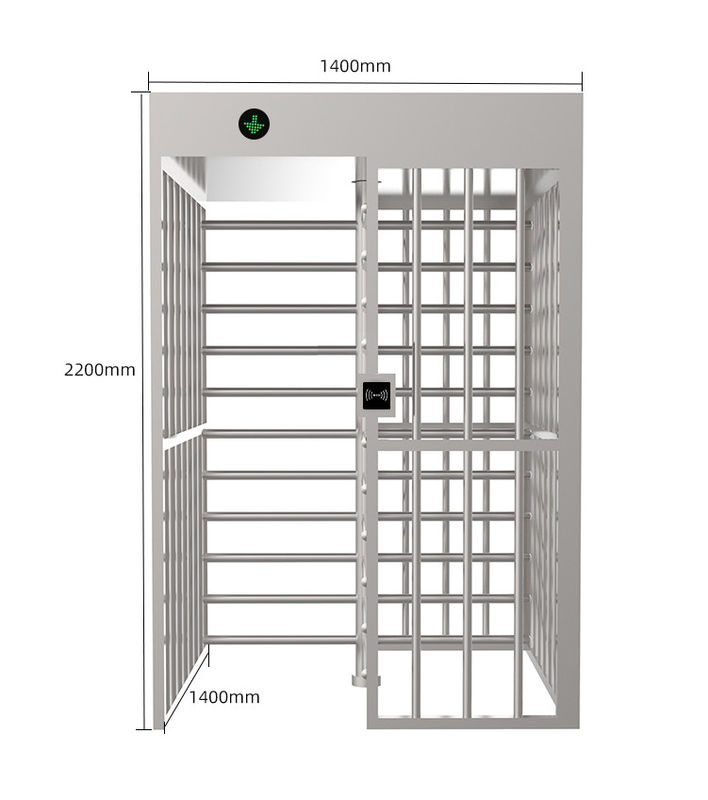

Demension 1400*1400*2200mm
Material 304 stainless steel
Passage Width 600mm
Driving Voltage 24V
Access Direction Single directional/Bi-directional
Turnbuckle Process Welding sealing
Access Type Single Access



1) Automatically low noise mechanism core equipped, highly cost-performance

2) Sense positioning, reducing mechanical impact make lifetime longer

3) Operating efficiency, 1~2 seconds open & close

4) Lowest Noise : No matter in operating or outside control, Noise control under 30db

5) Self-checking and Alarm warning for maintain

6) Resetting: System cancel authorized pass if passenger delayed pass

Anti-following : prevent illegal passing

Anti-clamp: The wings will stopped during in external block, the wings reset again after default delay

9) The rotary arms will be locked automatically if the system do not receive IR signal

10) Multi-passage for variety application demands , cover 99% needs on earth

11) Programmable signal separate control: pass time, pass speed etc. parameter

12) RS232/RS485 interface meet all kind of communications or wireless connection

Compatible IC/ID card, flexible couple

Long-distance management through COMPUTER

15) Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm


Construction Site Security Turnstiles , Custom Full Body Turnstile ISO Approved 1

Customization Available

In order to make the gate more appropriate for your projects, we may also change its settings or design to fit various circumstances for you. Our sales team is always available to you.
