Full Height Sliding Turnstile

Place of Origin China
Brand Name HPT
Certification CE; FCC; ISO
Model Number AG-PX45141402

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Access Control Turnstiles Power Supply AC100-240V
Passage Width 550mm Material SUS304 Stainless Steel
Indication LED Direction Indication Type Single Core & Double Core,Full Height Turnstile
Communication Interface Relay/RS485
High Light

Full Height Sliding Turnstile


FCC Safety Turnstile Gate


Prison Turnstiles

Leave a Message
Product Description

Full Height Turnstile Gates Pedestrian Barrier Gate Turn Style Gate Access Control Barrier


AG-PX45141402 full-height turnstile is one type of access control system that are commonly used in high-security applications, such as stadiums, prisons, and military bases. These turnstile provides a physical barrier that prevents unauthorized access to a particular area, and are designed to allow only one person through at a time.


Full height turnstiles have a taller, more robust design compared to waist-height turnstiles, and typically feature rotating arms that are around 7 feet in height. They are constructed from durable materials such as powder-coated steel, and can withstand harsh weather conditions and heavy foot traffic.


Our full height turnstiles can be configured in a variety of ways to suit your security needs. It can be combined with other access control technologies such as swipe card readers, biometric scanners, or facial recognition systems, to provide an added layer of security.


Overall, thr full height turnstiles is a reliable and effective solution for securing high-risk areas and ensuring that only authorized personnel gain access.





                          Full Height Sliding Turnstile 0


Model AG-PX45141402

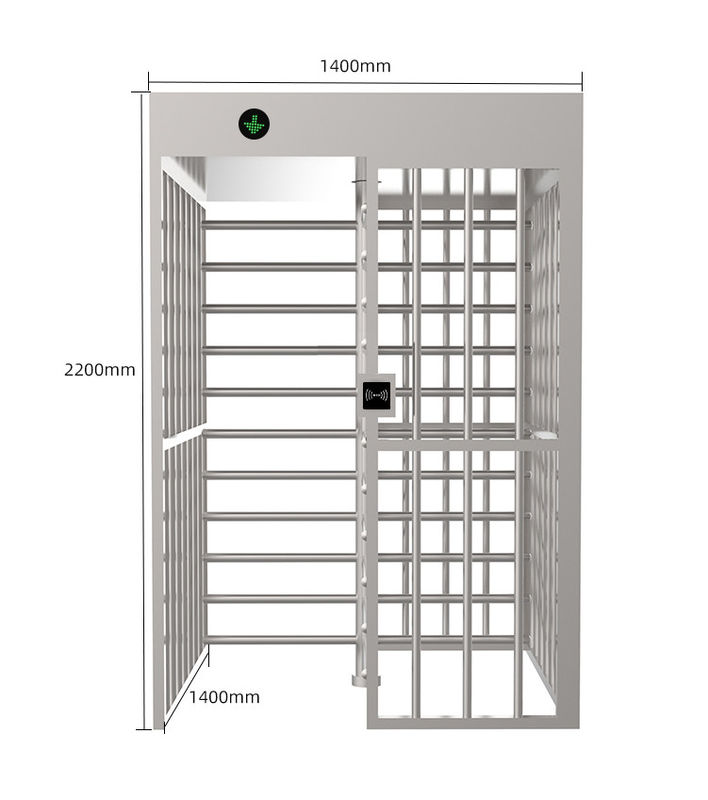

Demension 1400*1400*2200mm
Material 304 stainless steel
Passage Width 600mm
Driving Voltage 24V
Access Direction Single directional/Bi-directional
Turnbuckle Process Welding sealing
Access Type Single Access



1) Automatically low noise mechanism core equipped, highly cost-performance

2) Sense positioning, reducing mechanical impact make lifetime longer

3) Operating efficiency, 1~2 seconds open & close

4) Lowest Noise : No matter in operating or outside control, Noise control under 30db

5) Self-checking and Alarm warning for maintain

6) Resetting: System cancel authorized pass if passenger delayed pass

Anti-following : prevent illegal passing

Anti-clamp: The wings will stopped during in external block, the wings reset again after default delay

9) The rotary arms will be locked automatically if the system do not receive IR signal

10) Multi-passage for variety application demands , cover 99% needs on earth

11) Programmable signal separate control: pass time, pass speed etc. parameter

12) RS232/RS485 interface meet all kind of communications or wireless connection

Compatible IC/ID card, flexible couple

Long-distance management through COMPUTER

15) Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm


Full Height Sliding Turnstile 1

Customization Available

In order to make the gate more appropriate for your projects, we may also change its settings or design to fit various circumstances for you. Our sales team is always available to you.
