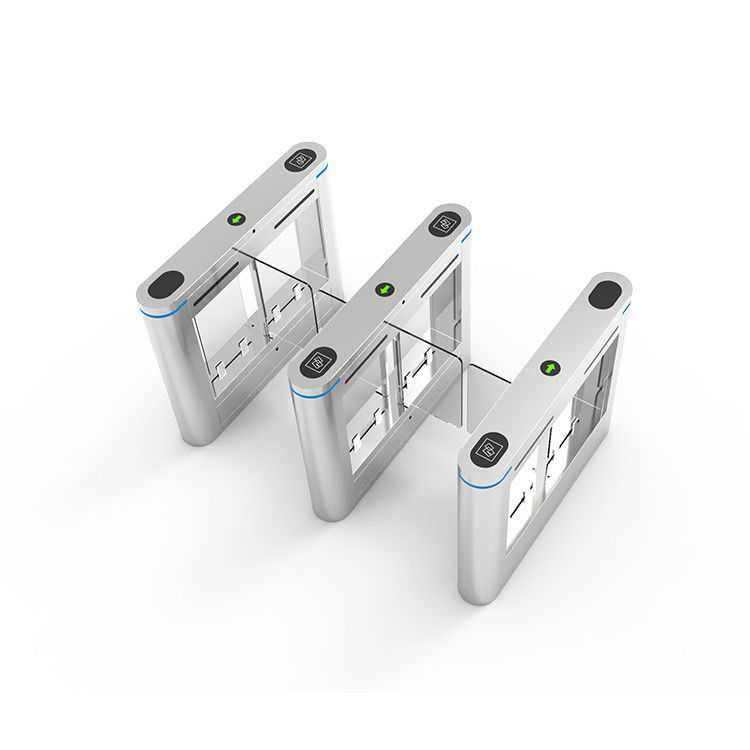

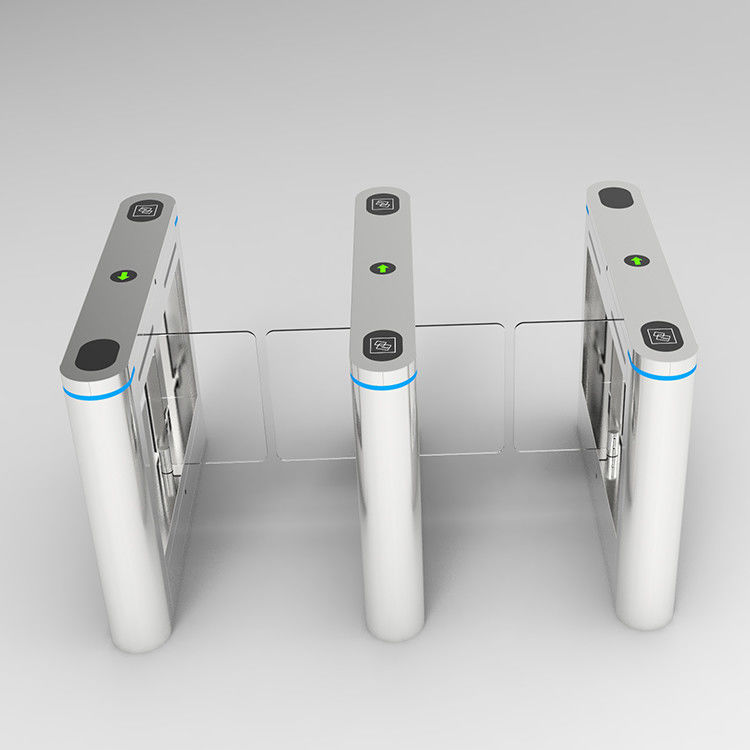

Oudoor High Speed Gate Turnstile Airport 1500*120*1000mm 40p/m

Oudoor High Speed Gate Turnstile Airport 1500*120*1000mm 40p/m

High Speed Gate Turnstile

Speed Gate Turnstile Airport

40p/m Outdoor Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Fastlane Turnstile
1.5mm Thickess Stainless Steel
Passage Width:
600 (standard) ~1200mm
4 Pairs Of IR Sensors
Dry Contact; RS485; RS232
Power Supply:
AC110~AC220 +/- 10%
Application Environment:
Driving Motor:
Brushless Servo Motor
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
film + EPE + Carton + Wooden Case
Supply Ability
1~10 units, 3~7 working days; 10~30 units, 10~15 working days; 30~50+ 15~20 working days.
Product Description

SUS 304 Stainless Steel Automated Gate Systems Fastlane Turnstile Oudoor Indoor


Product Description


HPT AG-TX65151202 speed gate, the ultimate solution for secure access control. This advanced security system provides a high-speed and reliable method for controlling the flow of people in and out of your premises. Designed with state-of-the-art technology, our sleek and stylish speed gates provide maximum security while maintaining an aesthetically pleasing appearance.

Featuring a variety of advanced features, the speed gate is perfect for high-traffic areas such as airports, corporate offices, and government buildings. The bi-directional, high-speed operation ensures efficient throughput, minimizing waiting times for users while maximizing your security posture. The gate's intuitive control system and programmable software provide complete control and flexibility, allowing you to customize it to meet your exact needs.

Our speed gate products come with a range of customizable options, including different finishes, materials, and sizes to suit your specific requirements. Whether you need to secure a small entryway or control the access to a large facility, our range of products will provide the perfect solution.

We take pride in the high-quality craftsmanship of our products and offer a comprehensive warranty and support package, ensuring our customers' peace of mind. With the speed gate, you can rest assured that your premises are adequately secured while maintaining an elegant and streamlined appearance. Choose the SpeedGate to stay ahead of the curve in access control and security!


Oudoor High Speed Gate Turnstile Airport 1500*120*1000mm 40p/m 0


Product Size 1500*120*1000mm
Material SUS 304 stainless steel; vacuum plating
Thickenss 1.5mm (≤900mm optional)
Passage Direction Single directional/Bi-directional
Passage Width 600mm
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 40p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC220V,50Hz
Power Input AC110~220V±10%
Motor Brushless Servo Motor
Mechanism Brushless Speed Gate Mechanism
Back up power Supercapacitor(12V/3A)
Acoustic Alarm Buzzer Alarm
LED Triple Color LED

Oudoor High Speed Gate Turnstile Airport 1500*120*1000mm 40p/m 1

Oudoor High Speed Gate Turnstile Airport 1500*120*1000mm 40p/m 2


◊ Smart card reader compatible with a variety of card readers such as IC and ID card.

◊ Can be compatible with automatic identification system and realize function of access control, pedestrian flow control, attendance check or fare collection etc.

◊ Equipped with international standard electrical interface, can be easily integrated with differen readers, also can be controlled and managed through remote supervision computer.

◊ Equipped with a couple of infrared photocell, alarm at unauthorized entry or tailgating attempts and anti-strike function to protect pedestrian.

◊ LED gate direction indicator that displays the current operational state to pedestrian. Green means passing, red means no pass, blue means standby.

◊ Can open the turnstile by input signals (signal can be input by access controller, button or other equipment).

◊ Provide audible sound prompt and information display function.

◊ The arms will open automatically during power interruption, and recover N/C mode after power on(optional).


Customization Avaible

To do changes on gate appearance and settings or passage width to adapt to different projects, or if you are looking for a OEM factory to realize your speed gate design, you are always welcome.



This gate is specially designed for high end places like museum, exhibition hall, hotel,  campus, office building, residential community and parks etc.

Oudoor High Speed Gate Turnstile Airport 1500*120*1000mm 40p/m 3
