ESD Slim Speedlane Turnstile , 1.5mm Thickess Stainless Steel Speed Turnstile

ESD Slim Speedlane Turnstile , 1.5mm Thickess Stainless Steel Speed Turnstile

Brushless DC Motor Speedlane Turnstile

1.5mm Thickness Speed Turnstile

Speedlane Esd Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Slim Speedlane Turnstile
Driving Motor:
Brushless DC Motor
Passage Width:
600 (standard) ~1200mm
5 Pairs Of IR Sensors
Dry Contact; RS485; RS232
1.5mm Thickess Stainless Steel
Power Supply:
AC110~AC220 +/- 10%
Application Environment:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
film + EPE + Carton + Wooden Case
Supply Ability
1~10 units, 3~7 working days; 10~30 units, 10~15 working days; 30~50+ 15~20 working days.
Product Description

Slim Speedlane Turnstile Speed Turnstile Esd Turnstile



Product Description


Our highly advanced and secure Speed Lane Access Control Gate, designed to efficiently manage pedestrian traffic flow in commercial buildings, airports, stadiums, and other high-footfall areas. Equipped with state-of-the-art sensors and high-speed motors, our Speed Lane Access Control Gate allows for swift and hassle-free entry and exit, minimizing wait times and improving convenience for users.

Our Speed Lane Access Control Gate offers a range of advanced features, including secure biometric identification and access card scanning for stringent security and access control. It also comes with a range of customizable settings to suit your specific traffic flow requirements, including adjustable opening and closing speeds, direction control, and more.

With a sleek and modern design, our Speed Lane Access Control Gate offers a professional and highly efficient solution for managing pedestrian traffic in busy areas. So why wait? Upgrade your facility with our Speed Lane Access Control Gate today and experience the ultimate in secure and convenient pedestrian management.


ESD Slim Speedlane Turnstile , 1.5mm Thickess Stainless Steel Speed Turnstile 0

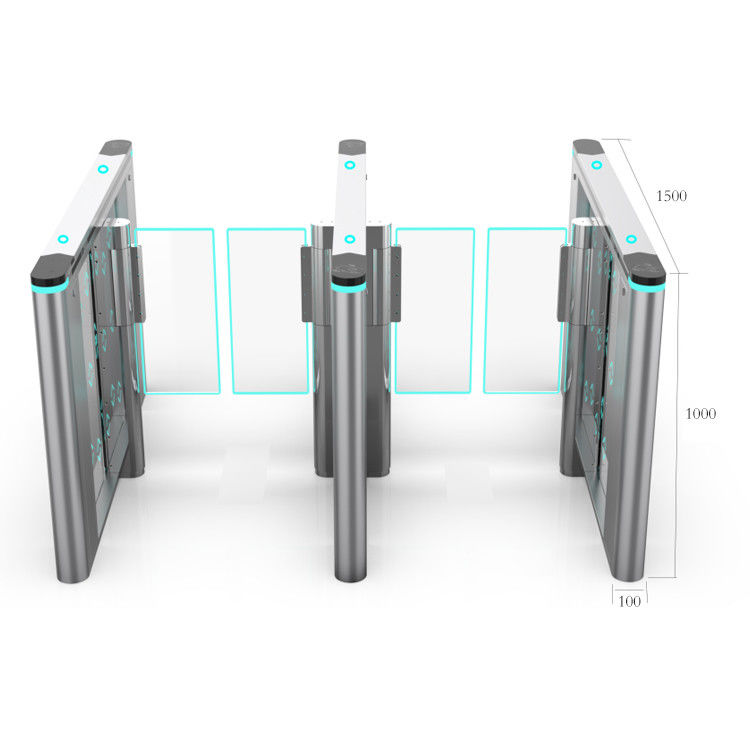

Product Size 1500*1000*100
Material SUS 304 stainless steel
Lane Width 600-1150mm
Passage Direction Single directional/Bi-directional
Motor Brushless DC Motor
Sensor 6 pairs of active infrared intrusion detector
Throughput Rate 25~40 p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70℃
Power Input AC110~220V±10%
Communication Interface Serial port and multi-channel I/O interface
Communication RS232 and TCP/IP
Humidity ≤90%, no condensation
Protection Class IP 54
Working Environment Indoor and outdoor




1. A brushless DC motor, which operates smoothly and dependably, is used in the speed gate;

3. It has an infrared detecting system, a trailing detection system, and a high level of safety;

5. With the ability to automatically cancel permission before passing. If visitors don't leave within the allotted time after the authorization has been authenticated and the door wing has opened, the system will automatically revoke the visitor's right to pass;

6. An antitrailing feature. The passage logic can determine the status of an unauthorized individual who is being followed by a legitimate authorized person;

8. To prevent panic after the electricity is turned off, the door wings are opened to create an escape route;

9. The door wing opens and closes in less than 0.2 seconds (access control response time excluded);

10. Anti-collision function; When the turnstile swing arm is badly bumped, the turnstile motor will automatically cease working within the prescribed time.

12. Supports connections to a variety of readers, including built-in card recycling, IC/ID card readers, face machines, and barcode readers.


Customization Avaible

To do changes on gate appearance and settings or passage width to adapt to different projects, or if you are looking for a OEM factory to realize your speed gate design, you are always welcome.



This gate is specially designed for high end places like museum, exhibition hall, hotel,  campus, office building, residential community and parks etc.

ESD Slim Speedlane Turnstile , 1.5mm Thickess Stainless Steel Speed Turnstile 1
