Brushless Servo Motor Slim Speedlane Turnstile , Security Gate ESD Turnstile

Brushless Servo Motor Slim Speedlane Turnstile , Security Gate ESD Turnstile

ESD Speedlane Turnstile

RS485 Speedlane Turnstile

Brushless Servo Motor ESD Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Speedlane Turnstile
Driving Motor:
Brushless Servo Motor
Passage Width:
600 (standard) ~1200mm
4 Pairs Of IR Sensors
Dry Contact; RS485; RS232
1.2mm Thickess Stainless Steel
Power Supply:
AC110~AC220 +/- 10%
Application Environment:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
film + EPE + Carton + Wooden Case
Supply Ability
1~10 units, 3~7 working days; 10~30 units, 10~15 working days; 30~50+ 15~20 working days.
Product Description

AG-TX65151002 Slim Turnstile Speedlane Turnstile Security Gate Esd Turnstile


Product Description

The AG-TX65151002 Speed Lane Turnstile is a high-quality entry control system designed to enhance security and crowd control. This turnstile offers a fast and reliable access solution for high-traffic areas such as office buildings, shopping malls, stadiums, airports, and public transport stations.

The SpeedTurnstile features a durable stainless-steel construction that ensures long-lasting performance in harsh environments. It features an advanced motor mechanism that provides quick and smooth gate operation, allowing for a rapid flow of people without causing any bottlenecks.

The turnstile is equipped with advanced technology for comprehensive access control and intelligent management of the entry process. It supports various identification methods, including fingerprint, RFID, and facial recognition systems, enabling you to choose the solution that best fits your needs.

Additionally, the AG-TX65151002 Speed Lane Gate has a user-friendly interface that offers easy setup and customization of features, as well as real-time operational and statistical reporting. It can be integrated with other security systems such as face recognition cameras and alarm systems, providing a holistic security solution for your premises.

In summary, the AG-TX65151002 Speed Lane Turnstile is a reliable and effective access control solution that provides enhanced security, efficient crowd control, and a seamless user experience. Invest in this product today to secure your premises and streamline the flow of people.

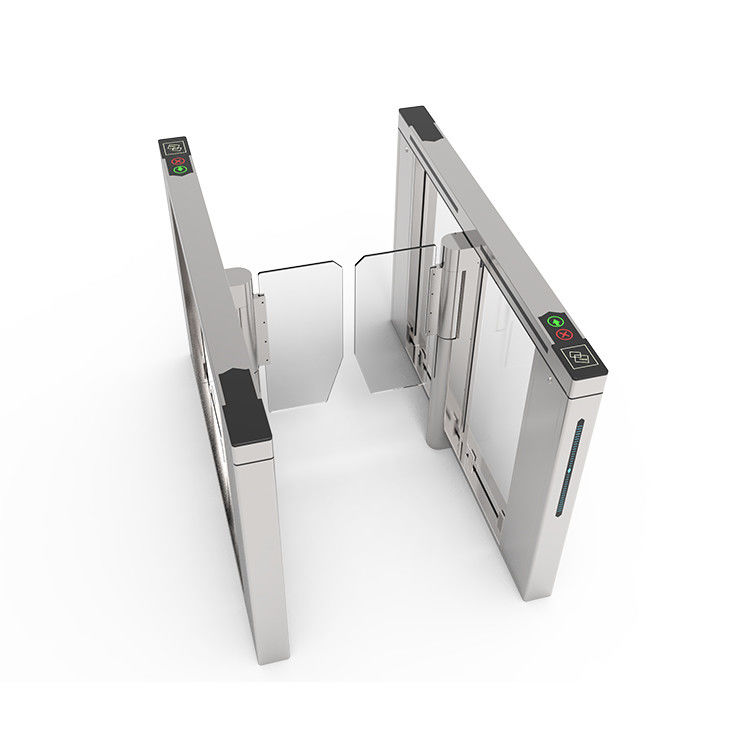

Brushless Servo Motor Slim Speedlane Turnstile , Security Gate ESD Turnstile 0

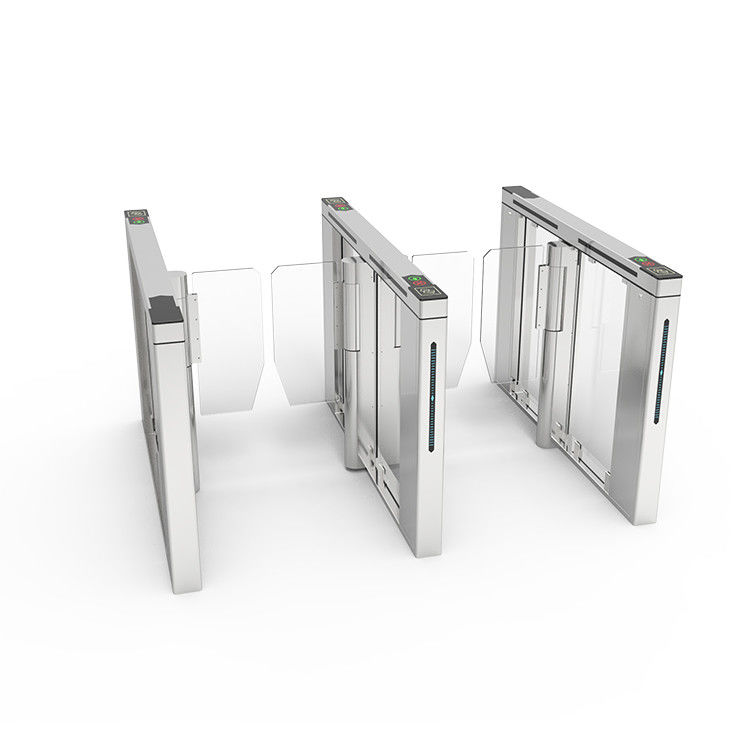

Brushless Servo Motor Slim Speedlane Turnstile , Security Gate ESD Turnstile 1




Product Size 1500*100*1000mm
Material SUS 304 stainless steel
Thickenss Top:1.5mm+body1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm (≤900mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 40p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70℃
Power Input AC110~220V±10%
Motor Brushless Servo Motor
Mechanism Brushless Speed Gate Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED



1. A brushless servo motor, which operates smoothly and dependably, is used in the speed gate;

3. It has an infrared detecting system, a trailing detection system, and a high level of safety;

5. With the ability to automatically cancel permission before passing. If guests don't leave within the allotted time after the authorization has been authenticated and the door wing has opened, the system will automatically revoke the user's right to pass;

6. An antitrailing feature. The passage logic can determine the status of an unauthorized individual who is being followed by a legitimate authorized person;

8. To prevent panic after the electricity is turned off, the door wings are opened to create an escape route;

9. The door wing opens and closes in less than 0.2 seconds (access control response time excluded);

10. Anti-collision function; When the turnstile swing arm is badly bumped, the turnstile motor will automatically cease working within the prescribed time.

12. Supports connections to a variety of readers, including built-in card recycling, IC/ID card readers, face machines, and barcode readers.


Customization Avaible

To do changes on gate appearance and settings or passage width to adapt to different projects, or if you are looking for a OEM factory to realize your speed gate design, you are always welcome.



This gate is specially designed for high end places like museum, exhibition hall, hotel,  campus, office building, residential community and parks etc.

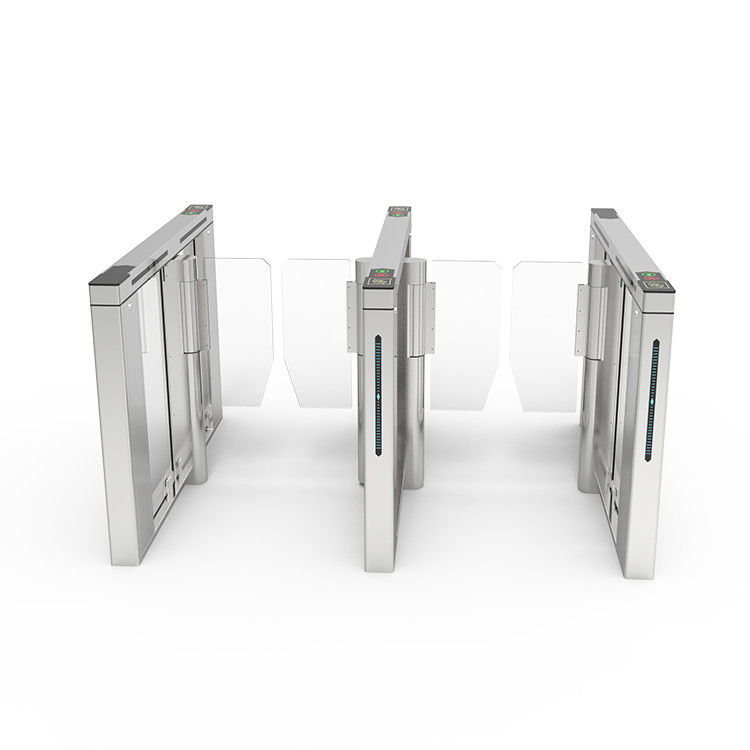

Brushless Servo Motor Slim Speedlane Turnstile , Security Gate ESD Turnstile 2
