Compact Speed Gate Turnstile Secure And Reliable Entrance Control

Compact Speed Gate Turnstile Secure And Reliable Entrance Control

Compact Speed Gate Turnstile

Entrance Control Speed Gate Turnstile

Slim Speedlane Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Slim Speedlane Turnstile
Driving Motor:
Brushless Servo Motor
Passage Width:
600mm (≤900mm Optional)
4 Pairs Of IR Sensors
Dry Contact; RS485; RS232
1.5mm Thickess Stainless Steel
Power Supply:
AC110~AC220 +/- 10%
Application Environment:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
film + EPE + Carton + Wooden Case
Supply Ability
1~10 units, 3~7 working days; 10~30 units, 10~15 working days; 30~50+ 15~20 working days.
Product Description

Compact Size Speed Gate Turnstile Entrance Barrier Gate



Product Description

AG-TX65151202 speed gates are innovative security solutions used in modern buildings and facilities to manage pedestrian traffic flow. These gates are designed to control the entry and exit of people, ensuring only authorized persons are allowed into the building or restricted areas. They are often used in airports, metro stations, office buildings, and other areas where high-security measures are necessary.

One of the main benefits of speed gates is that they offer a high level of security. They provide a physical barrier that prevents unauthorized access to restricted areas, reducing the risk of theft, vandalism, or other illegal activities. The gates can also detect when an unauthorized person tries to enter, setting off an alarm to alert security personnel.

Speed gates are also efficient and convenient. They use advanced technology such as sensors and biometric readers to allow for fast and seamless access. This means that authorized individuals can enter and exit the restricted area quickly and easily, without unnecessary delays or interruptions.

Another advantage of speed gates is that they offer a modern and sleek look. They come in various designs, sizes, and materials that can complement the aesthetic of the building or facility where they are installed. This can enhance the overall ambiance of the space and create a positive first impression for visitors.

In conclusion, speed gates are a vital element in modern security systems. They provide a high level of security, convenience, and aesthetic appeal, making them a popular choice for many buildings and facilities. Installing speed gates is an investment in safety and productivity, and it's a decision that can benefit your business for years to come.

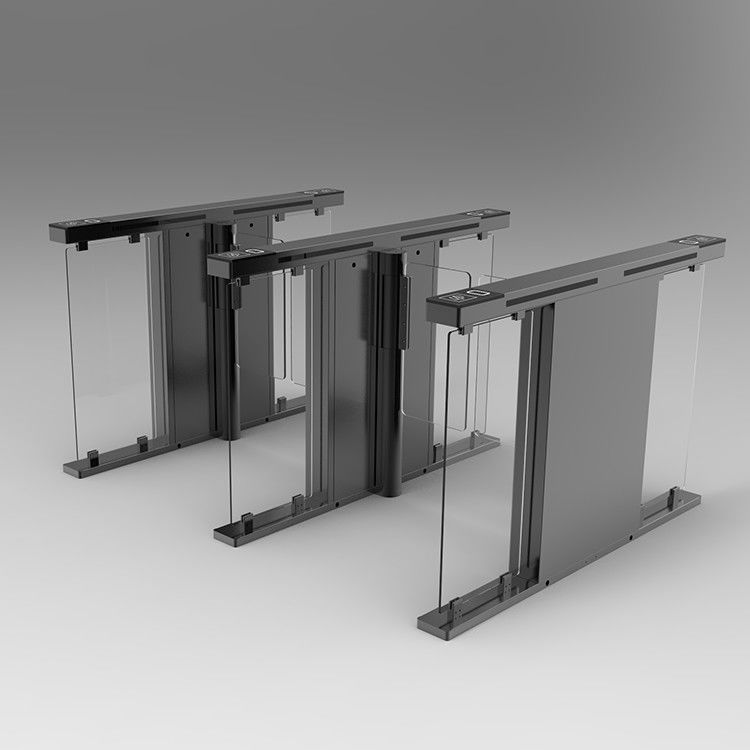

Compact Speed Gate Turnstile Secure And Reliable Entrance Control 0




Product Size
Material SUS 304 stainless steel
Lane Width
600mm (≤900mm optional)
Passage Direction Single directional/Bi-directional
Motor Brushless Servo Motor
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~40 p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70℃
Power Input AC110~220V±10%
Communication RS232 and TCP/IP
Humidity ≤90%, no condensation
Protection Class IP 54
Working Environment Indoor and outdoor




1. A brushless servo motor, which operates smoothly and dependably, is used in the speed gate;

3. It has an infrared detecting system, a trailing detection system, and a high level of safety;

5. With the ability to automatically cancel permission before passing. If visitors don't leave within the allotted time after the authorization has been authenticated and the door wing has opened, the system will automatically revoke the visitor's right to pass;

6. An antitrailing feature. The passage logic can determine the status of an unauthorized individual who is being followed by a legitimate authorized person;

8. To prevent panic after the electricity is turned off, the door wings are opened to create an escape route;

9. The door wing opens and closes in less than 0.2 seconds (access control response time excluded);

10. Anti-collision function; When the turnstile swing arm is badly bumped, the turnstile motor will automatically cease working within the prescribed time.

12. Supports connections to a variety of readers, including built-in card recycling, IC/ID card readers, face machines, and barcode readers.


Customization Avaible

To do changes on gate appearance and settings or passage width to adapt to different projects, or if you are looking for a OEM factory to realize your speed gate design, you are always welcome.



This gate is specially designed for high end places like museum, exhibition hall, hotel,  campus, office building, residential community and parks etc.

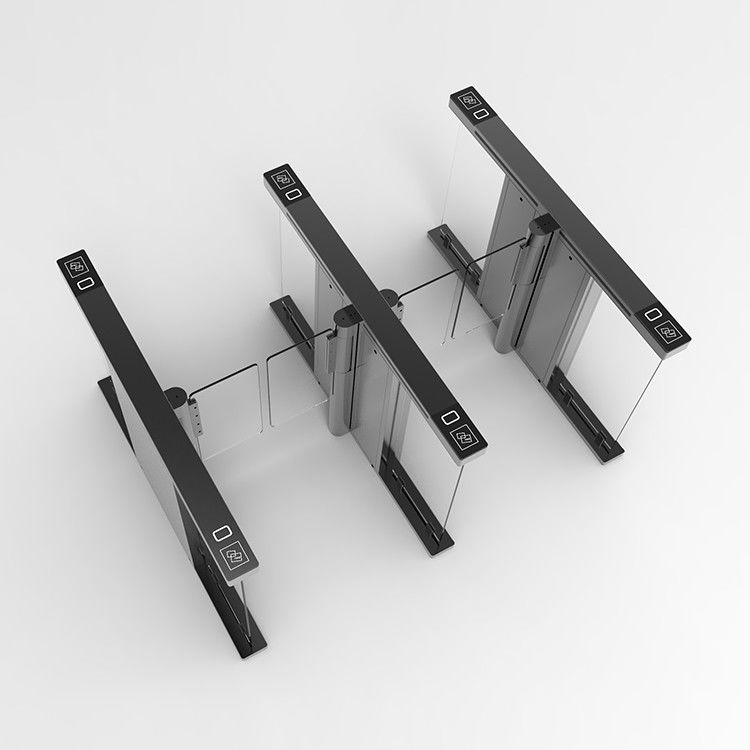

Compact Speed Gate Turnstile Secure And Reliable Entrance Control 1
