High Speed Reception Turnstiles

Place of Origin China
Brand Name HPT
Certification CE; FCC; ISO
Model Number AG-TX28161502
Minimum Order Quantity 1

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Flap Barrier Gate Turnstile Material SUS304 Stainless Steel
Package Size 1635x280x1005mm Weight Single Core: 72kg/Dual Core: 87kg
Usage Office, Hotel, Library, Metro Station, Ect.
High Light

High Speed Reception Turnstiles


Stainless Steel Reception Turnstiles

Leave a Message
Product Description

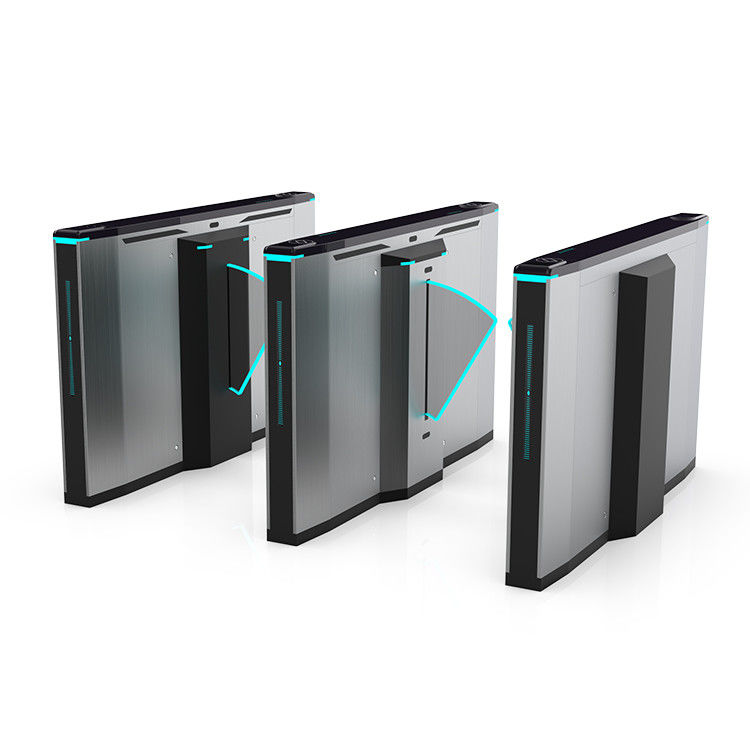

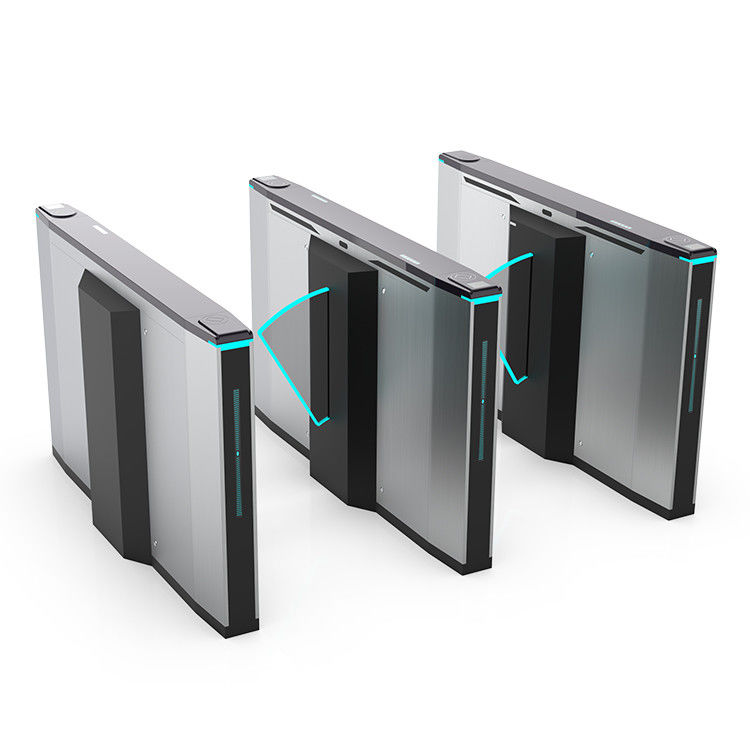

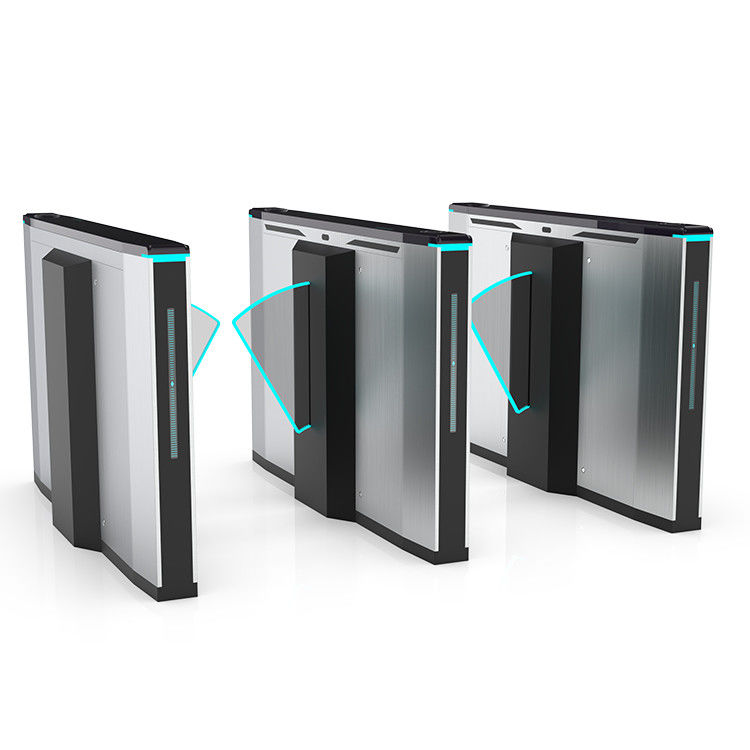

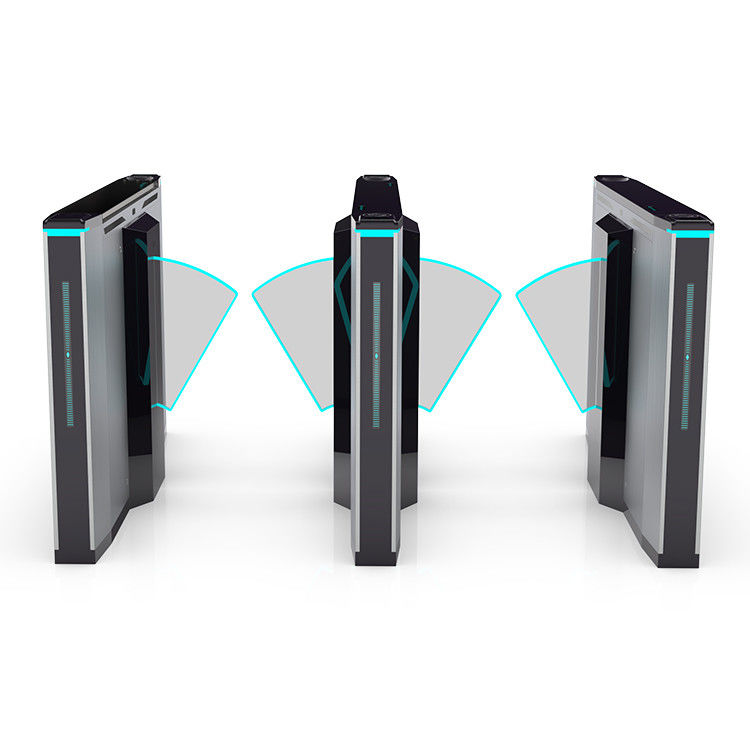

AG-TX28161502 High Speed Flap Barrier Gate Turnstile System


Product Video, please find in this youtube link: https://youtu.be/j_j--7dJ3fE


Product Description

HPT Sirius series turnstile gate is one of the latest appearance design from HPT Technology. Model AG-TX28161502 is a high end flap barrier gate of this series. Compare to traditional flap barrier turnstile, HPT sirius flap barrier gate has a long and slim body which makes it a more delicate and modern appearance. Colored LEDs decorated on the flap barrier gate turnstile not only makes the turnstile gate looking more eye catching at daytime as well as night, but also give an instinct status instruction of the gate. Different color techniques on the turnstile gate surface make this design a sophisticated design. It is unique, high-tech, and beautiful.

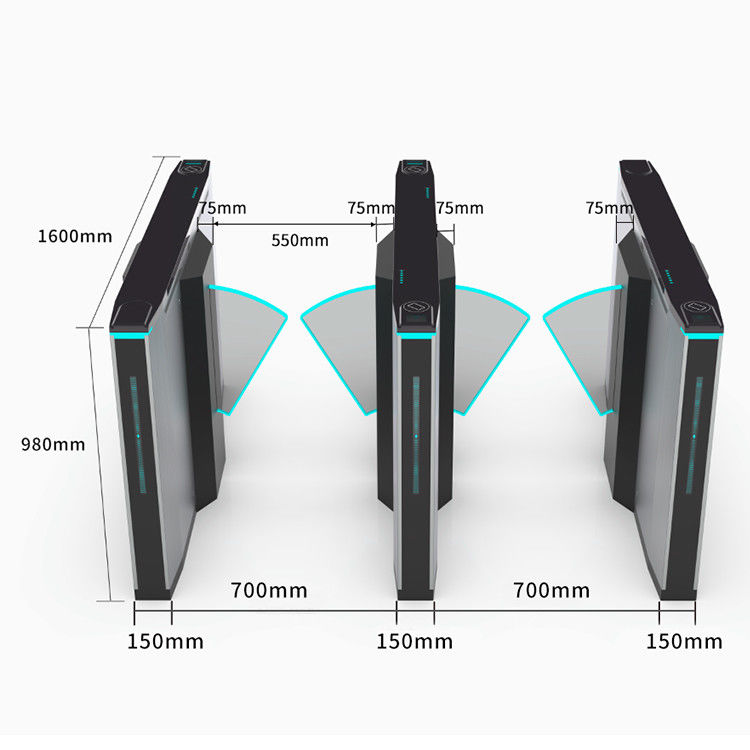

Product Size 1600*300*980mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.2mm
Passage Direction Single directional/Bi-directional
Standard Channel Width 550mm
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 30~35p/m
Reaction Time 0.2S
Driving Voltage DC24V 4.2A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Full Height Flap Gate Mechanism
Back up power Supercapacitor(12V/3A)
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1. This flap barrier gate conduct fault self-check when it is turned on and it has siren prompt if it detects faults during its turning on.

2. The operation status of the flap gate can be programmed at the main control panel.

3. It has anti-pinch function. If the turnstile arms catch something when they are about to close, the gate will open again to avoid hurting people and the gate itself.

4. The flap barrier turnstile gate has acoustic and light alarm: When the gate is on standby status, LED on the gate is blue, when visitors passing the gate, it is green, and when visitors are not authorized but tried to enter the gate passage, the LED will turn red and buzzer in the gate will beep to give prompt of authorization violation.

5. The gate is also “Anti-collision”: If something bumps into the gate too hard, its driving motor will stop working and tried to protect itself from damage of the impact.

6. The data of turnstiles in different channels is synchronized.

7.. The system will automatically cancel the visitor's access permission if the visitor did no pass within the setting time, and it will resume to "waiting for open" status after 6 seconds by default, and users can also adjust the “waiting duration” when the gate will resume to work..

8. The turnstile will automatically open after power-off and close automatically after power-on.

9. It can be linked with a variety of readers like fingerprint reader, RFID reader, QR reader, and face recognition etc.

10. Single direction or two-way direction control of accessing for entry and exit is available.


Customization Available

To make our gate more suitable for your projects, we can also do different settings for the gate or change the gate design for different scenarios. You are always welcome to communicate with our sales team.
