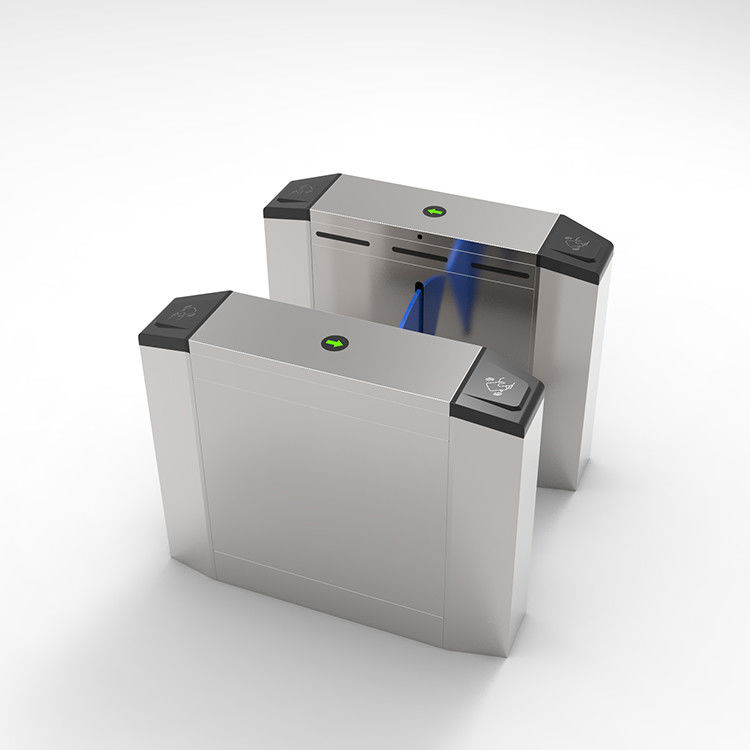

HPT AG-PX21122802 Flap Barrier Turnstiles For Security Flow Management

HPT AG-PX21122802 Flap Barrier Turnstiles For Security Flow Management

Security Flap Barrier Turnstiles

Flow Management Flap Barrier Turnstiles

Flow Management Turnstile Security Gates

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Passage Width:
SUS304 Stainless Steel
Product Name:
Flap Turnstile
Single Core & Double Core
Payment & Shipping Terms
Product Description

HPT AG-PX21122802 Automated Flap Barrier Turnstiles


Product Description

HPT AG-PX21122802 flap barrier gate is a sophisticated and modern gate system that is designed to control pedestrian traffic in a secure and efficient manner. The gate system features a sleek and contemporary design, making it suitable for installation in a range of environments such as train stations, airports, office buildings, and shopping malls.

One of the main functions of a flap barrier gate is to provide access control. The gate is equipped with sensors that detect the presence of a person, and once authorized, the gate opens automatically and allows the person to pass. This feature helps to prevent unauthorized entry, ensuring that only authorized personnel are allowed to access the premises or designated area.

Another function of a flap barrier gate is to track and record the movement of people. The gate system is integrated with advanced technology that enables it to monitor the movement of people, creating an audit trail that can be used for security purposes. This makes it easy to identify and apprehend anyone who tries to gain access to a restricted area or engage in unlawful activities.

Additionally, a flap barrier gate is designed to provide a high level of safety to pedestrians. The gate features a mechanism that stops the flap immediately when it comes in contact with an obstruction, preventing accidents and injuries.

Overall, a flap barrier gate is an elegant and effective solution for controlling pedestrian traffic flow while enhancing security and safety in public areas. It provides a great level of convenience, security, and efficiency, making it a great investment for any facility that wants to maintain high-security standards.

HPT AG-PX21122802 Flap Barrier Turnstiles For Security Flow Management 0

HPT AG-PX21122802 Flap Barrier Turnstiles For Security Flow Management 1



Product Size 1200*280*960mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.0mm
Passage Direction Single directional/Bi-directional
Passage Width 550MM
Sensor 3 pairs of active infrared intrusion detector
Throughput Rate 30p/m
Reaction Time 0.2S
Driving Voltage DC24V 4.2A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brush/ Brushless DC Motor
Mechanism Half Height Flap Gate Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
LED Single/ Triple color LED (optional)
Acoustic Alarm Buzzer Alarm (optional)



1. The flap barrier gate checks for errors when it is opened and sounds a warning siren if any are found.

2. At the main control panel, the operating state of the flap gate can be predetermined.

3. There is a stop-pinching feature. When the turnstile arms are about to close, the gate will automatically open to safeguard the travelers as well as the gate itself.

4. The flap barrier turnstile gate has an audible and visible alarm. When the gate is in standby mode, its LED is blue. When someone treads on it, green light comes out of it. When someone tries to use the gate route without permission, it flashes red. To alert persons of the authorization violation, the bell on the gate beeps.

5. The gate also incorporates "Anti-Collision" technology, allowing the driving motor to halt and attempt self-defense in the event that something slams into it too violently.

6. The data from the turnstiles is synchronized using a variety of channels.

7. If the visitor does not pass within the allotted time, the system will automatically withdraw their access permission, and it will by default return to the "waiting for open" status after 6 seconds. The user can choose the amount of time they wish to wait before the gate reopens using the "waiting duration" parameter.

8. Whenever the electricity is turned on and off, the turnstile will automatically open and close.

9. It can be connected to a variety of readers, including those that make use of RFID, facial recognition, and fingerprint recognition.

10. In order to limit entry and leave, a walkway may be one way or two ways.


Customization Available

To make our gate more suitable for your projects, we can also do different settings for the gate or change the gate design for different scenarios. You are always welcome to communicate with our sales team.
