Retractable Flap Barrier Gate , Flap Optical Barrier Turnstiles

Retractable Flap Barrier Gate , Flap Optical Barrier Turnstiles

Flap Barrier Gate 550mm

SUS304 Flap Barrier Gate

Flap Optical Barrier Turnstiles

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Office, Hotel, Library, Metro Station, Ect.
Passage Width:
SUS304 Stainless Steel
Product Name:
Flap Barrier High Speed Turnstile
Payment & Shipping Terms
Product Description

Flap Barrier Gate Retractable Flap Barrier Optical Barrier Turnstiles


Product Description

HPT AG-PX21122802 flap barrier gate, a state-of-the-art solution to streamline and secure entry and exit points in a variety of commercial and public settings. Designed with the latest technology, this barrier gate operates with unmatched efficiency and provides reliable protection against unauthorized access.

The AG-PX21122802 flap barrier gate is easy to install and operate, featuring a user-friendly interface that allows for customizable settings and configurations. With durable materials and construction, this barrier can withstand high traffic volumes and harsh weather conditions, ensuring long-lasting performance and reliable security.

Ideal for use in airports, train stations, office buildings, parking garages, and other areas where controlled entry and exit is required, our flap barrier gate is a cost-effective solution that reduces the need for additional security personnel while providing unmatched peace of mind.

Discover the benefits of our AG-PX21122802 flap barrier gate and join the ranks of satisfied customers who have experienced the difference in security and efficiency with our innovative product.

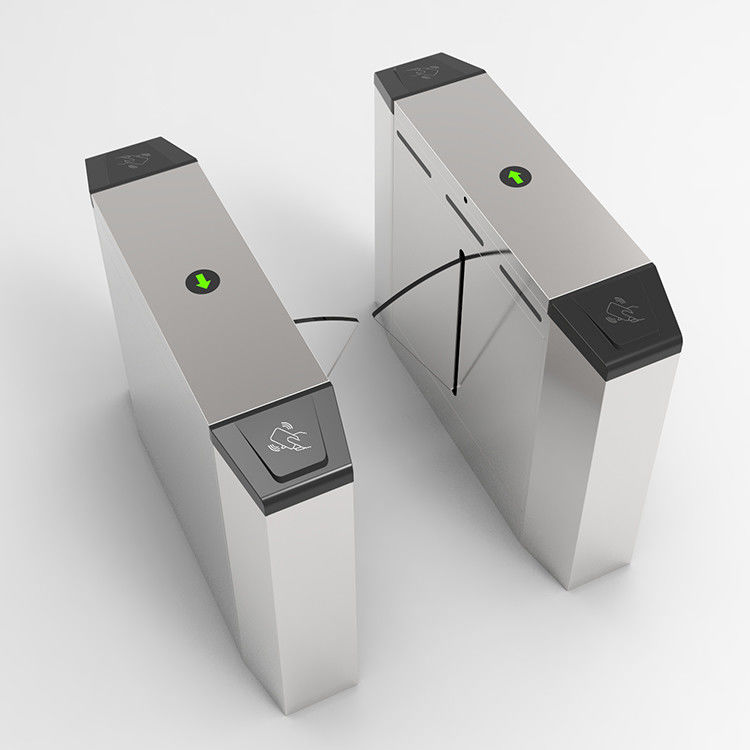

Retractable Flap Barrier Gate , Flap Optical Barrier Turnstiles 0

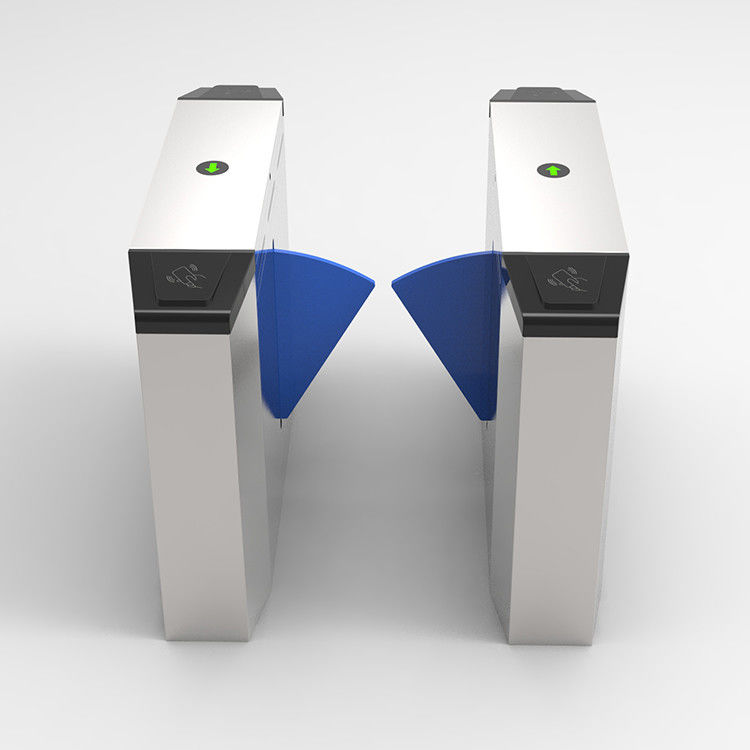

Retractable Flap Barrier Gate , Flap Optical Barrier Turnstiles 1



Product Size 1200*280*960mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.0mm
Passage Direction Single directional/Bi-directional
Passage Width 550MM
Sensor 3 pairs of active infrared intrusion detector
Throughput Rate 30p/m
Reaction Time 0.2S
Driving Voltage DC24V 4.2A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brush/ Brushless DC Motor
Mechanism Half Height Flap Gate Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
LED Single/ Triple color LED (optional)
Acoustic Alarm Buzzer Alarm (optional)



1. The flap barrier gate checks for errors when it is opened and sounds a warning siren if any are found.

2. At the main control panel, the operating state of the flap gate can be predetermined.

3. There is a stop-pinching feature. When the turnstile arms are about to close, the gate will automatically open to safeguard the travelers as well as the gate itself.

4. The flap barrier turnstile gate has an audible and visible alarm. When the gate is in standby mode, its LED is blue. When someone treads on it, green light comes out of it. When someone tries to use the gate route without permission, it flashes red. To alert persons of the authorization violation, the bell on the gate beeps.

5. The gate also incorporates "Anti-Collision" technology, allowing the driving motor to halt and attempt self-defense in the event that something slams into it too violently.

6. The data from the turnstiles is synchronized using a variety of channels.

7. If the visitor does not pass within the allotted time, the system will automatically withdraw their access permission, and it will by default return to the "waiting for open" status after 6 seconds. The user can choose the amount of time they wish to wait before the gate reopens using the "waiting duration" parameter.

8. Whenever the electricity is turned on and off, the turnstile will automatically open and close.

9. It can be connected to a variety of readers, including those that make use of RFID, facial recognition, and fingerprint recognition.

10. In order to limit entry and leave, a walkway may be one way or two ways.


Customization Available

To make our gate more suitable for your projects, we can also do different settings for the gate or change the gate design for different scenarios. You are always welcome to communicate with our sales team.
