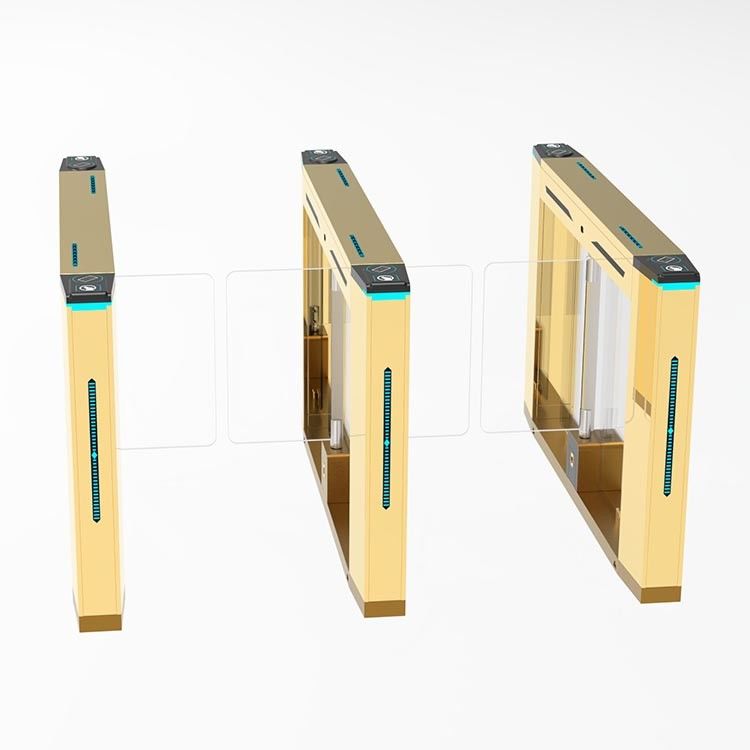

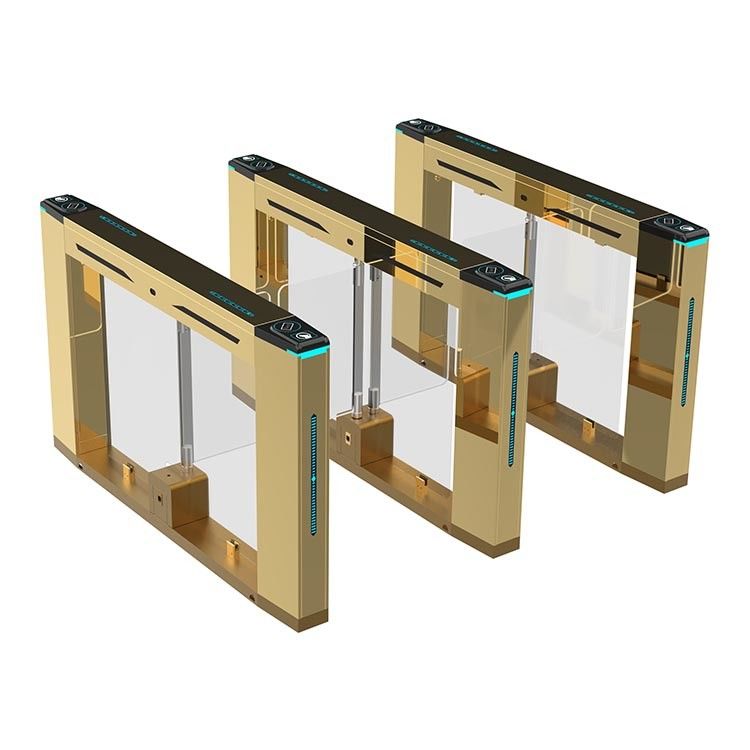

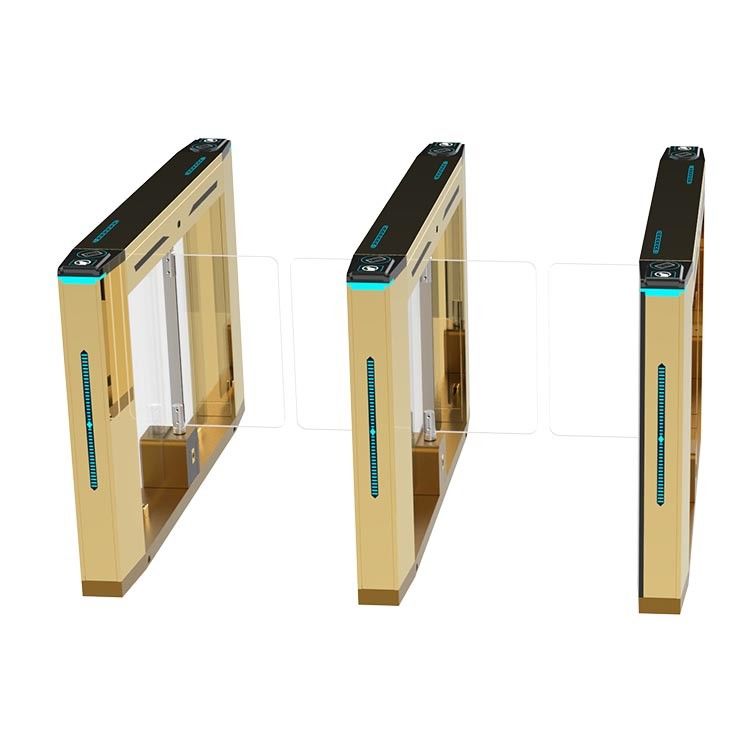

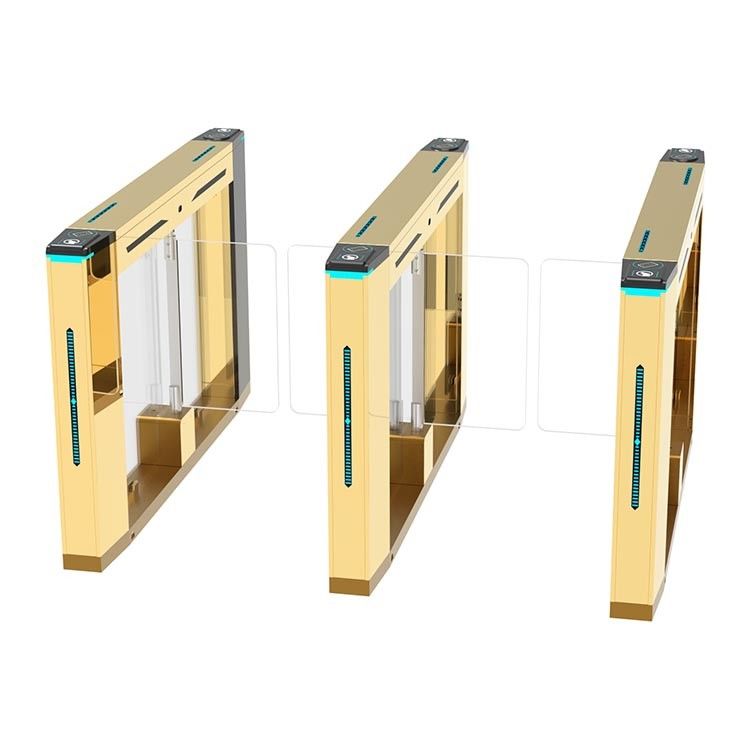

Pedestrian Sliding Barrier Gate

Place of Origin China
Brand Name HPT
Certification CE, FCC, ISO
Model Number AG-TX38161502
Minimum Order Quantity 1

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Swing Barrier Speed Gate Model AG-TX38161502
Dimension 1600*150*980mm Material SUS 304 Stainless Steel
Motor Brushless Servo Motor Thickness Top: 1.2mm+body: 1.2mm
Standard Channel Width 600mm Sensor 5 Pairs Of Active Infrared Intrusion Detector
Throughput Rate 40~60P/M Reaction Time 0.2S
Working Temperature ·-20~+70℃
High Light

Pedestrian Sliding Barrier Gate


60P/M Sliding Barrier Gate


Stainless Steel Sliding Gate Turnstile

Leave a Message
Product Description


Product Video, please find in this youtube link:


Product Description


HPT Sirius series turnstile gate is one of the latested appearance design from HPT Technology. Swig barrier gate AG-TX38161502 of this seriues is wildly applicable for different occasions and with fast operation speed and elegant appearance.


The pedestrian channel gate model AG-TX38161502 is the best access control option for entrances and exits. It has a straightforward setup process, sturdy metal construction, and an easy-to-install design. The lightning-fast mechanism offers fluid movement and instantaneous passageway control. It may be combined with other access control systems and is intended for regions with medium to heavy traffic. Wings on the gate can be adjusted to an angle of up to 90 degrees. In the case of an accident, damage to pedestrians and property is avoided thanks to its integrated anti-crush technology. It offers a secure and practical experience thanks to its adjustable speed and sound level. For secure entry and exit control, the AG-TX38161502 pedestrian channel gate is a high-performance option.




Product Size 1600*150*980mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.2mm
Passage Direction Single directional/Bi-directional
Standard Channel Width 600mm (≤900mm optional)
Sensor 5 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless Servo Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




1,The opening speed of the swing barrier gate arms can be adjusted to suit the needs of different settings.

2. The gate has automated defect detection when it is turned on, and when it is turned off or shut down, the gate arms return to their original positions. Additionally, it automatically inspects itself upon opening and alerts users when flaws are discovered.

3. It offers a variety of functioning modes, including single- and double-way card reading, waiting for everyone to pass before allowing passage, and others.


4. The swing barrier gate features an anti-collision function. If the gate arms collide with something when shutting, they will automatically open again, or if the collision is particularly severe, the motor will shut off to prevent further damage. After default waiting, it will close once more.

5. This gate also features an anti-pinch function, which means that when a person passes it, the sensors on the gate will maintain it open to ensure that they pass safely. The gate baffle wing will also reopen if it notices someone rushing in just as it is about to close in an effort to avoid catching them.

6. The gate is suitable for use indoors and outdoors and is waterproof, sunproof, cold-resistant, and temperature resistant.


7. The turnstile gate is compatible with a variety of access control systems, including those that use RFID cards, IC cards, facial recognition technology, fingerprint technology, etc.


Customization Avaible

To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.
