AG-HX56143302 Electronic Turnstile Slidng Gate From Security Turnstile Suppliers
Product Description
The AG-HX56143302 sliding gate pedestrian management solution refers to a system designed to control and manage pedestrian access to a restricted area or private property by utilizing a sliding gate. This system is typically used by industries, facilities, and communities that require tight security measures to safeguard against unauthorized access. The sliding gate is motorized and can be operated remotely, and it is equipped with sensors to detect pedestrians and monitor their movement. The pedestrian management solution ensures that only authorized individuals can access the restricted area and helps to enhance security and safety within the property. This solution can be customized to fit the specific needs and requirements of the property owner and provides an effective and reliable way of managing pedestrian access.
Datasheet
| Specification | |

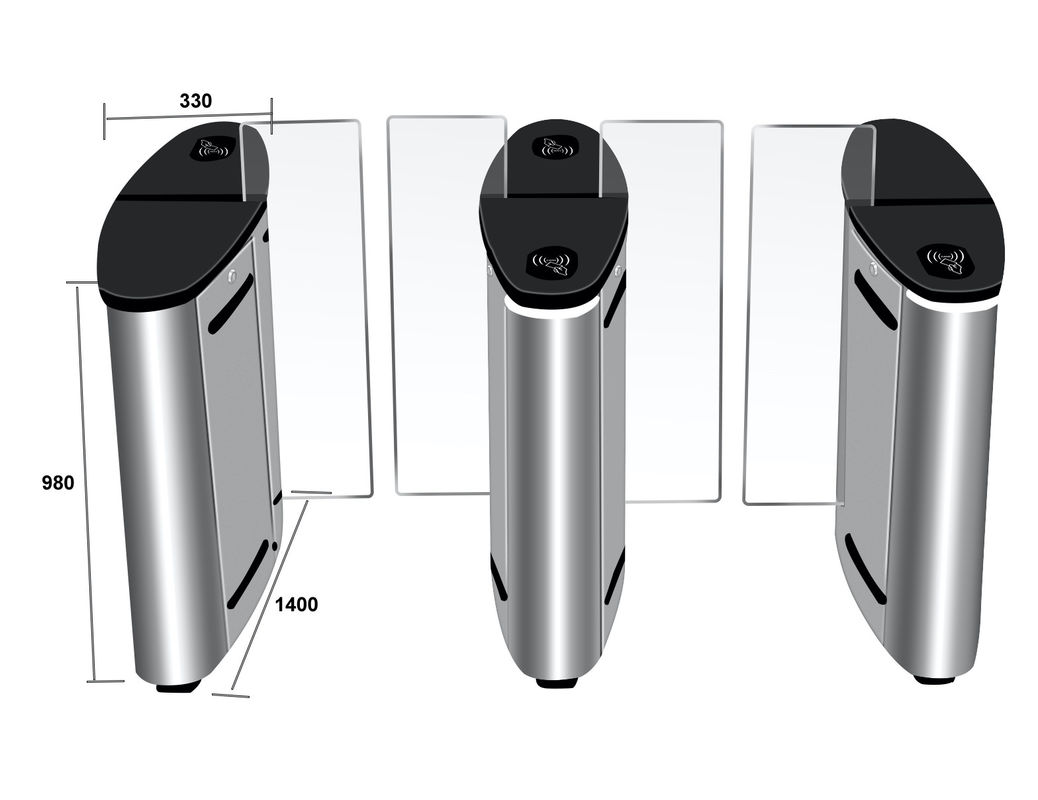

| Product Size | 1400*330*980mm |
| Material | SUS 304 Stainless Steel |
| Thickness | 1.2mm |
| Passage Direction | Single directional/Bi-directional |
| Passage Width | 600mm |
| Sensor | 4 pairs of active infrared intrusion detector |
| Reaction Time | 0.2S |
| Throughput Rate | 20~25p/m |
| Working Temperature | ·-20~+70℃ |
| Driving Voltage | DC24V |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Indication | LED direction indication |
| Acoustic Alarm | Buzzer Alarm |
| Back up power | Supercapacitor(12V/3A) |
Functionality
1. Upon activation, this sliding gate conducts a fault self-check and, if any issues are discovered, sounds a warning siren. The turnstile will automatically open and close when the electricity is turned on and off.
2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.
3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.
4, The gate has a high-luminance LED accessibility indicator.
5, There is an audible and visible alert on this sliding gate turnstile. The LED is on when the gate is in standby mode.
6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.
7, The sliding gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.
Projects
Customization Available
In order to make our gate more appropriate for your projects, we may also change the gate's settings or design to fit various circumstances. Contacting our sales team is always an option.
