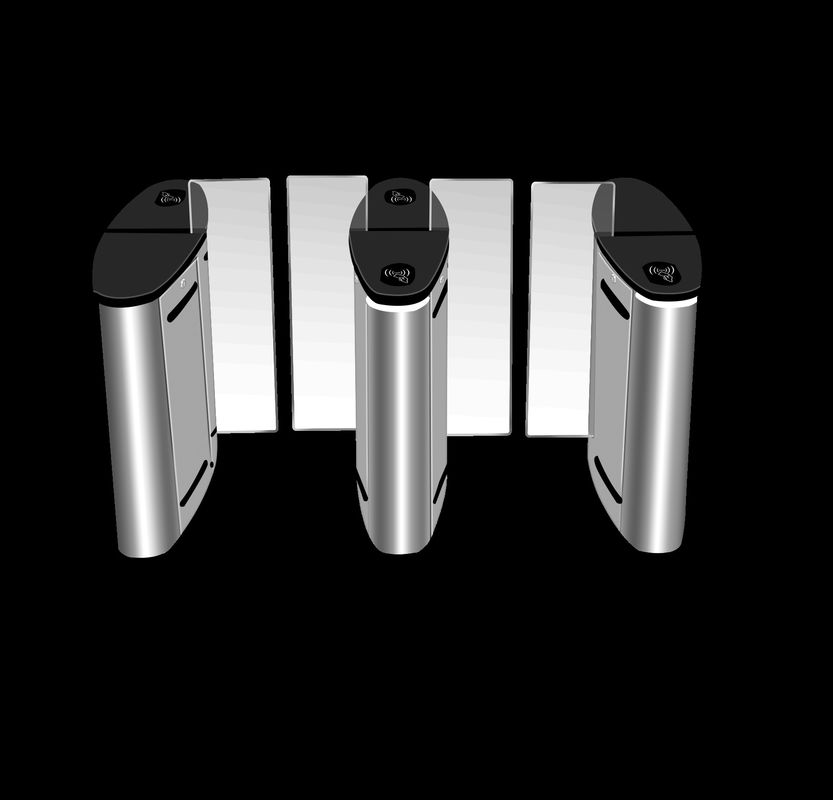

Reliable Schools Sliding Barrier Gate Entrance Access Control System

Reliable Schools Sliding Barrier Gate Entrance Access Control System

Schools Sliding Barrier Gate

Reliable Sliding Barrier Gate

Schools Entrance Access Control System

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Auto Flap Barrier
4 Pairs Of Active Infrared Intrusion Detector
Reaction Time:
Throughput Rate:
Driving Voltage:
Back Up Power:
Payment & Shipping Terms
Product Description

AG-HX56143302 Adjustable Turnstile Sliding Gate Access Control System


Product Description


The AG-HX56143302 sliding gate pedestrian management solution is an innovative system designed to manage pedestrian access through sliding gates while improving security and reducing congestion. The system is ideal for residential communities, commercial buildings, schools, and other high-traffic areas where pedestrian access needs to be carefully controlled.


It is an effective and reliable way to manage pedestrian access through sliding gates, improving security and reducing congestion in high-traffic areas.


Reliable Schools Sliding Barrier Gate Entrance Access Control System 0



Product Size 1400*330*980mm
Material SUS 304 Stainless Steel
Thickness 1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm
Sensor 4 pairs of active infrared intrusion detector
Reaction Time 0.2S
Throughput Rate 20~25p/m
Working Temperature ·-20~+70
Driving Voltage DC24V
Power Input AC110~220V±10%
Motor Brushless DC Motor
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
Back up power Supercapacitor(12V/3A)



- The system is designed to work with any type of sliding gate and can be customized to fit the specific needs of your property.

- The system uses advanced sensors and algorithms to detect and identify pedestrians, reducing false alarms and improving accuracy.

- The system can integrate with other security systems, such as CCTV cameras and access control systems, to provide a complete security solution.

- The system is easy to install and can be managed remotely, allowing you to monitor and control access from anywhere.



- Improved security: The system ensures that only authorized individuals are allowed access through the sliding gate, reducing the risk of unauthorized entry and improving security.

- Reduced congestion: By managing pedestrian access, the system can reduce congestion and improve traffic flow through the gate.

- Easy to use: The system is user-friendly and easy to operate, making it simple for authorized individuals to gain access through the sliding gate.



1. Upon activation, this sliding gate conducts a fault self-check and, if any issues are discovered, sounds a warning siren. The turnstile will automatically open and close when the electricity is turned on and off.


2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.


3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.


4, The gate has a high-luminance LED accessibility indicator.


5, There is an audible and visible alert on this sliding gate turnstile. The LED is on when the gate is in standby mode.


6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.


7, The sliding gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.



Reliable Schools Sliding Barrier Gate Entrance Access Control System 1


Customization Available

In order to make our gate more appropriate for your projects, we may also change the gate's settings or design to fit various circumstances. Contacting our sales team is always an option.
