Access Control Face Recognition Gate Turnstile With LED Direction Indication

Access Control Face Recognition Gate Turnstile With LED Direction Indication

Access Control Face Recognition Gate

Face Recognition Gate Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Turnstyle Automatic Gates
SUS 304 Stainless Steel
Reaction Time:
Driving Voltage:
Power Input:
Back Up Power:
Payment & Shipping Terms
Product Description

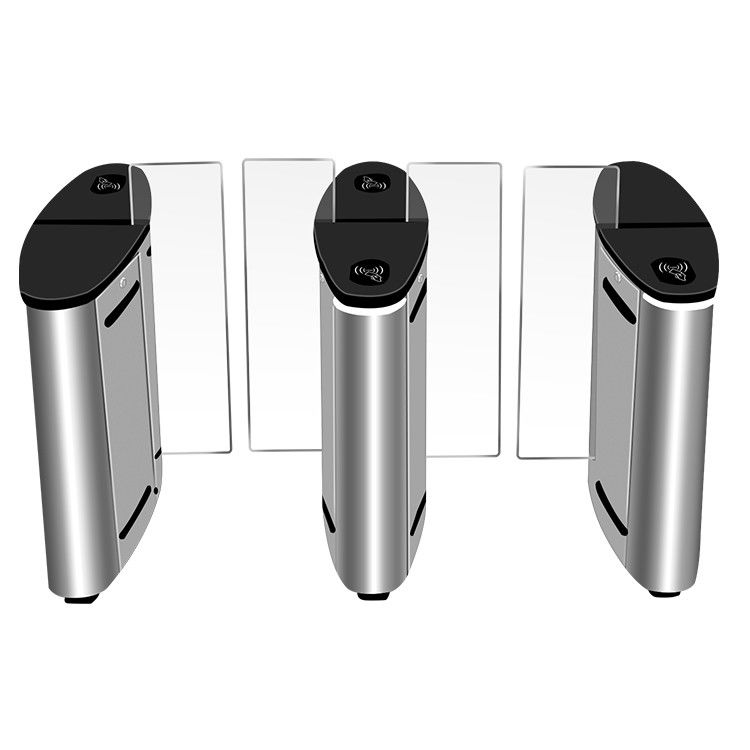

AG-HX56143302 Sliding Barrier Turnstile Gate Entrance Barrier Gate With Direction Led


Product Description

AG-HX56143302 access control sliding gate is a security entrance gate that slides to allow or deny access to buildings or grounds. It is commonly installed in commercial or industrial environments to restrict access to authorized personnel only. The gate is controlled by an access control system that can be operated using various methods, including buttons, remote controls, card readers, or biometric controls. This helps to enhance security and prevent unauthorized access to restricted areas.

Access Control Face Recognition Gate Turnstile With LED Direction Indication 0



Product Size 1400*330*980mm
Material SUS 304 Stainless Steel
Thickness 1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm
Sensor 4 pairs of active infrared intrusion detector
Reaction Time 0.2S
Throughput Rate 20~25p/m
Working Temperature ·-20~+70
Driving Voltage DC24V
Power Input AC110~220V±10%
Motor Brushless DC Motor
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
Back up power Supercapacitor(12V/3A)


- Heavy-duty construction to ensure durability and longevity

- Multiple access control options for flexibility and convenience

- Safety sensors to prevent accidents and injuries

- Automatic opening and closing to reduce manual labor

- Battery backup system to ensure operation during power outages



1. Upon activation, this sliding gate conducts a fault self-check and, if any issues are discovered, sounds a warning siren. The turnstile will automatically open and close when the electricity is turned on and off.


2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.


3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.


4, The gate has a high-luminance LED accessibility indicator.


5, There is an audible and visible alert on this sliding gate turnstile. The LED is on when the gate is in standby mode.


6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.


7, The sliding gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.



Access Control Face Recognition Gate Turnstile With LED Direction Indication 1


Customization Available

In order to make our gate more appropriate for your projects, we may also change the gate's settings or design to fit various circumstances. Contacting our sales team is always an option.
