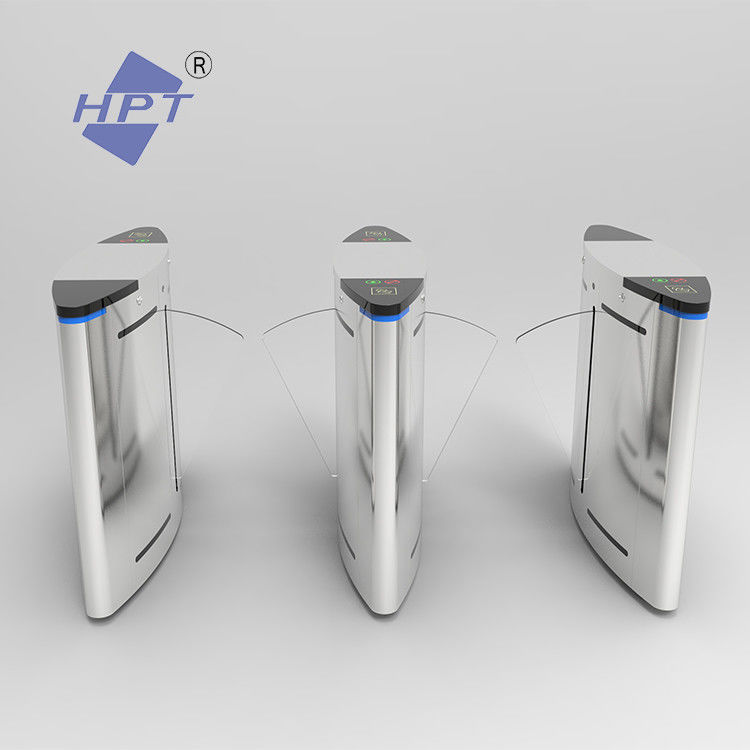

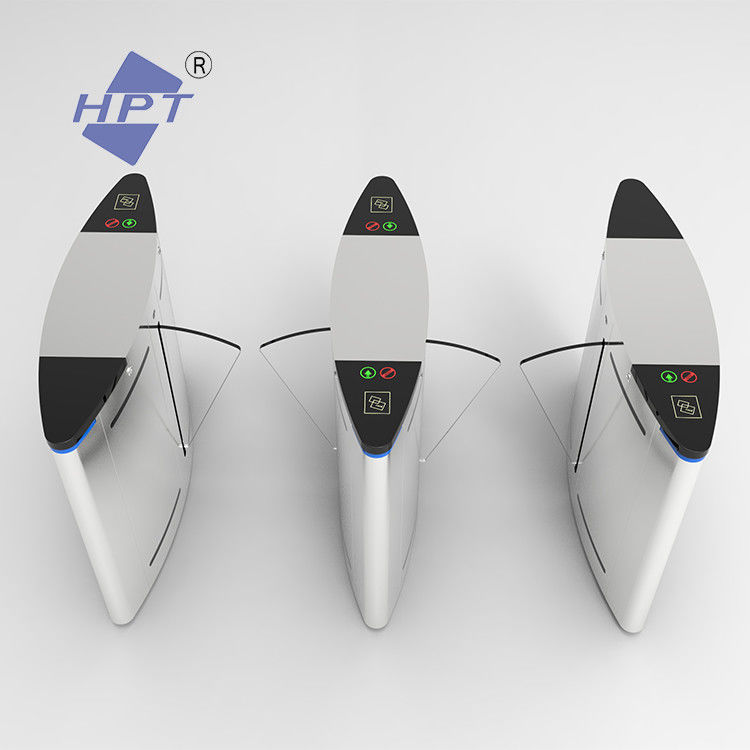

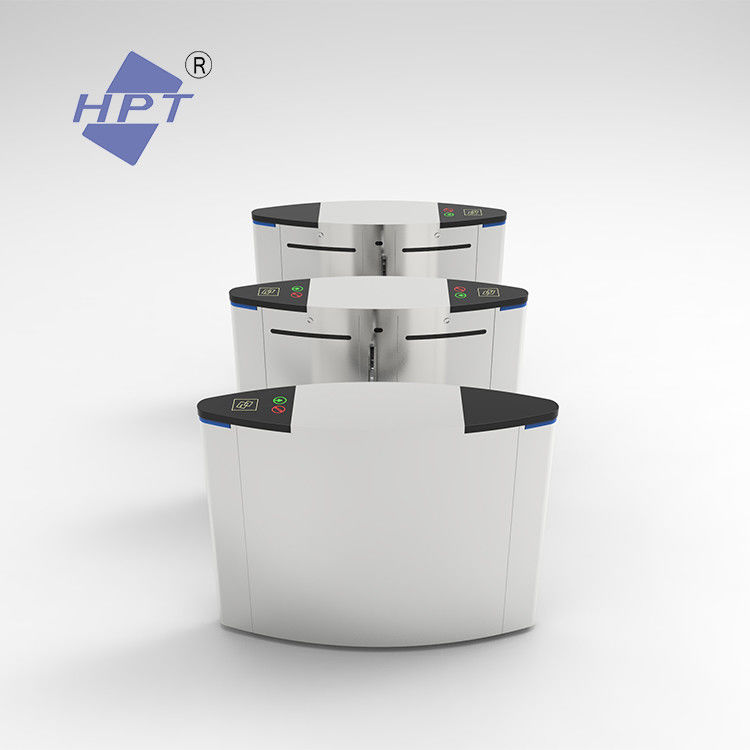

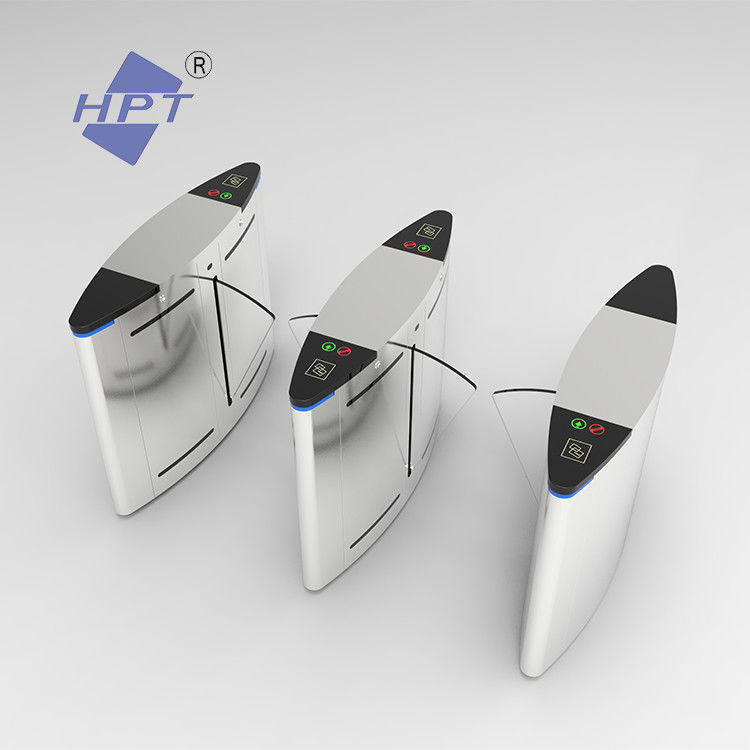

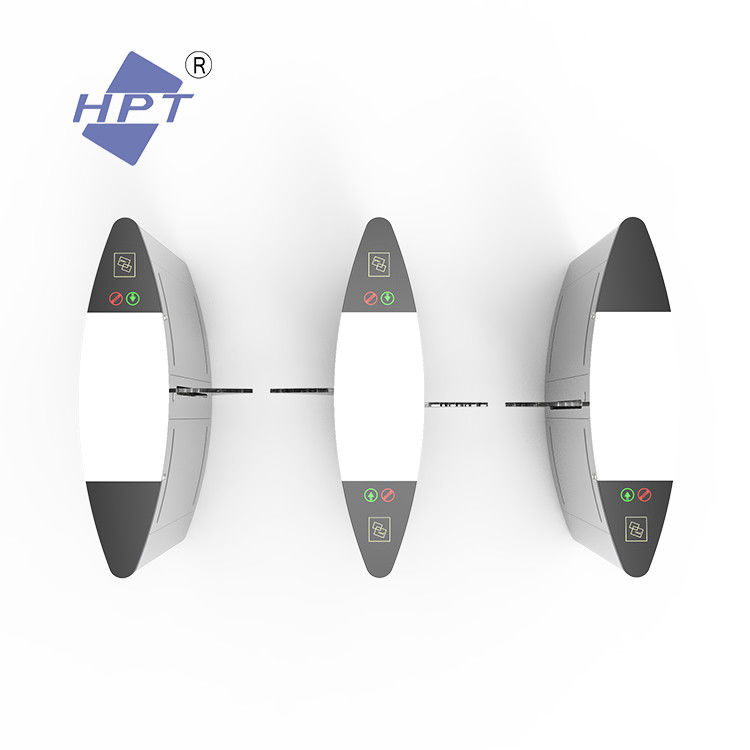

Stainless Steel Flap Turnstile Gate

Place of Origin China
Brand Name HPT
Certification CE; FCC; ISO
Model Number AG-HX27143002

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Flap Barrier Gate Material SUS304 Stainless Steel
Power Supply 110V~240V Weight 63kg
Dimension 1200*300*980 Passage Width 550mm
Direction Bi/direction
High Light

Stainless Steel Flap Turnstile Gate


SUS304 Flap Turnstile Gate

Leave a Message
Product Description

Flap Barrier Turnstile Gate


AG-HX27143002 flap barrier turnstile gate offers you a wide range of integrated access control capabilities to fulfill your security demands. It combines cutting-edge technology in a small form. This product can be utilized both indoors and outdoors as a part of security systems.


Its access control technology allows several authentication methods (card/fingerprint), multiple users, and access rights in addition to individual user preferences.


Also, the turnstile gate has a sturdy, anti-tamper construction that prevents unlawful access. Anti-tailgating technology is also built into the turnstile at the gate, preventing unauthorized users from entering the system. The turnstile gate also has a voice reminder mechanism that warns users when it needs to be triggered.


In addition, the emergency stop and emergency bypass features on the Passage turnstile gate make it possible for emergency personnel to enter the area swiftly and efficiently in the event of a crisis.


This device will enhance any security system because it is the ideal synthesis of control and dependability.

Stainless Steel Flap Turnstile Gate 0


Product Size 1400*300*1000mm
Material SUS 304 stainless steel
Thickness Top:1.5mm+body1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 550mm
Sensor 3 pairs of active infrared intrusion detector
Throughput Rate 30~35p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Half Hight Flap Gate Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED

Stainless Steel Flap Turnstile Gate 1



1. Upon activation, this flap barrier gate conducts a fault self-check and, if any issues are discovered, emits a warning siren.

2. The operational way -- accessing mode of the flap gate can be predetermined at the main control panel.

3. It has a feature that prevents pinching. If the turnstile arms come into touch with something as they are about to close, the gate will automatically reopen to protect both individuals and the gate itself.

4.The flap barrier turnstile gate features an audible and visual alarm. The gate's LED is blue when it is in the standby mode, green when someone passes through it, and red when someone tries to enter the gate passage without authorization. The buzzer in the gate beeps to warn individuals of the authorization violation.

5. The gate also has "Anti-Collision" technology, which means that if something slams into it too hard, the driving motor will shut off and try to protect itself from the harm.

6. Data for turnstiles from various passages is synced.

7. The system will immediately cancel the visitor's access permit if they do not leave within the specified period. Users can vary this time by adjusting the "waiting duration," which controls how long the system waits before returning the gate to "waiting for open" status.

8. The turnstile will automatically open and close when the electricity is turned on and off.

9. Various readers, such as fingerprint, RFID, and facial recognition readers, can be linked to the flap barrier gate.

Stainless Steel Flap Turnstile Gate 2



Customization Available

In order to make our gate more appropriate for your projects, we may also change the gate's settings or design to fit various circumstances. Contacting our sales team is always an option.
