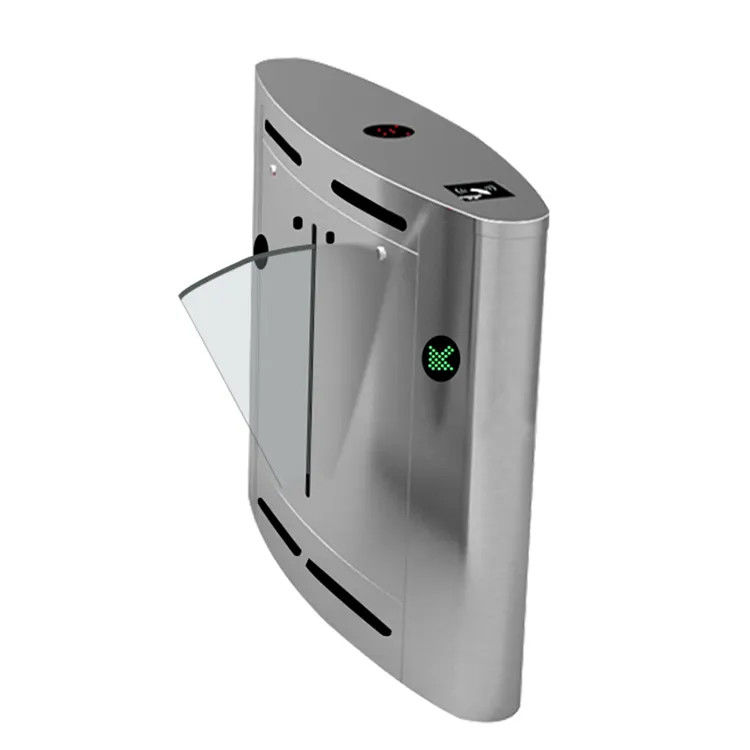

Custom Security Flap Barrier Turnstile

Place of Origin China
Brand Name HPT
Certification CE; FCC; ISO
Model Number AG-HX27123002

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material SUS304 Stainless Steel Product Name Flap Barrier Gate
Power Supply AC110~220V±10% Dimension 1200*300*980mm
Application Indoor / Outdoor Warranty 1 Year
Communication Interface Dry Contact/RS485/RS232 Passage Width 550mm (One Passage)
High Light

Custom Flap Barrier Turnstile


Security Flap Barrier Turnstile


High Security Turnstiles Manufacturers

Leave a Message
Product Description

Flap Barrier Security Turnstile Gate From Turnstile Gate Manufacturers


Product Description

We are pleased to introduce our new range of flap barrier gate turnstiles. The turnstile is ideal for medium to high pedestrian traffic flow areas, such as public transportation sites, shopping centers, and corporate buildings etc.


Our flap gate turnstiles is designed to provide high security and safety standards while also enhancing the aesthetic appeal of the site. The turnstile is made of high-quality materials, which makes them durable and able to withstand harsh weather conditions.


In addition, we offer customizable options such as glass barriers, card readers, and a variety of finishes.


Our flap barrier gate turnstile is easy to install, operate, and maintain. It is also user-friendly with a simple interface that requires minimal training. Furthermore, our turnstile meets international safety and reliability standards.


Thank you for considering our flap barrier gate turnstile range. Please do not hesitate to contact us if you have any questions, or if you would like to request a quote.



Custom Security Flap Barrier Turnstile 0

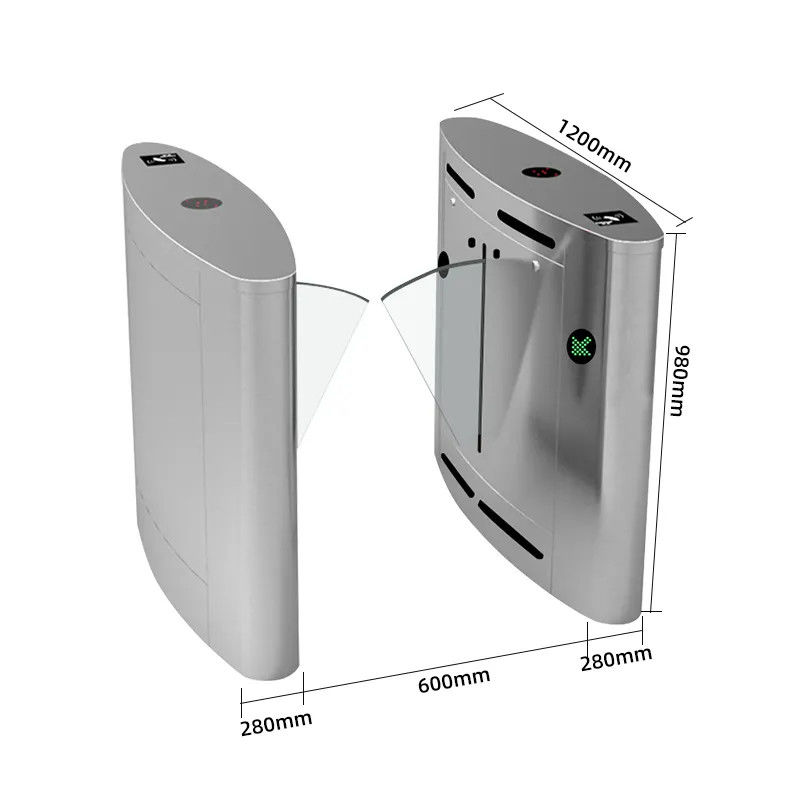

Product Size 1200*300*980mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.0mm
Passage Direction Single directional/Bi-directional
Passage Width 550mm
Sensor 3 pairs of active infrared intrusion detector
Throughput Rate 30~35p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Half Hight Flap Gate Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED



1. This flap barrier gate conduct fault self-check when it is turned on and it has siren prompt if it detects faults during its turning on.

2. The operation status of the flap gate can be programmed at the main control panel.

3. It has anti-pinch function. If the turnstile arms catch something when they are about to close, the gate will open again to avoid hurting people and the gate itself.

4. The flap barrier turnstile gate has acoustic and light alarm: When the gate is on standby status, LED on the gate is blue, when visitors passing the gate, it is green, and when visitors are not authorized but tried to enter the gate passage, the LED will turn red and buzzer in the gate will beep to give prompt of authorization violation.

5. The gate is also “Anti-collision”: If something bumps into the gate too hard, its driving motor will stop working and tried to protect itself from damage of the impact.

6. The data of turnstiles in different channels is synchronized.

7.. The system will automatically cancel the visitor's access permission if the visitor did no pass within the setting time, and it will resume to "waiting for open" status after 6 seconds by default, and users can also adjust the “waiting duration” when the gate will resume to work..

8. The turnstile will automatically open after power-off and close automatically after power-on.

9. It can be linked with a variety of readers like fingerprint reader, RFID reader, QR reader, and face recognition etc.

10. Single direction or two-way direction control of accessing for entry and exit is available.

Custom Security Flap Barrier Turnstile 1


Customization Available

To make our gate more suitable for your projects, we can also do different settings for the gate or change the gate design for different scenarios. You are always welcome to communicate with our sales team.
