Biometric RFID Card Turnstile

Place of Origin China
Brand Name HPT
Certification CE; FCC; ISO
Model Number AG-HX35141802

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Swing Barrier Gate Turstile Material SPCC
Type Swing Barrier Dimension 1400*180*1000mm
Weight Single Core 38kg/dual Core 48 Kg
High Light

Biometric RFID Card Turnstile

,

SPCC RFID Card Turnstile

Leave a Message
Product Description

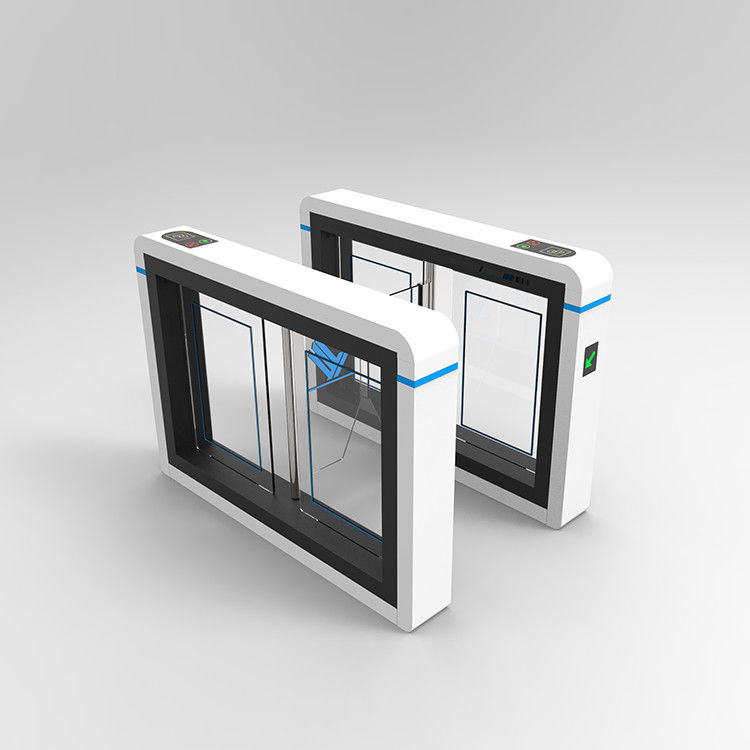

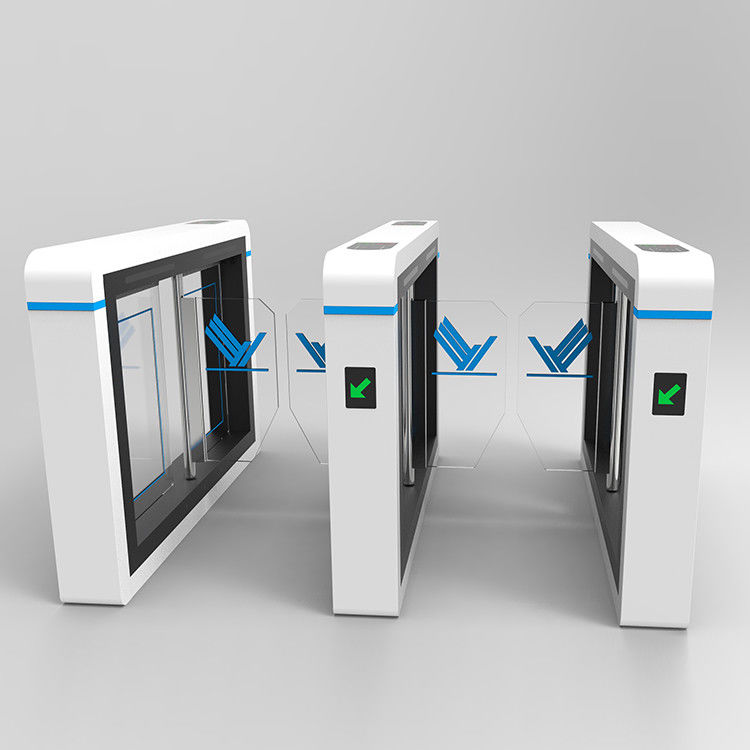

AG-HX35141802 Access Control Swing Turnstile Barrier Biometric And Rfid Card Reader Turnstile

HPT AG-HX35141802 swing barrier gate is our latest addition to enhance the security of your premises - the White Color Turnstiles Speed Barriers. This sleek and modern design blends seamlessly with your existing décor and is engineered to provide an unparalleled level of security and speed to regulate the entry and exit of people.

The turnstiles are easy-to-use, efficient, and ensure accurate counting of authorized entries and exits. The speed barriers boast superior sensing technology that detects and controls the speed of passages, saving time and reducing the need for queues.

Crafted from high-grade materials, the turnstiles speed barriers are built to endure high traffic volume and harsh weather conditions with minimal maintenance. The turnstiles are equipped with LED lights that indicate passage and enhance visibility, while the speed barriers include safety sensors that detect obstructions and prevent accidents.

Whether it's for an office building, government facility, or any other premise, the speed barriers provide undeniable convenience, security, and control. Far from being just a security tool, these turnstiles and barriers also elevate the aesthetic appeal of your space. Choose our turnstile today and experience the perfect blend of style and security.

Biometric RFID Card Turnstile 0

Specification



Specification
Product Size 1400*180*1000mm
Material SPCC
Thickness 1.2mm
Passage Direction single directional/Bi-directional
Passage Width 600mm (≤800mm optional)
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED







Biometric RFID Card Turnstile 1

Functionality

1. Upon activation, this swing barrier gate conducts a fault self-check and, if any issues are discovered, emits a warning siren. When the electricity is switched off and on, the turnstile will automatically open and close.

2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.

3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.

4, The gate has a high-luminance LED accessibility indicator.

5, There is an audible and visible alert on this swing barrier gate turnstile. The gate's LED is blue when it is in the standby mode, green when someone passes through it, and red when someone tries to enter the gate passageway without authorization. The buzzer in the gate beeps to warn individuals of the authorization violation.

6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.

7, The swing barrier gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.

Biometric RFID Card Turnstile 2





Customization Available

We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always reach out to our sales staff.
