Anti Collision Swing Barrier Turnstile
| Place of Origin | China |
|---|---|
| Brand Name | HPT |
| Certification | CE, FCC, ISO |
| Model Number | AG-TX38161502 |
| Minimum Order Quantity | 1 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Swing Barrier Speed Gate | Model | AG-TX38161502 |
|---|---|---|---|

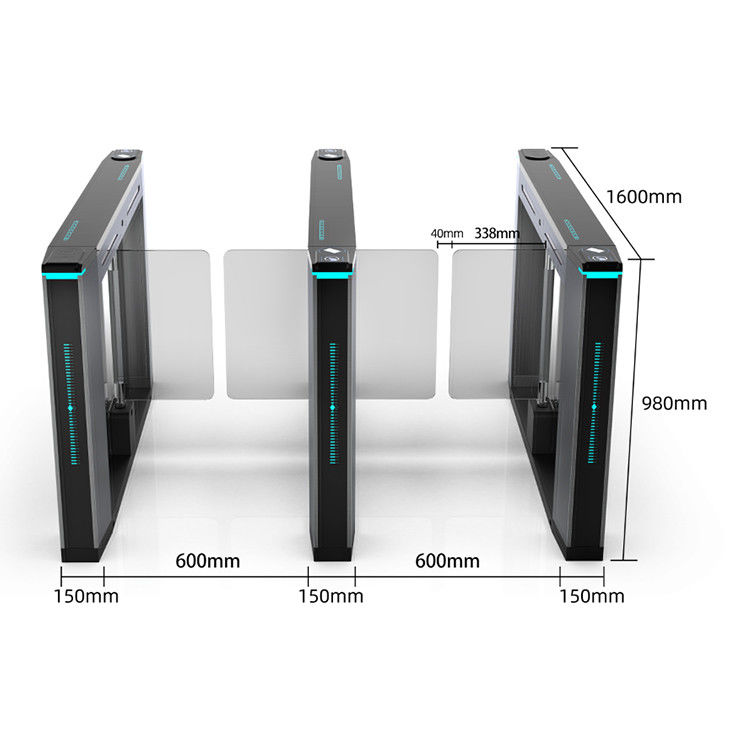

| Dimension | 1600*150*980mm | Material | SUS 304 Stainless Steel |
| Motor | Brushless Servo Motor | Thickness | Top: 1.2mm+body: 1.2mm |
| Standard Channel Width | 600mm | Sensor | 5 Pairs Of Active Infrared Intrusion Detector |
| Throughput Rate | 40~60 P/M | Reaction Time | 0.2S |
| Working Temperature | ·-20~+70℃ | ||
| High Light | Anti Collision Swing Barrier Turnstile,ISO Swing Barrier Turnstile Gate |
||
Product Description
New Design Appearance Patent Swing Barrier Gate Biometric Turnstile
Product Video, please find in this youtube link: https://youtube.com/shorts/nSxAzqFJhZg?feature=share
Product Description
HPT Sirius series turnstile gate is one of the latested appearance design from HPT Technology. Swig barrier gate AG-TX38161502 of this seriues is wildly applicable for different occasions and with fast operation speed and elegant appearance.
It is unique design. To make this gate faster, stable, and serving life longer, HPT applies brushless servo motor as its driving force and the accessing rate reaches 60P/M. The operation speed of the driving motor can be adjusted according to different projects purposes. Its passage width can be 1100 mm or less. The powerful driving motor also make it possible to use a tempered galss as its baffle wing instead of acrylic.
HPT decorated some of our private tooings as parts on the gate including its reader cover, LEDs to make it more distingquished.
It is suitable for both outdoor and indoor.
Specification
| Product Size | 1600*150*980mm |
| Material | SUS 304 stainless steel |
| Thickness | Top:1.2mm+body1.2mm |
| Passage Direction | Single directional/Bi-directional |
| Standard Channel Width | 600mm (≤900mm optional) |
| Sensor | 5 pairs of active infrared intrusion detector |
| Throughput Rate | 25~30p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 6.25A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless Servo Motor |
| Mechanism | Brushless Anti-collision Integrated Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
Functionality
1. AG-TX38161502 swing barrier gate arms opening speed can be set to meet various scenes requirements.
2. The gate has fault auto-inspection when it is turned on , the gate arms go back to position automatically after it is shut down or power off. It also does auto-inspeciton when it open and sends alarms when finds defects.
3. It supports multiple working modes choices,like single-way, double-way reading cards, each time only one person pass or waiting for all persion to pass etc.
4. The siwng barrier gate has anti-collision function: when the gate arms bump into something during closing, it will open again, or if it is a very hard bump the motor will stop working within ruled time to protect itself from damaging. It will close again after default delaying.
5. This gate also has anti-pinch function: When passsenger passing the gate, the sensors on gate will keep it open to make sure visitor passing the gate passage safely. If it senses people rushing in when it is about to close, the gate baffle wing will also open again to try not to catch people.
6. The gate is waterproof, sunproof, cold-resistant and high temperature resistance which is applicable for both indoor and outdoor.
7. The turnstile gate can work with different access control system like RFID card system , IC card system, face recognition system and fingerprint recognition system etc.
Customization Avaible
To do different passage width for the gate to work for different projects, or to do your customization optical swing barrier gate design , and any kinds of customization is available.
Projects
About Us
Shenzhen HPT Intelligent Technology Co., Ltd is a11 years old experience manufacturer integrated R&D, production and sales of the turnstile and face recognition devices and system located in shenzhen city, China.
