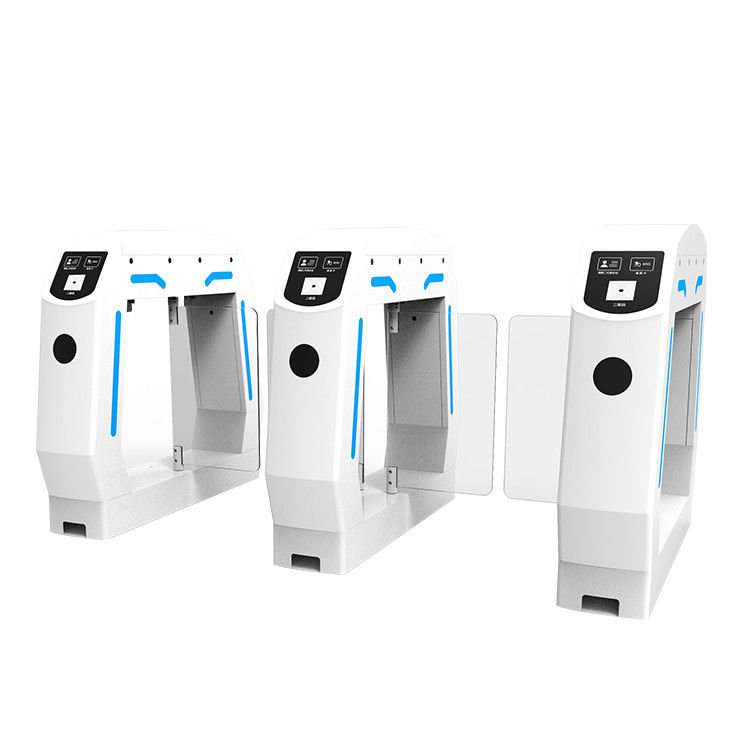

White Swing Barrier Gate Turnstile Optical Type 35 Person /Min For Office School Airport

White Swing Barrier Gate Turnstile Optical Type 35 Person /Min For Office School Airport

White Swing Barrier Gate Turnstile

Swing Barrier Gate Turnstile For Office

Swing Barrier Gate Turnstile For School

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Optical Swing Barrier Gate
1 Year
Power Supply:
RS232,Dry Contact
Passing Speed:
35 Person /min
Single Core & Double Core
Payment & Shipping Terms
Product Description

HPT AG-TX38152502: White, Single/Bi-Directional Passages Swing Barrier Turnstile

Our top-of-the-line swing barrier turnstile HPT AG-TX38152502 – the perfect solution for efficient and secure pedestrian access control.

Our swing barrier turnstile combines sleek and modern design with top-notch technology to provide you with a reliable and stylish access control solution. Its swing arm mechanism provides a smooth and comfortable passage for your guests while ensuring only authorized personnel can access your premises.

With its robust construction and durable materials, our swing barrier turnstile is designed to withstand heavy usage and adverse weather conditions. It is easy to install, maintain, and operate, making it an ideal choice for busy entrances with high traffic flow.

Equipped with state-of-the-art biometric authentication technology, our swing barrier turnstile provides accurate identification and secure access control. It supports various authentication methods, including fingerprint, face recognition, and RFID cards, to ensure your premises remain secure at all times.

Get ready to elevate your entrance experience with our swing barrier turnstile today! Contact us to learn more about our product and request a quote.

White Swing Barrier Gate Turnstile Optical Type 35 Person /Min For Office School Airport 0


Product Size 1200*250*1050mm
Material SPCC
Thickness 1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm
Sensor 4 pairs of active infrared intrusion detector
Reaction Time 0.2S
Throughput Rate 20~25p/m
Working Temperature ·-20~+70
Driving Voltage DC24V
Power Input AC110~220V±10%
Motor Brushless DC Motor
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
Back up power Supercapacitor(12V/3A)



1. This swing barrier gate performs a fault self-check as soon as it is activated, and if any problems are found, a warning siren sounds. When the electricity is turned on and off, the turnstile opens and closes on its own.
2, Peripherals have control signals like buttons, remote controllers or readers which permit control access can work with the gate.
3, Turnstile Arm Return to Initial Position: After a visitor passes through the swing turnstile gate, the turnstile arm automatically returns to its initial position. If no access is made within the specified period, the passing authority will be removed by the system.
4, A high-luminance LED accessibility indicator is present on the gate.

5, There is an audible and visible alert on this swing barrier gate turnstile. The LED is blue when the gate is in standby mode.
6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.
7, The swing barrier gate system is compatible with  a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.



White Swing Barrier Gate Turnstile Optical Type 35 Person /Min For Office School Airport 1


Customization Available

We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always get in touch with our sales team.
