AG-PX31122802 Outdoor Swing Barrier Turnstile SUS 304 1200mm Pass Width

AG-PX31122802 Outdoor Swing Barrier Turnstile SUS 304 1200mm Pass Width

Outdoor Swing Barrier Turnstile

SUS 304 Swing Barrier Turnstile

1200mm Swing Barrier Turnstile

Place of Origin:

China

Brand Name:

HPT

Certification:

CE; FCC; ISO

Model Number:

AG-PX31122802

Contact Us

Request A Quote
Product Details
Anti-collision:
Yes
Anti-tailgating:
Yes
Communication Interface:
RS232
Control Mode:
Button/IC Card/ID Card/Fingerprint Optional
LED Display:
Yes
Material:
Stainless Steel
Passage Speed:
30-40 Persons/min
Passage Width:
<1200mm
Size:
1200*280*960mm
Voltage:
AC220V/50HZ
Working Environment:
Indoor/Outdoor
Working Humidity:
≤90%RH
Working Temperature:
-20℃~+70℃
Payment & Shipping Terms
Payment Terms
T/T
Product Description

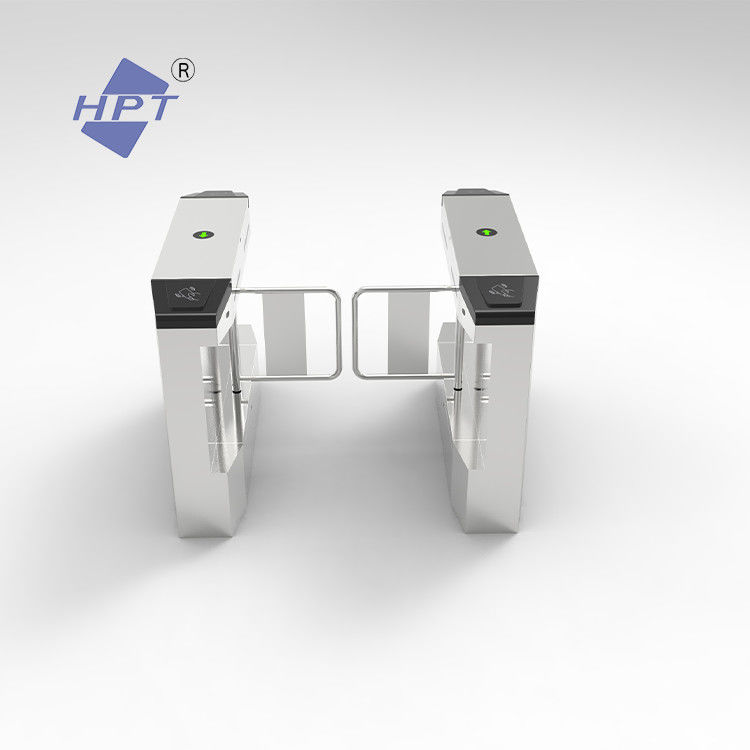

AG-PX31122802 Outdoor Swing Barrier Turnstile, SUS 304, 1200mm Pass Width, MCBF 5M Motor

AG-PX31122802 swing barrier turnstile combines sleek and modern design with top-notch technology to provide you with a reliable and stylish access control solution. Its swing arm mechanism provides a smooth and comfortable passage for your guests while ensuring only authorized personnel can access your premises.

With its robust construction and durable materials, our swing barrier turnstile is designed to withstand heavy usage and adverse weather conditions. It is easy to install, maintain, and operate, making it an ideal choice for busy entrances with high traffic flow.

Equipped with state-of-the-art biometric authentication technology, our swing barrier turnstile provides accurate identification and secure access control. It supports various authentication methods, including fingerprint, face recognition, and RFID cards, to ensure your premises remain secure at all times.

Get ready to elevate your entrance experience with our swing barrier turnstile today! Contact us to learn more about our product and request a quote.

AG-PX31122802 Outdoor Swing Barrier Turnstile SUS 304 1200mm Pass Width 0

AG-PX31122802 Outdoor Swing Barrier Turnstile SUS 304 1200mm Pass Width 1



Specification

Specification
Product Size 1200*280*960mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.0mm
Pass Width 600mm (≤1200mm optional)
Passage Direction Single directional/Bi-directional
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm

AG-PX31122802 Outdoor Swing Barrier Turnstile SUS 304 1200mm Pass Width 2AG-PX31122802 Outdoor Swing Barrier Turnstile SUS 304 1200mm Pass Width 3



Functionality

1. When the swing barrier gate turnstile is turned on, it performs a malfunction self-check and sends an alarm reminder if it discovers a problem.



2, The control panel of the swing barrier gate allows you to configure its operating mode.



3. The gate barrier will open when it detects a fire alarm or a power outage and it has a fire protection port to receive signals from your fire protection devices.



4. When the power is turned on, the gate barriers automatically close, and when the power is turned off, they open.



5 If people don't pass through in the allotted time—which is by default six seconds—the pass right will be terminated (0-60s adjustable).



6, The gate is also compatible with biometric, e-ticket, consumption, and access control systems etc.



7, Direction indication LED is installed on top of this turnstile to give an instinct indication of the gate accessing status.



8, There are two types of flow controls -- single direction access and dual direction access can be applied



9, The gate has protection mechanism. To prevent harming both people and the gate itself, the gate will reopen if the turnstile arms come into contact with something as they are ready to close.



10, The gate also features "Anti-Collision" technology. If something strikes the gate too firmly, the driving motor will stop and attempt to protect the gate from the impact's damage.



Projects

AG-PX31122802 Outdoor Swing Barrier Turnstile SUS 304 1200mm Pass Width 4

Customizing is welcomed

We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always get in touch with our sales team.
