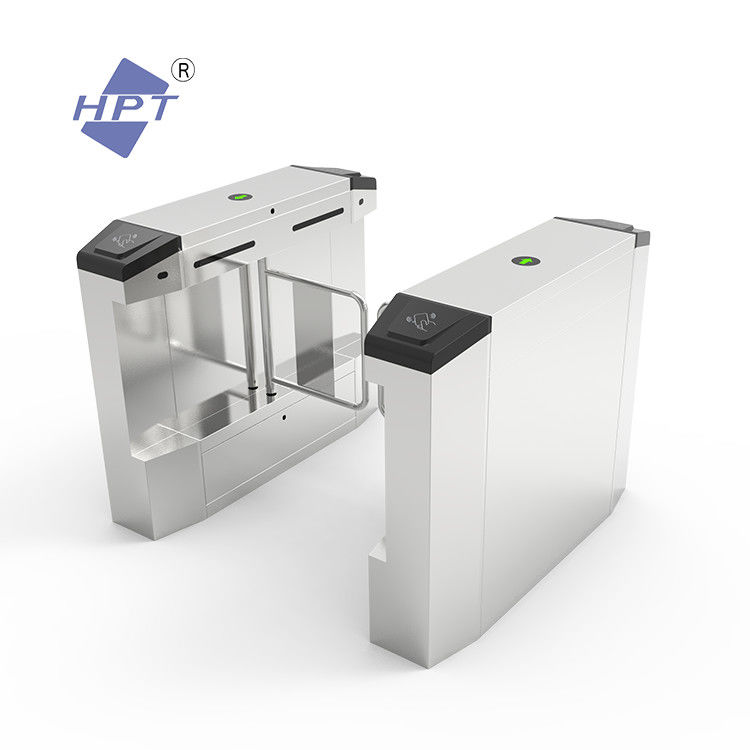

Turnstile Entry Systems Electronic Turnstile Gates With IR Sensors
AG-PX31122802 swing barrier turnstile made with high-quality materials and advanced technology, this turnstile is designed to withstand the toughest of weather conditions and heavy foot traffic, making it ideal for a wide range of outdoor locations. With its sleek and modern design, it's sure to enhance the appearance of any facility.
Not only does our swing barrier turnstile ensure maximum security at all times, but it also provides a user-friendly interface that allows for quick and easy access. With adjustable swing arms, it accommodates various users and can be customized to fit your specific needs.
Plus, its low power consumption and reliable performance make it a cost-effective solution for any business or organization looking to enhance their access control system.
At our company, we pride ourselves on delivering innovative and top-quality products to our valued customers. With our outdoor swing barrier turnstile, you can rest assured that you're making a smart investment in your security and convenience.
Upgrade your access control system today and experience the power of our outdoor swing barrier turnstile – your ultimate solution for secure and seamless entry!
Specification
| Specification | |
| Product Size | 1200*280*960mm |
| Material | SUS 304 stainless steel |
| Thickness | Top:1.2mm+body1.0mm |
| Pass Width | 600mm (≤1200mm optional) |
| Passage Direction | Single directional/Bi-directional |
| Sensor | 4 pairs of active infrared intrusion detector |
| Throughput Rate | 30p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 6.25A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Mechanism | Brushless Anti-collision Integrated Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Indication | LED direction indication |
| Acoustic Alarm | Buzzer Alarm |
Functionality
1. When the swing barrier gate turnstile is turned on, it performs a malfunction self-check and sends an alarm reminder if it discovers a problem.
2, The control panel of the swing barrier gate allows you to configure its operating mode.
3. The gate barrier will open when it detects a fire alarm or a power outage and it has a fire protection port to receive signals from your fire protection devices.
4. When the power is turned on, the gate barriers automatically close, and when the power is turned off, they open.
5 If people don't pass through in the allotted time—which is by default six seconds—the pass right will be terminated (0-60s adjustable).
6, The gate is also compatible with biometric, e-ticket, consumption, and access control systems etc.
7, Direction indication LED is installed on top of this turnstile to give an instinct indication of the gate accessing status.
8, There are two types of flow controls -- single direction access and dual direction access can be applied
9, The gate has protection mechanism. To prevent harming both people and the gate itself, the gate will reopen if the turnstile arms come into contact with something as they are ready to close.
10, The gate also features "Anti-Collision" technology. If something strikes the gate too firmly, the driving motor will stop and attempt to protect the gate from the impact's damage.
Projects
Customizing is welcomed
We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always get in touch with our sales team.
