Place of Origin:
China
Brand Name:
HPT
Certification:
CE； FCC; ISO
Model Number:
AG-PX31122802
Contact Us

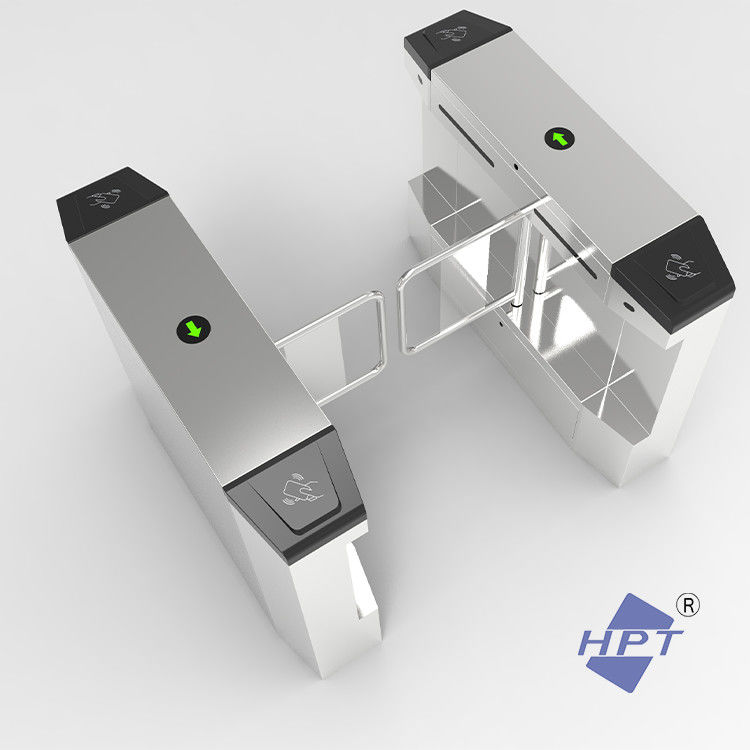

SUS 304 Swing Barrier Turnstile, 1200mm Pass Width, MCBF 5M Motor
AG-PX31122802 swing barrier turnstile combines sleek and modern design with top-notch technology to provide you with a reliable and stylish access control solution. Its swing arm mechanism provides a smooth and comfortable passage for your guests while ensuring only authorized personnel can access your premises.
With its robust construction and durable materials, our swing barrier turnstile is designed to withstand heavy usage and adverse weather conditions. It is easy to install, maintain, and operate, making it an ideal choice for busy entrances with high traffic flow.
Equipped with state-of-the-art biometric authentication technology, our swing barrier turnstile provides accurate identification and secure access control. It supports various authentication methods, including fingerprint, face recognition, and RFID cards, to ensure your premises remain secure at all times.
Get ready to elevate your entrance experience with our swing barrier turnstile today! Contact us to learn more about our product and request a quote.
Specification
| Specification | |
| Product Size | 1200*280*960mm |
| Material | SUS 304 stainless steel |
| Thickness | Top:1.2mm+body1.0mm |
| Pass Width | 600mm (≤1200mm optional) |
| Passage Direction | Single directional/Bi-directional |
| Sensor | 4 pairs of active infrared intrusion detector |
| Throughput Rate | 30p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 6.25A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Mechanism | Brushless Anti-collision Integrated Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Indication | LED direction indication |
| Acoustic Alarm | Buzzer Alarm |
Functionality
1. When the swing barrier gate turnstile is turned on, it performs a malfunction self-check and sends an alarm reminder if it discovers a problem.
2, The control panel of the swing barrier gate allows you to configure its operating mode.
3. The gate barrier will open when it detects a fire alarm or a power outage and it has a fire protection port to receive signals from your fire protection devices.
4. When the power is turned on, the gate barriers automatically close, and when the power is turned off, they open.
5 If people don't pass through in the allotted time—which is by default six seconds—the pass right will be terminated (0-60s adjustable).
6, The gate is also compatible with biometric, e-ticket, consumption, and access control systems etc.
7, Direction indication LED is installed on top of this turnstile to give an instinct indication of the gate accessing status.
8, There are two types of flow controls -- single direction access and dual direction access can be applied
9, The gate has protection mechanism. To prevent harming both people and the gate itself, the gate will reopen if the turnstile arms come into contact with something as they are ready to close.
10, The gate also features "Anti-Collision" technology. If something strikes the gate too firmly, the driving motor will stop and attempt to protect the gate from the impact's damage.
Projects
Customizing is welcomed
We may also alter the gate's settings or design to suit various situations in order to make it more suitable for your projects. You can always get in touch with our sales team.
