Security Optical Turnstile gate

Place of Origin China
Brand Name HPT
Certification CE; FCC; ISO
Model Number AG-TX38152502

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Optical Swing Turnstile Product Size 1200*250*1050mm
Thickness 1.2mm Passage Width 600mm
Throughput Rate 20~25p/m Material SPCC
High Light

Security Optical Turnstile

,

1.2mm Optical Turnstile Gate

,

SPCC Optical Barrier Turnstiles

Leave a Message
Product Description

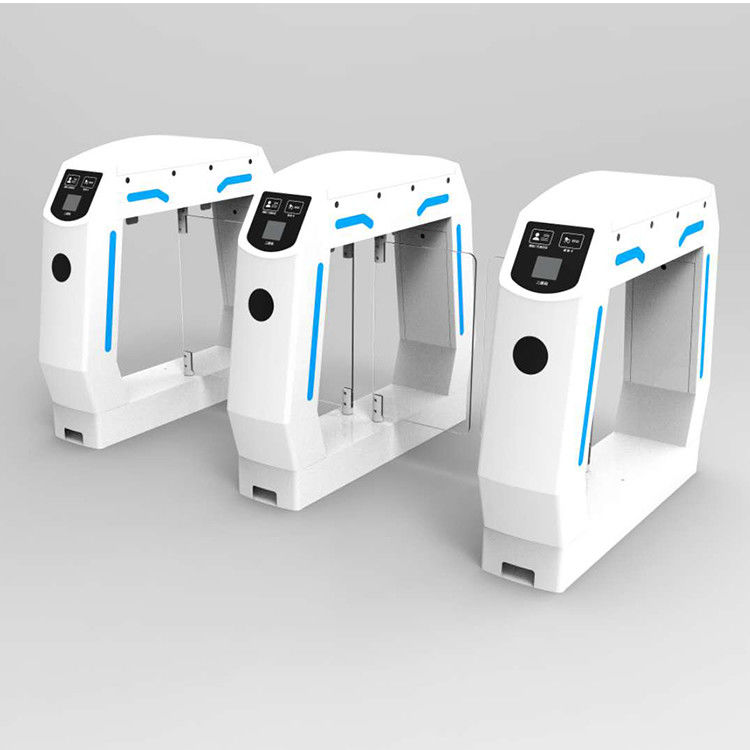

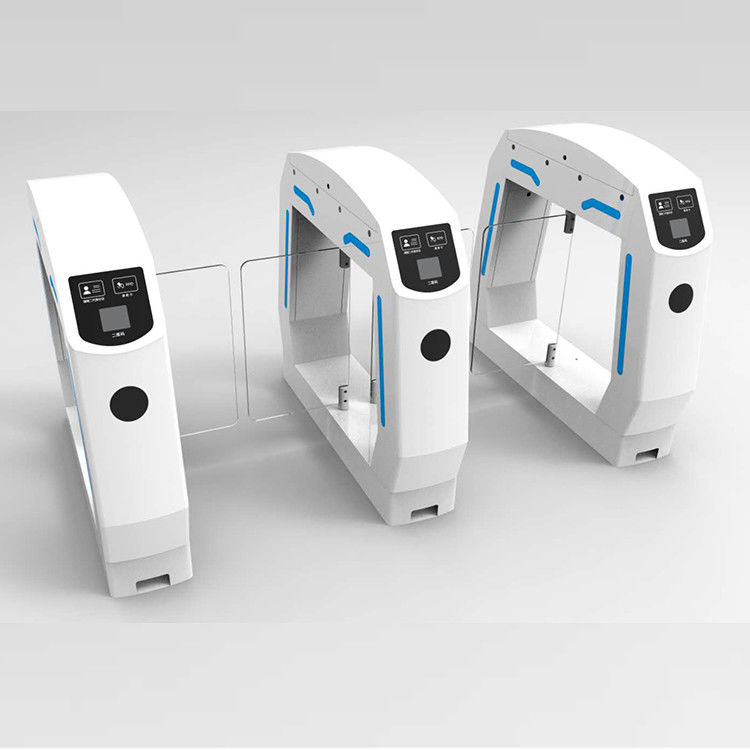

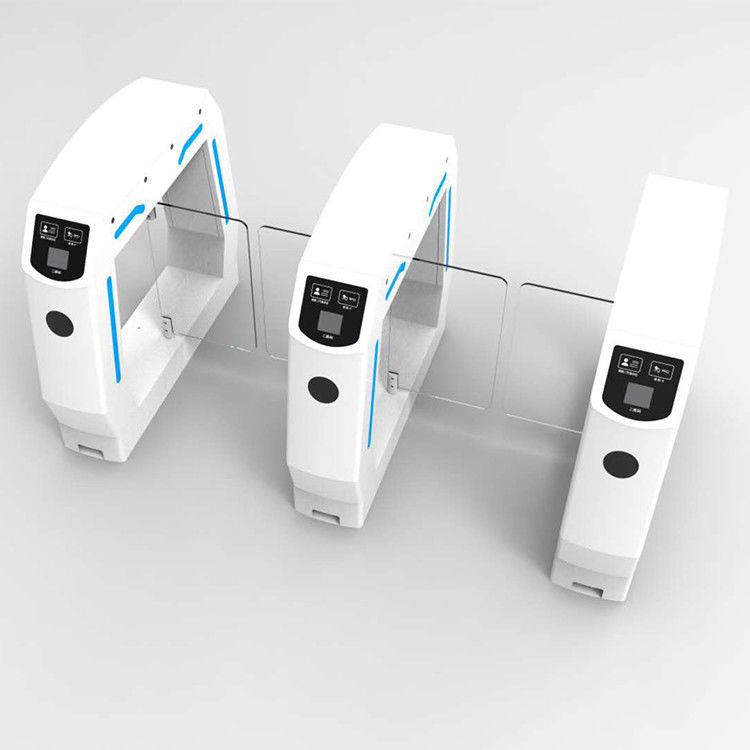

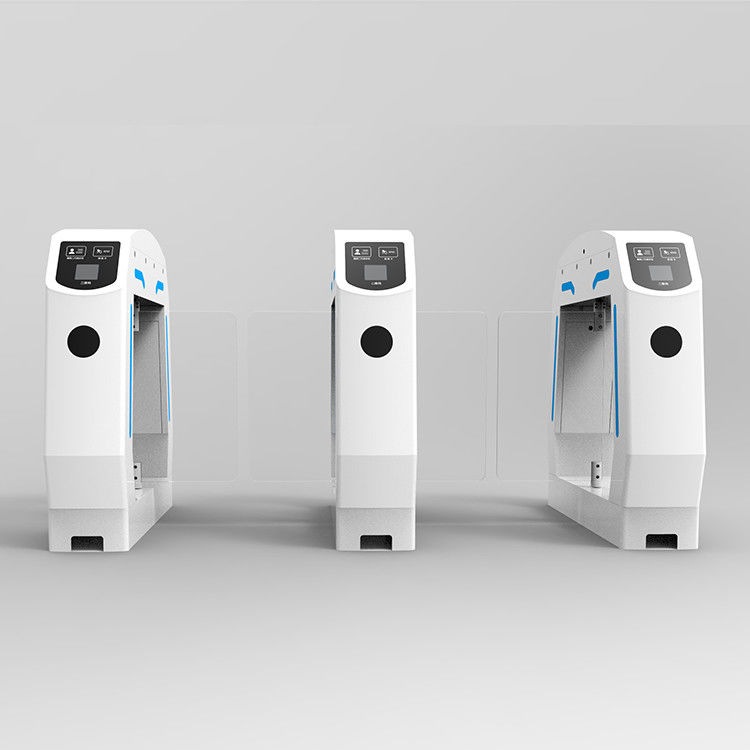

AG-TX38152502 Stainless Steel Turnstile Barrier Swing Gate Security Turnstile System



HPT AG-TX38152502 is a special and beautiful design often be used in different occasions where require high end swing barrier turnstile gates. It has a high-tech appearance and sturdy structure. In the front surface of the gate, there is a distinct direction indication LED to guide people the entry direction and the status. The standard color of this gate is white and but various color options are available for customization to make it more suitable for different projects. The gate applies brushless DC motor whose MCBF reaches 5 Million times and more. All critical electronic components were also from top suppliers of this industry to make sure every part of this gate survive long to provide customer better experience. It is more than a chic design, it is a secure and useful guardian of the entrance.



Security Optical Turnstile gate 0

Datasheet

Specification
Product Size 1200*250*1050mm
Material SPCC
Thickness 1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm
Sensor 4 pairs of active infrared intrusion detector
Reaction Time 0.2S
Throughput Rate 20~25p/m
Working Temperature ·-20~+70
Driving Voltage DC24V
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
Back up power Supercapacitor(12V/3A)



Security Optical Turnstile gate 1



Functionality

1. Upon activation, this swing barrier gate conducts a fault self-check and, if any issues are discovered, sounds a warning siren. The turnstile will automatically open and close when the electricity is turned on and off.



2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.



3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.



4, The gate has a high-luminance LED accessibility indicator.



5, There is an audible and visible alert on this swing barrier gate turnstile. The LED is on when the gate is in standby mode.



6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.

7, The swing barrier gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.



Projects

Security Optical Turnstile gate 2



Customization Available

In order to make our gate more appropriate for your projects, we may also change the gate's settings or design to fit various circumstances. Contacting our sales team is always an option.
