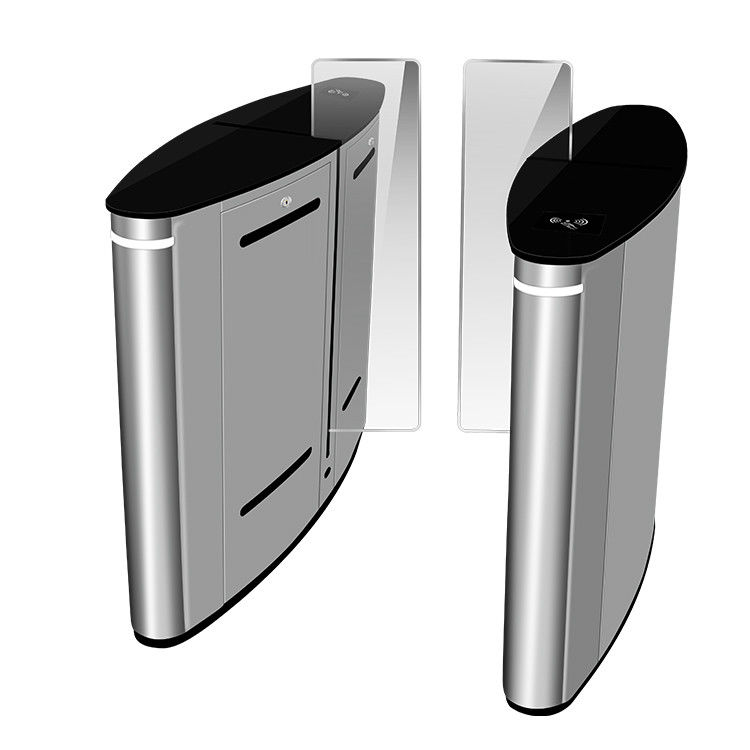

AG-HX56143302 Automatic Systems Turnstiles Glass Turnstile With Sliding Baffle
Product Description
Introducing the latest innovation in access control technology - AG-HX56143302 sliding barrier gate. Our turnstile product is designed to provide an efficient and seamless way of controlling access to restricted areas, while enhancing the overall security of your premises.
- Smart technology: Turnstile is equipped with the latest smart technology, enabling you to monitor and control access to restricted areas remotely.
- Customizable configurations: Our turnstile product is highly customizable, allowing you to choose from a range of configurations to suit your specific access control requirements.
- Efficient and quick access: With Turnstile, you can be sure of quick and efficient access control, reducing waiting times and enhancing the overall user experience.
- Enhanced security: The turnstile is designed with the latest security features, including facial recognition and biometric readers, to ensure only authorized personnel are granted access to restricted areas.
- Durable and reliable: Our turnstile product is built to last, even in high traffic areas, ensuring long-term reliability and minimal maintenance.
With our AG-HX56143302 sliding gate turnstile, you can be sure of a smarter, more efficient, and secure way of managing access control to your premises. Invest in our sliding gate turnstile today and experience the benefits of our cutting-edge access control solution.
Datasheet
| Specification | |
| Product Size | 1400*330*980mm |
| Material | SUS 304 Stainless Steel |
| Thickness | 1.2mm |
| Passage Direction | Single directional/Bi-directional |
| Passage Width | 600mm |
| Sensor | 4 pairs of active infrared intrusion detector |
| Reaction Time | 0.2S |
| Throughput Rate | 20~25p/m |
| Working Temperature | ·-20~+70℃ |
| Driving Voltage | DC24V |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Indication | LED direction indication |
| Acoustic Alarm | Buzzer Alarm |
| Back up power | Supercapacitor(12V/3A) |
Functionality
1. Upon activation, this sliding gate conducts a fault self-check and, if any issues are discovered, sounds a warning siren. The turnstile will automatically open and close when the electricity is turned on and off.
2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.
3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.
4, The gate has a high-luminance LED accessibility indicator.
5, There is an audible and visible alert on this sliding gate turnstile. The LED is on when the gate is in standby mode.
6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.
7, The sliding gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.
Projects
Customization Available
In order to make our gate more appropriate for your projects, we may also change the gate's settings or design to fit various circumstances. Contacting our sales team is always an option.
