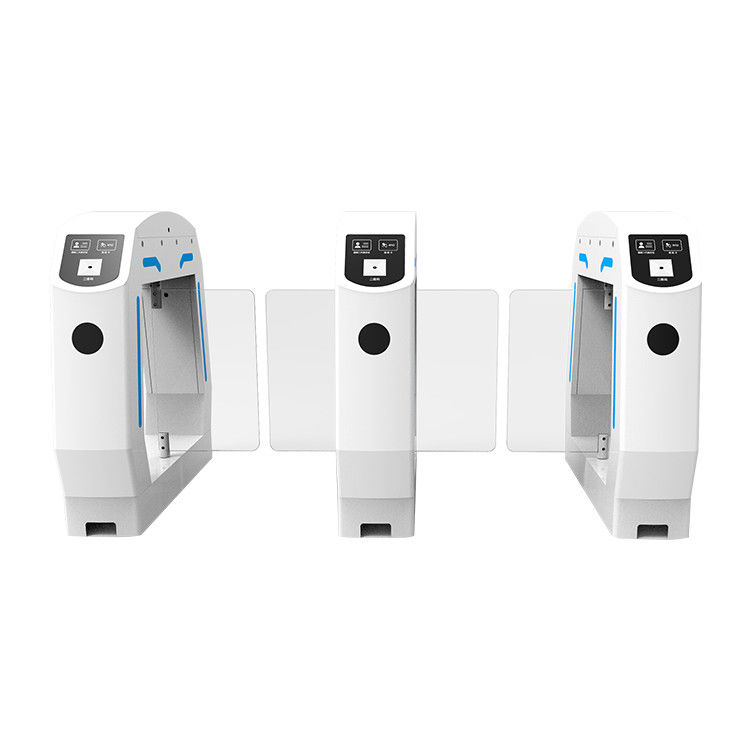

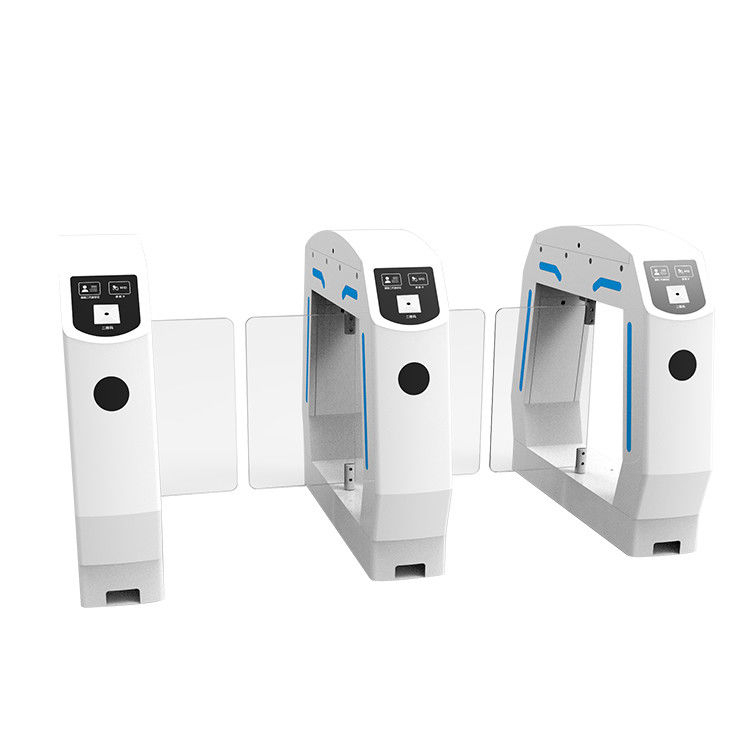

Unique Design Acrylic Glass Swing Turnstile Gate 1200*250*1050mm

Unique Design Acrylic Glass Swing Turnstile Gate 1200*250*1050mm

Glass Swing Gate Turnstile

Glass Swing Turnstile Gate

Acrylic Glass Swing Turnstile

Place of Origin:

China

Brand Name:

HPT

Certification:

CE; FCC; ISO

Model Number:

AG-TX38152502

Contact Us

Request A Quote
Product Details
Name:
Glass Swing Gate
Product Size:
1200*250*1050mm
Material:
SPCC
Thickness:
1.2mm
Passage Direction:
Single Directional/Bi-directional
Passage Width:
600mm
Payment & Shipping Terms
Product Description

AG-TX38152502 Unique Design Optical Turnstile Swing Barrier Gate Turnstile

Product Description

AG-TX38152502 swing barrier gates are essential access control devices that are widely used in various indoor and outdoor settings such as universities, office buildings, factories, tourist attractions, and public transportation systems. These gates are designed to prevent unauthorized entry or exit and to ensure the security and safety of people and property.



The Indoor and outdoor swing barrier gates offer a versatile and reliable solution for controlling pedestrian traffic flow in different environments. The gates are made of durable and high-quality materials such as stainless steel, acrylic glass, and SPCC, to withstand weathering and ensure long-term use.



It is an outdoor swing barrier gates provide additional security features such as waterproof and dustproof protection, tamper-proof screws, and anti-corrosion coatings. These gates are perfect for use in outdoor settings such as parking lots, amusement parks, and stadiums.



It is also an indoor swing barrier gates are designed to offer a sleek and minimalist appearance, blending in with the surrounding décor, and are perfect for use in upscale environments such as hotels, museums, and shopping centers. They offer a wide range of access control options such as card readers, facial recognition, and biometric fingerprints.



The swing barrier gates are easy to install and operate, and they offer a smooth and quiet operation that ensures pedestrian safety and convenience. They can be used in conjunction with various access control systems and are compatible with different access controll board for easy integration and management.



In conclusion, indoor/outdoor swing barrier gates offer a reliable and cost-effective solution for controlling pedestrian traffic flow and ensuring security and safety in different settings. Their durability, versatility, and ease of use make them an ideal choice for businesses and organizations seeking to manage access to their premises.

Unique Design Acrylic Glass Swing Turnstile Gate 1200*250*1050mm 0

Datasheet

Specification
Product Size 1200*250*1050mm
Material SPCC
Thickness 1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm
Sensor 4 pairs of active infrared intrusion detector
Reaction Time 0.2S
Throughput Rate 20~25p/m
Working Temperature ·-20~+70
Driving Voltage DC24V
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
Back up power Supercapacitor(12V/3A)



Unique Design Acrylic Glass Swing Turnstile Gate 1200*250*1050mm 1



Functionality

1. Upon activation, this swing barrier gate conducts a fault self-check and, if any issues are discovered, sounds a warning siren. The turnstile will automatically open and close when the electricity is turned on and off.



2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.



3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.



4, The gate has a high-luminance LED accessibility indicator.



5, There is an audible and visible alert on this swing barrier gate turnstile. The LED is on when the gate is in standby mode.



6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.

7, The swing barrier gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.



Projects

Unique Design Acrylic Glass Swing Turnstile Gate 1200*250*1050mm 2



Customization Available

In order to make our gate more appropriate for your projects, we may also change the gate's settings or design to fit various circumstances. Contacting our sales team is always an option.
