White Biometric Turnstile , Optical Swing Turnstile For Public Facilities

White Biometric Turnstile , Optical Swing Turnstile For Public Facilities

White Biometric Turnstile

Public Facilities Biometric Turnstile

Optical Swing Turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Optical Swing Turnstile
Product Size:
Passage Width:
Throughput Rate:
Payment & Shipping Terms
Product Description

AG-TX38152502 White Color Biometric Turnstiles Secure Access Control System For Gym

Product Description

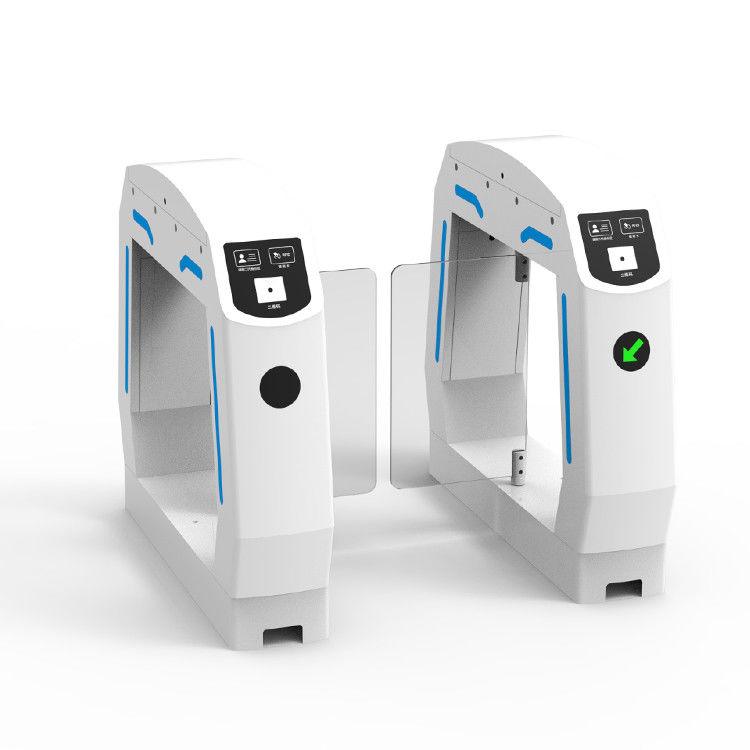

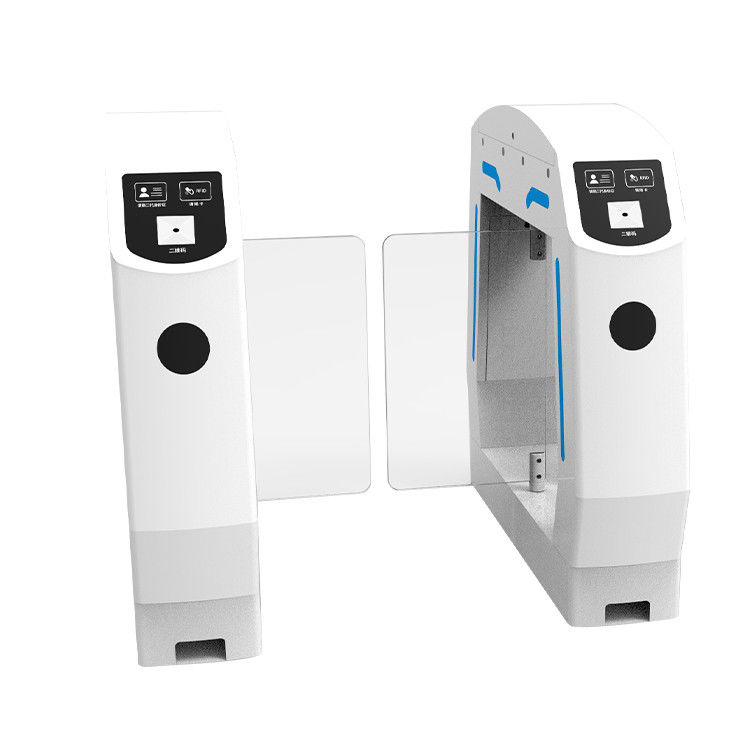

The Optical Swing Barrier Gate AG-TX38152502 is a high-tech and secure access control system that uses optical sensors and advanced software algorithms to monitor and control the entry and exit of people in restricted areas. The product is designed to provide a reliable and efficient solution for controlling the flow of pedestrians in places such as airports, train stations, offices, and other public facilities.


The Optical Swing Barrier Gate is equipped with a robust mechanism that enables it to quickly and accurately identify unauthorized access attempts. The barrier gate operates by analyzing the movement of people and uses advanced software algorithms to determine whether a person is allowed to access a particular area. The optical sensors used in the gate work with infrared technology, which enables the system to monitor a wide range of environmental conditions and provide high levels of accuracy.


One major advantage of the Optical Swing Barrier Gate is its high throughput capacity. The product can handle large volumes of pedestrian traffic without compromising the security of the facility. The gate's optical sensors can detect multiple people in a short amount of time, allowing for efficient and seamless traffic flow.


Another key feature of the Optical Swing Barrier Gate is its versatility and adaptability. The product is designed to work in a variety of environments and can be customized to meet the specific needs of the user. The gate can be configured to operate in different modes, including single direction, bi-directional, or restricted access.


In terms of construction, the Optical Swing Barrier Gate is built to last. The gate is made from high-quality materials such as stainless steel and SPCC, and the motor and control system are designed to withstand heavy use and resist wear and tear.


Overall, the Optical Swing Barrier Gate is an advanced and reliable access control system that provides high levels of security and convenience. The product is ideal for use in airports, train stations, office buildings, and other places where preventing unauthorized access is critical. With its high-throughput capacity, customization options, and durable construction, the Optical Swing Barrier Gate is a top-tier solution for controlling pedestrian traffic.


White Biometric Turnstile , Optical Swing Turnstile For Public Facilities 0


Product Size 1200*250*1050mm
Material SPCC
Thickness 1.2mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm
Sensor 4 pairs of active infrared intrusion detector
Reaction Time 0.2S
Throughput Rate 20~25p/m
Working Temperature ·-20~+70
Driving Voltage DC24V
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
Back up power Supercapacitor(12V/3A)


White Biometric Turnstile , Optical Swing Turnstile For Public Facilities 1



1. Upon activation, this swing barrier gate conducts a fault self-check and, if any issues are discovered, sounds a warning siren. The turnstile will automatically open and close when the electricity is turned on and off.


2, Control signals, buttons, or remote controls are available for peripherals to enable control access in either a single way or a dual manner.


3, Pass Authorization Rule: The turnstile arm automatically returns to its initial position once a visitor goes through the swing turnstile gate. The passing authority will be revoked by the system if no access is made within the allotted time.


4, The gate has a high-luminance LED accessibility indicator.


5, There is an audible and visible alert on this swing barrier gate turnstile. The LED is on when the gate is in standby mode.


6, The turnstile gate features a "Anti-Collision" mechanism that disables the driving motor if something impacts the gate too forcefully, preventing damage from collisions.

7, The swing barrier gate system is compatible with It can be connected to a variety of readers, such as fingerprint, RFID, and facial recognition scanners. When a fire alarm or blackout is detected, the gate barrier will automatically open because the motherbroad of the device contains a fire protection port that can receive signals from the fire protection equipment.



White Biometric Turnstile , Optical Swing Turnstile For Public Facilities 2


Customization Available

In order to make our gate more appropriate for your projects, we may also change the gate's settings or design to fit various circumstances. Contacting our sales team is always an option.
