Indoor Pedestrian Swing Gate

Place of Origin China
Brand Name HPT
Certification CE; FCC; ISO
Model Number AG-PX36121802

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material SUS304 Stainless Steel Type Optical Gate
Size 1200*185*980mm Net Weight Single Core 38kg/dual Core 44 Kg
Product Name Small Swing Barrier Gate
High Light

Indoor Pedestrian Swing Gate


Optical Pedestrian Swing Gate

Leave a Message
Product Description

AG-PX36121802 Small Swing Barrier Gate Pedestrian Management Optical Swing Barrier


AG-PX36121802 is the best cost performance swing barrier gate HPT developed. It works for many occasions like fitness center, measuem, statium, business building, residential community or even outdoor environment like construction site or park etc. Though it has very large sales volume and good price, HPT still applies the best electronic components for it. Long servive life IR sensors from top Taiwan supplier, MCBF 5Million brushless DC driving motor. All electronic components were protected by a waterproof case internal of the turnstile. All these measures make this optical swing barrier gate suitable for both indoor and outdoor.

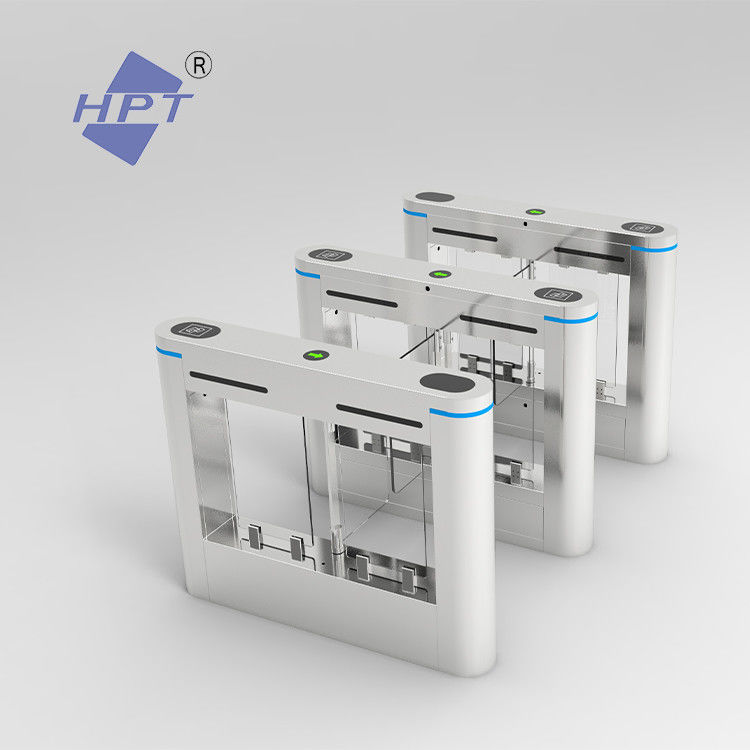

Indoor Pedestrian Swing Gate 0

Please find product video in youtube link:


Product Size 1200*185*980mm
Material SUS 304 stainless steel
Thickness 1.2/1.5mm+1.0mm
Passage Direction Single directional/Bi-directional
Passage Width 600mm
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 25~30p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Brushless Anti-collision Integrated Mechanism
Back up power Supercapacitor(12V/3A)
Indication LED direction indication
Acoustic Alarm Buzzer Alarm
LED Triple Color LED

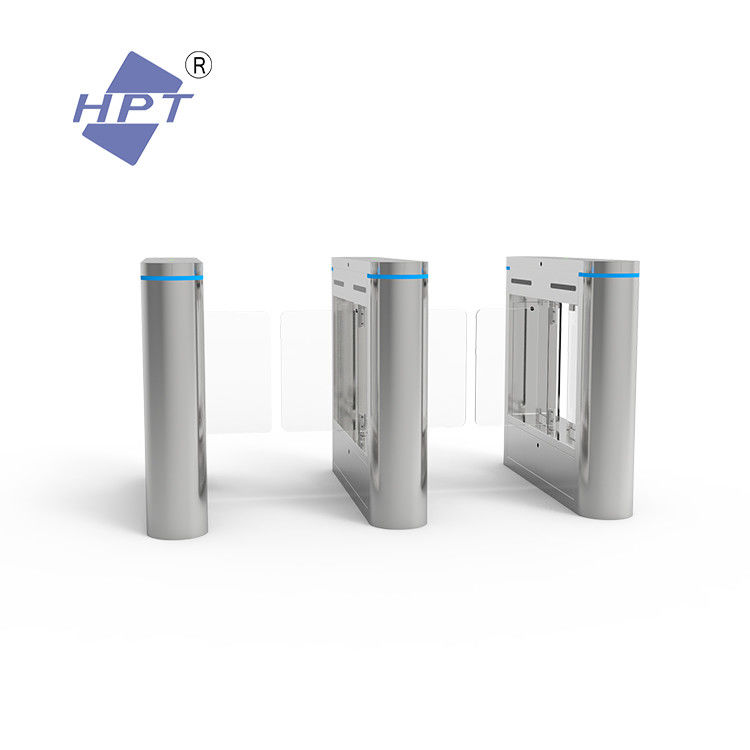

Indoor Pedestrian Swing Gate 1


1, When this swing barrier gate is turned on, it performs a fault self-check and sounds a warning siren if it finds any problems. When the electricity is turned off and on, the turnstile will automatically open and close.

2, Control signal or button or remote control of the peripherals is available to achieve control accessing in single direction/bi direction.

3, Pass Authorization Rule: After visitor passes through the swing turnstile gate, the turstile arm automatically returns to its original position. If no access is made within the specified time, the system will cancel the passing authority.

4, The gate is equipped with high brightness LED accessing indicator

5, This swing barrier gate turnstile has audible and visual alarm. When the gate is in the standby state, the LED is blue; when people pass through the gate, it is green; and when people try to enter the gate passage without permission, the LED turns red and the buzzer in the gate beeps to alert people to the authorization violation.

6, The turnstile gate has a "Anti-Collision" feature that prevents damage from collisions by stopping the driving motor if something strikes the gate too hard.

7, The swing barrier gate system can be connected with It can be connected to many readers, including facial recognition, RFID, and fingerprint scanners etc. Its motherbroad has a fire protection port that can receive signals from the fire protection equipment, and when a fire alarm or blackout is detected, the gate barrier will automatically open.

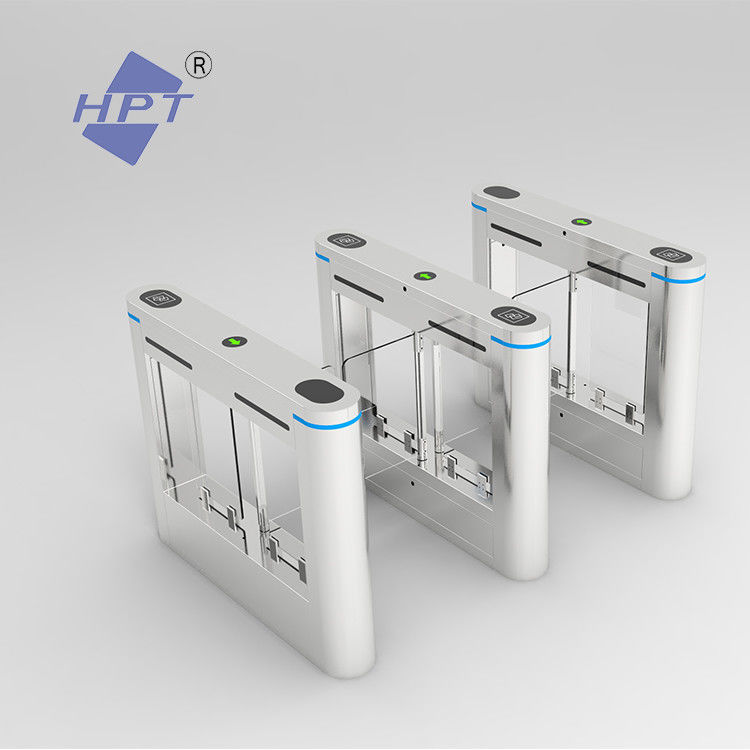

Indoor Pedestrian Swing Gate 2

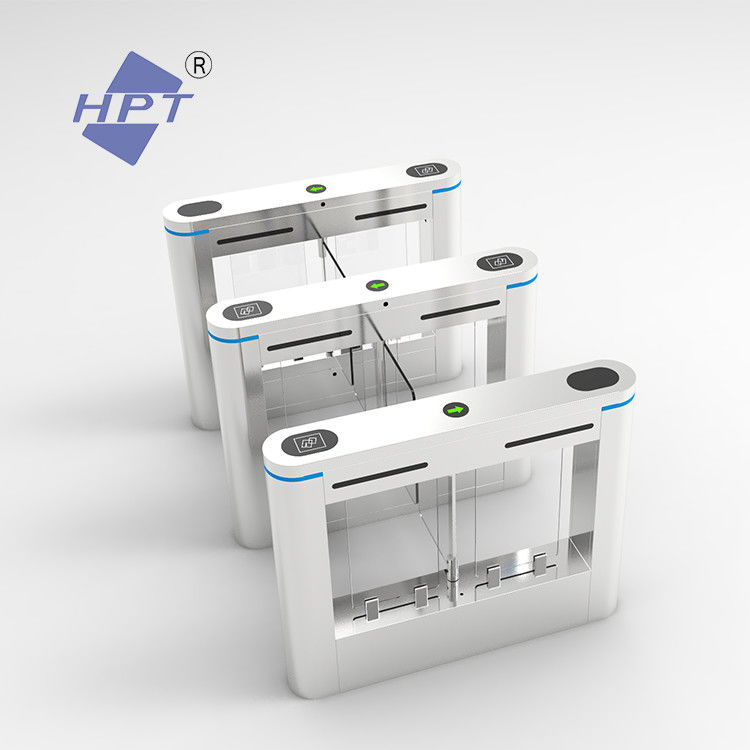

Indoor Pedestrian Swing Gate 3

Customization Available


In order to make our gate more appropriate for your projects, we may also change the gate's settings or design to fit various circumstances. Contacting our sales team is always an option.
